3.03
EO Genius & EO Hub Installation Guide
© EO Charging 2021 14
3.0
Wiring connections
for EO Genius and
the serial bus.

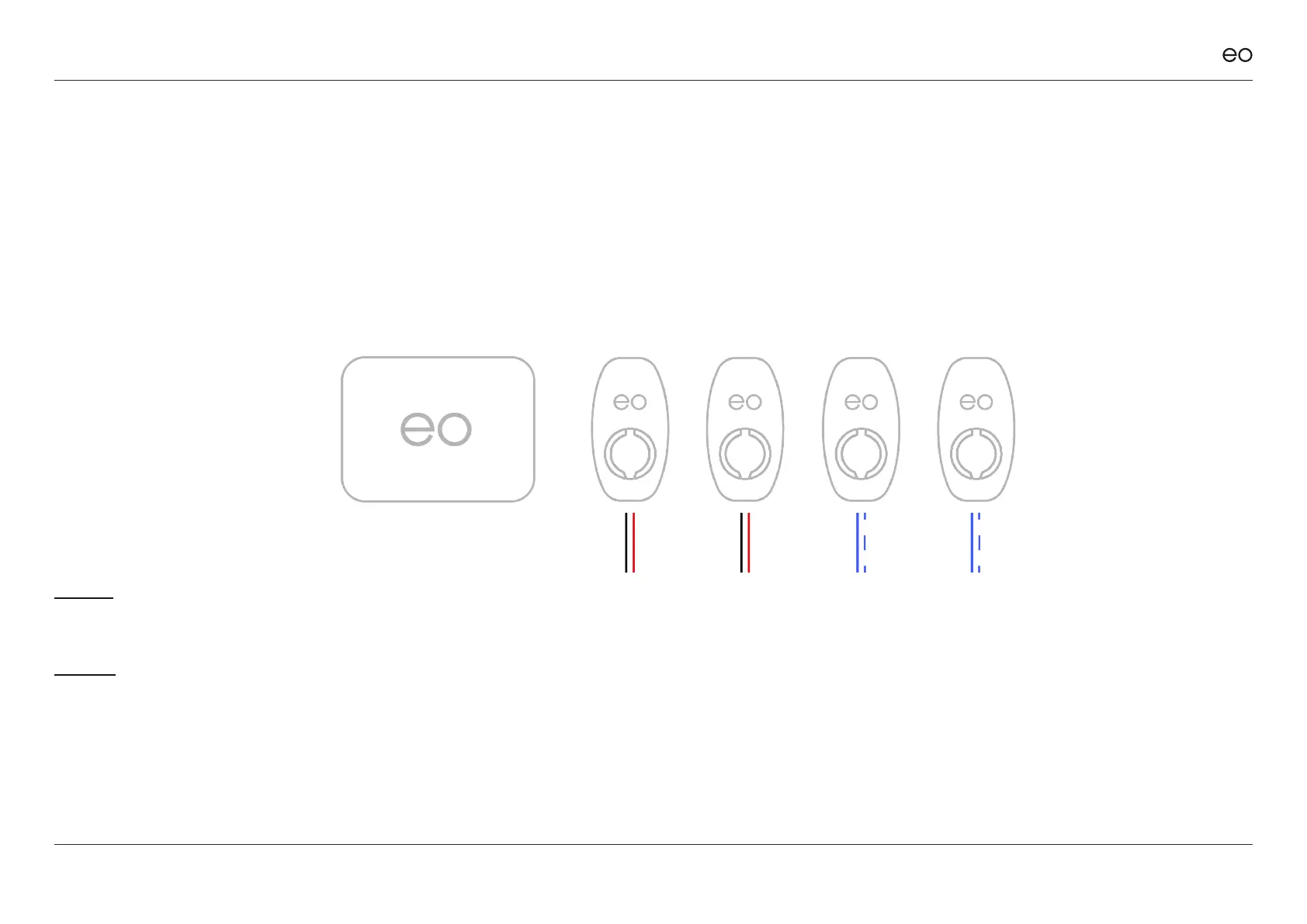

The diagram to the right shows the
Genius charge points and pre-
tted short length of serial cable.
Four core is supplied on earlier
chargers with two core on later
models. Select the appropriate
colours according to your charger
version:
Version 1 - charger cable colours:
1. Black (comms B)
2. Red (comms A)
Version 2 - charger cable colours:
1. White + Blue tracer (comms B)
2. Blue (comms A)
Figure 5
