EO Genius - Daisy-Chaining EO Genius Charge Points

Each Genius charge point
has a short length of cable
protruding from it. This needs
to be connected to the other
stations in a ‘Daisy Chain’ format
to eventually terminate at the
EO Hub.
3.03
EO Genius & EO Hub Installation Guide
© EO Charging 2021 13
3.0

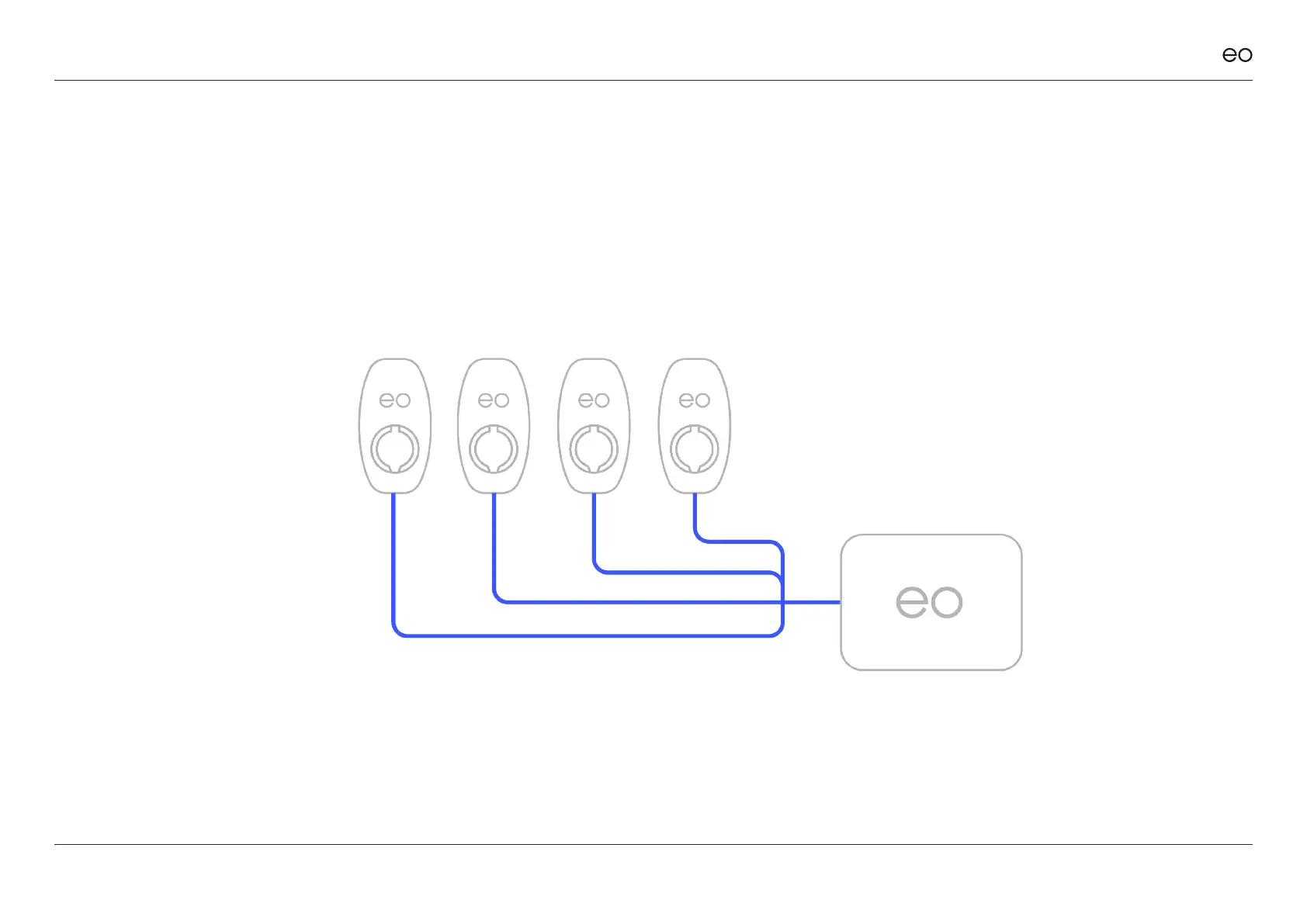

Wiring connections
for EO Genius and
the serial bus.
Figure 4
