With the data bus connection at
charge points it’s time to create
your RS485 connections ‘daisy
chain’ back to the EO Hub. We
recommend Belden 9841 600v as
it carries the best properties for
this application. DO NOT use Cat6
type cable for this application.
Remember to t ferrules where
serial wire has been stripped for
connections.
3.04
EO Genius & EO Hub Installation Guide
© EO Charging 2021 16
3.0

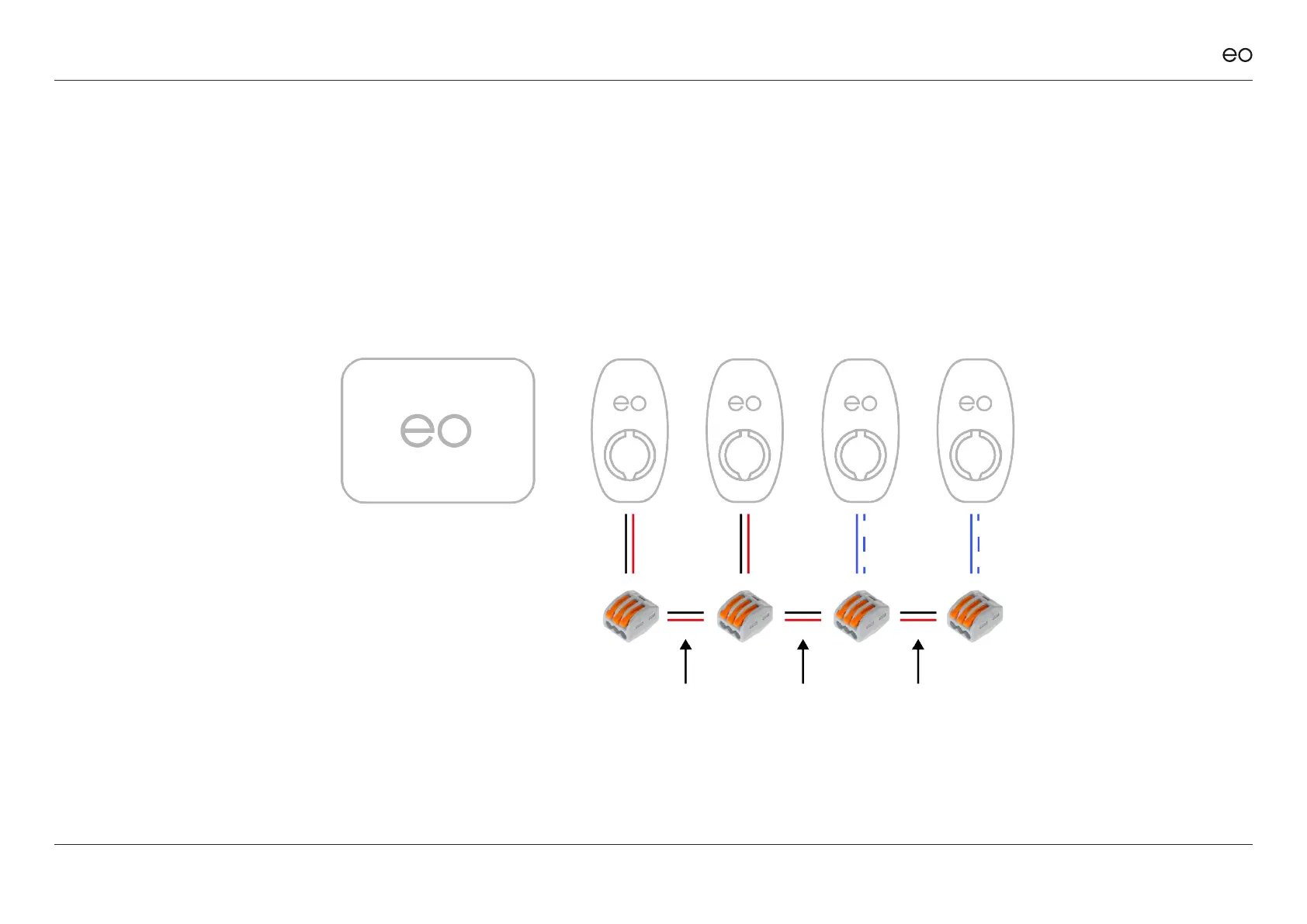

Main Serial Line (Belden 9841)
Wiring connections
for EO Genius and
the serial bus.
Figure 7
To Next Page
