3.08
EO Genius & EO Hub Installation Guide
© EO Charging 2021 19
3.0

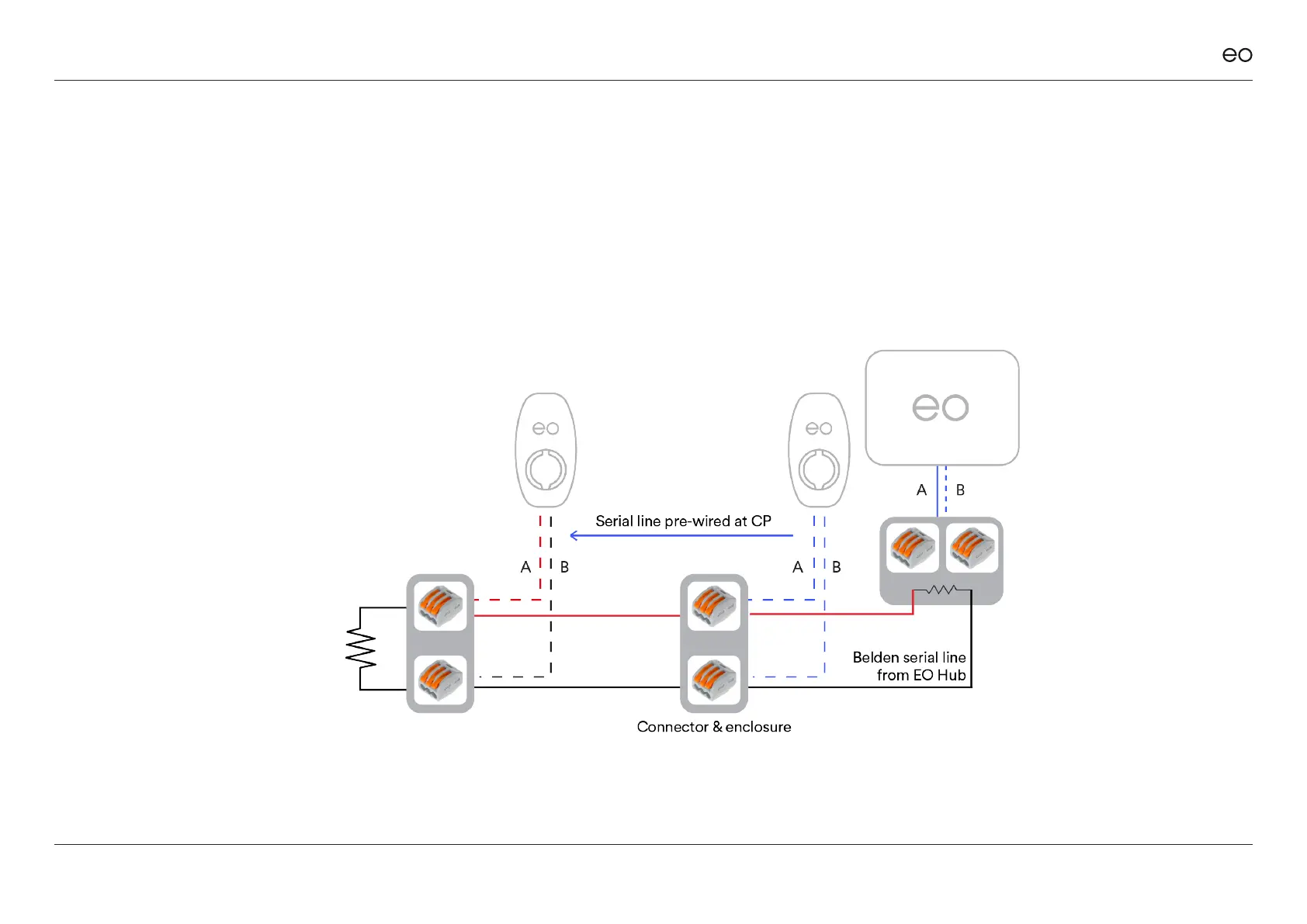

Resistors for the
Serial Bus RS485.
Figure 10
120Ω Resistor
120Ω Resistor
