EO Mini Pro 2 - Single Phase TN Network Wiring

EO Mini Pro 2 Installation & User Guide
© EO Charging 2020
6.2
Wiring Connections.
The following wiring
connections are possible:
6.2.1
Single Phase TN
Networks.

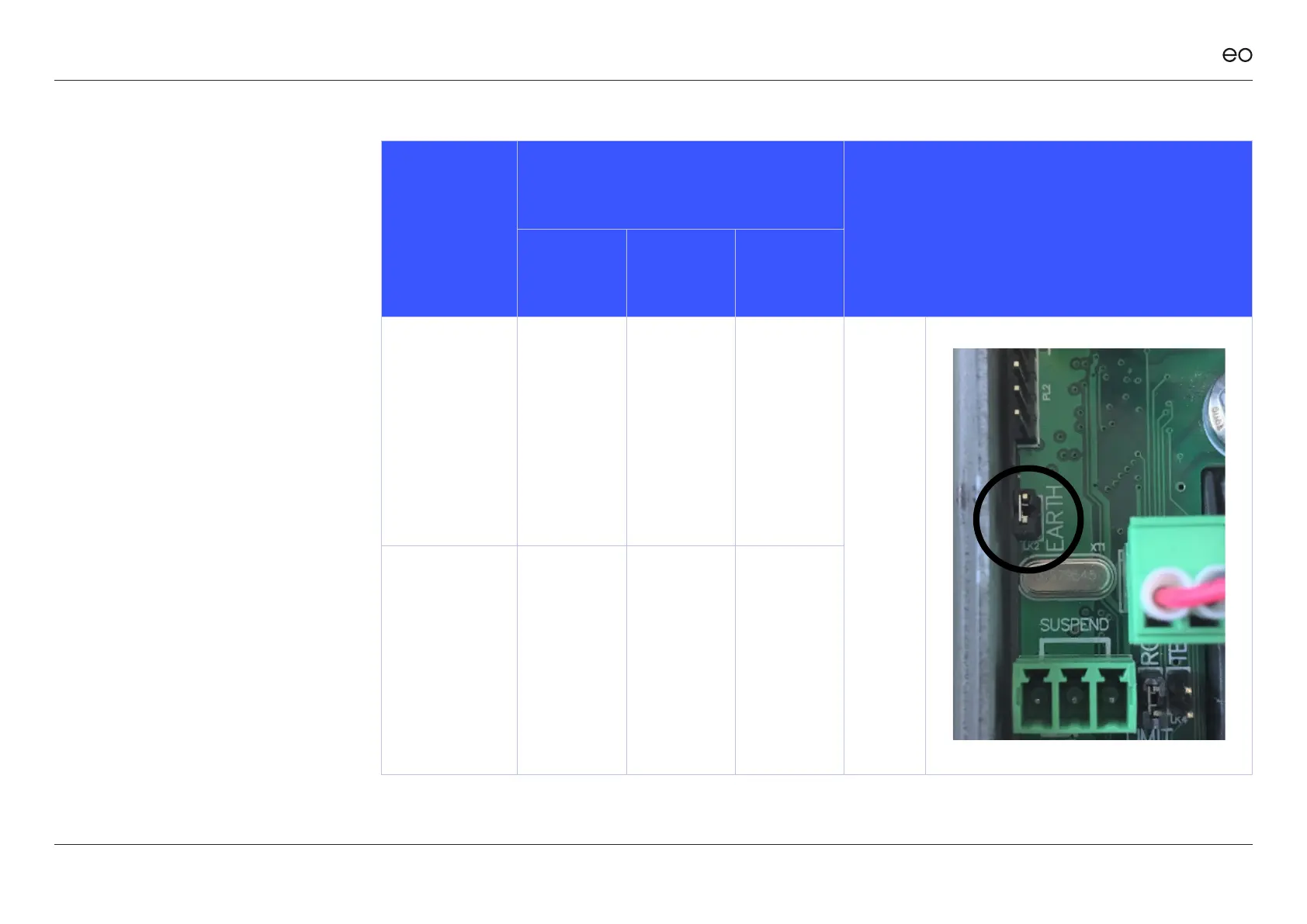

By default the Earth Jumper is
attached which enables the EO
Mini Pro 2 to check that an earth
connection is present before
allowing charging sessions.
Wiring
System
Markings on the Mini Pro 2
Earth Jumper
Live Earth Neutral
TN (220V) L1
PE
(Protective
Earth)
N
ON
TN (110V) L1
PE
(Protective
Earth)
L2
20
