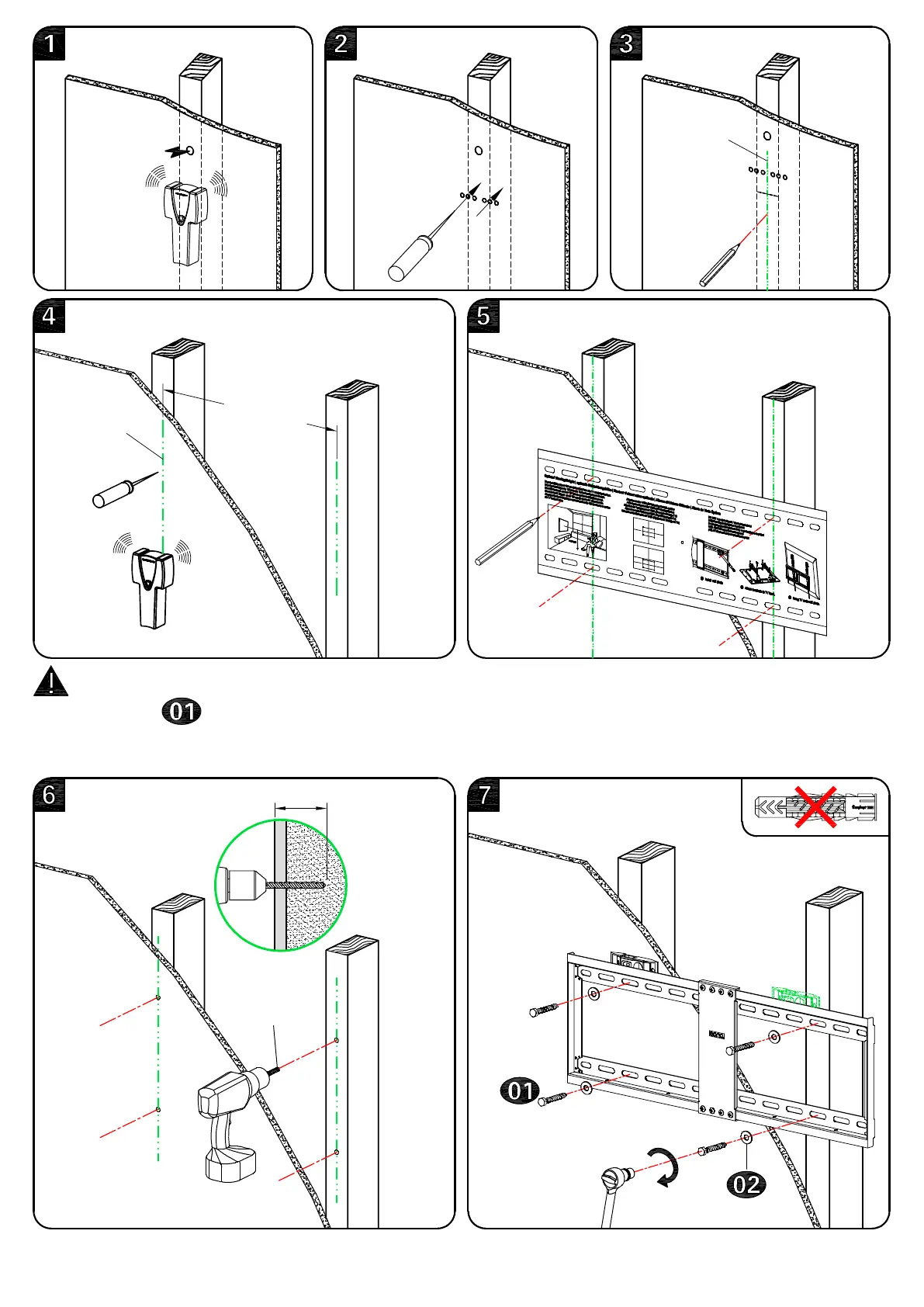

Eono PL2268-LK - Detailed Wood Stud Mounting

O
Centre line
16"(406mm)
7/32"
(5.5mm)
2.5"(64mm)
Go to Step 3 on PAGE 7.
5
Centre line
Again, find another wood stud
CAUTION
:
To avoid potential personal injury or property damage:
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on
to the next step.
Mounting
Template
Level
