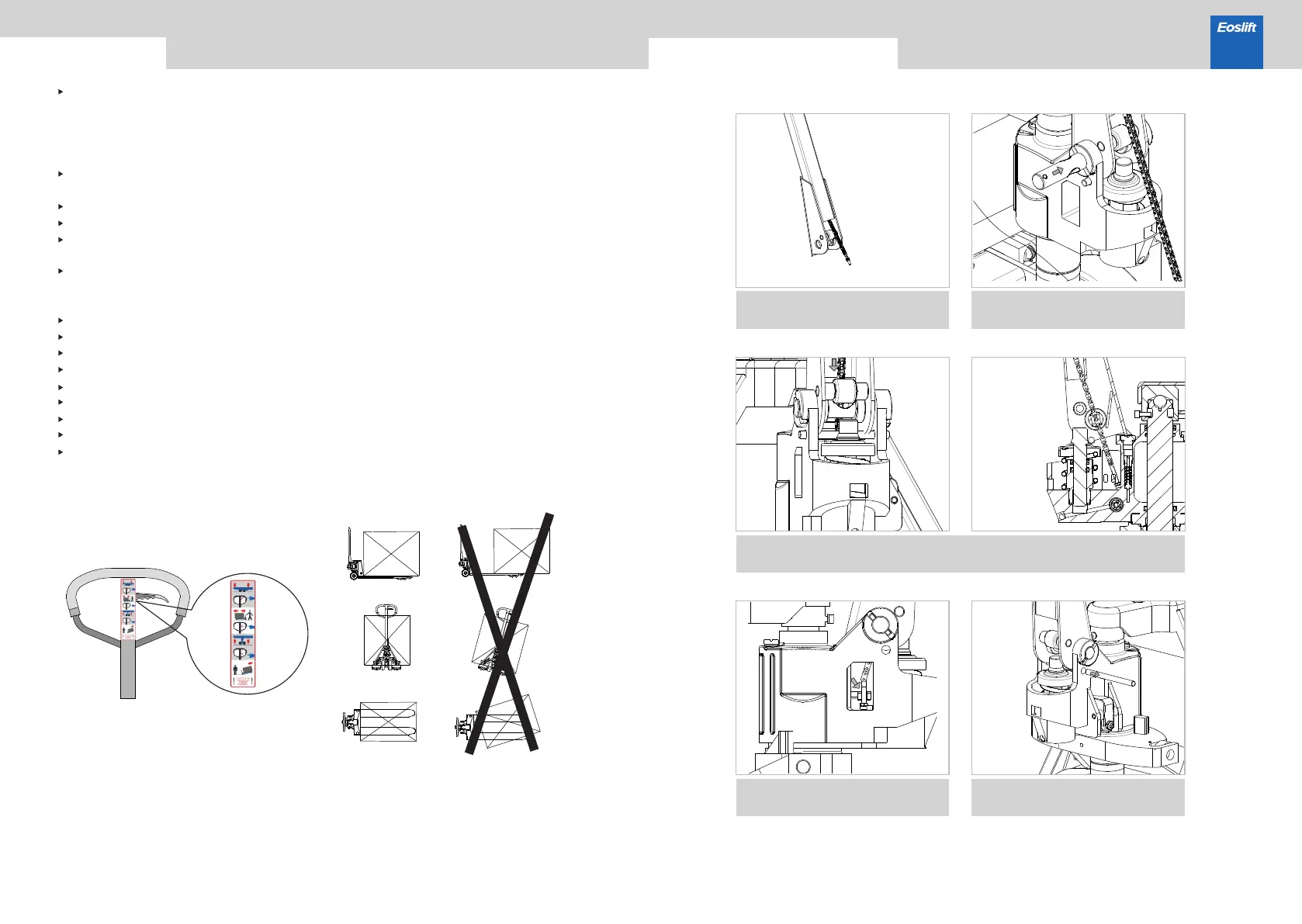

1.Make sure the chain on the handle
is in this position shown in the picture.
2.Push the handle shaft through the
holes, fix it with the spring pin.
3.Put the chain through the hole on the shaft. With the handle at 45º tilt.
4.Fix the chain in the slot of the
unloading plate.
5.Pull the shaft from the hole. Then
the assembly is complete.
Installation of handles
Safety rules
The truck is only applicable to indoor use and the application environment must meet the following conditions:
Free from rainwater or corrosion of harmful gases;
Room temperature of -20°C~+40°C;
Relative ambient humidity <90%;
and Requirements for ground: hard, anti-skid and level without barriers.
Before using the pallet truck, the operator must read the operating instructions and the warning labels on the
truck body carefully.
Do not use this truck on the muddy ground.
Do not operate the pallet truck unless you are fully familiar with it and have been authorized to do so.
Do not operate the pallet truck unless you have carefully checked its condition. Pay special attention to the
wheels, the handle assemblies, the truck frame, the unloading plate, etc.
To pull the truck, always move the finger grip control handle into the middle position. This makes the handle
easier to move and reduces the rebounce of the handle by the small piston. This also preserves the hydraulic
seals and the piston components. A long service life can be expected.
Do not carry or lift passengers.
The operator shall wear safety shoes and gloves for protection.
While the goods are being transported, all people should stay 600mm away from the truck frame.
Do not lift goods in the way as shown in Figure B. Goods should be stacked stably.
Overload is prohibited.
Do not use the truck in a potentially flammable and explosive atmosphere.
Do not use the truck as a vehicle jack.
Do not use the truck during strong wind forces.
Do not use the truck on places insufficiently illuminated.
A B
M Series Hand Pallet Trucks
