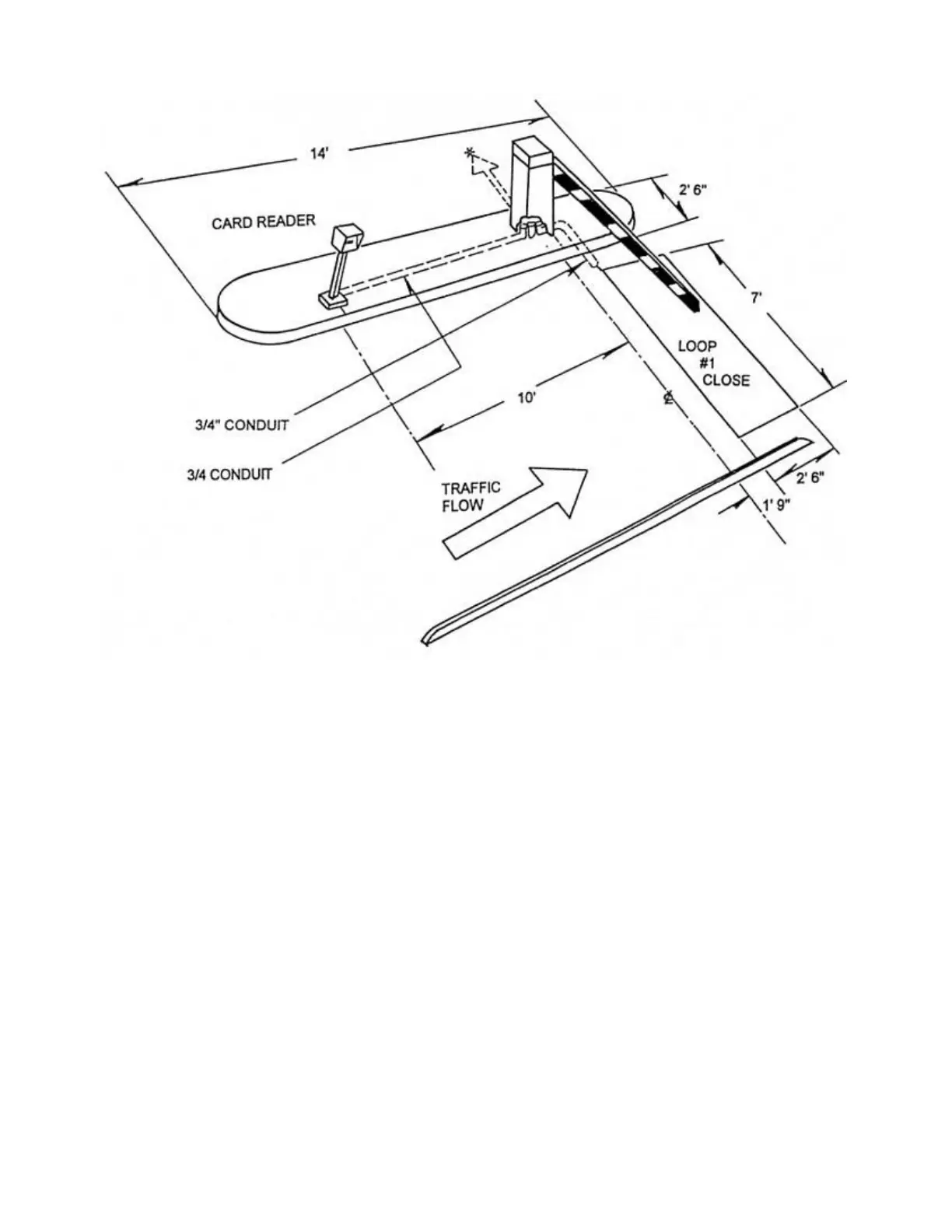

STANDARD SYSTEM #4
SINGLE DIRECTION CARD OR EQUIVALENT ENTRANCE OR EXIT
SYSTEM FUNCTION:
The patron inserts the entry card into the card reader, which causes the gate arm to rise. When
the vehicle leaves loop #1, the gate will return to the down position.
Suggested control board switch setting: 1, 2, 3, 6, 8 = ON
INCOMING POWER: 115 VAC 60 Hz 20 Amps
NOTE: THE LOOP IS CENTERED IN THE LANE
MAKE SURE THERE IS AT LEAST 16 INCHES OF CLEARANCE BETWEEN THE GATE ARM
AND ANY RIGID OBJECTS
