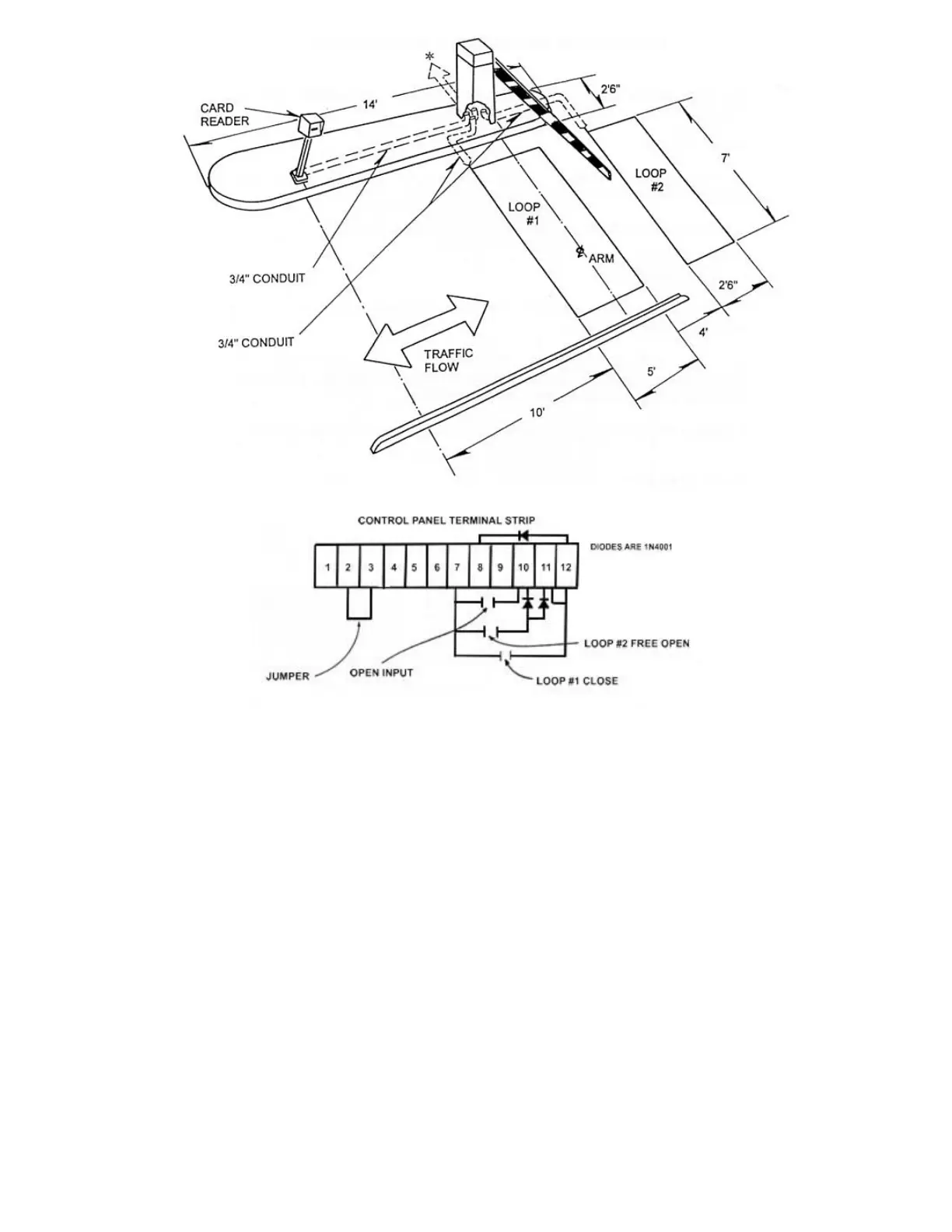

STANDARD SYSTEM #8
DOUBLE DIRECTION CARD OR KEY ENTRANCE/FREE EXIT
SYSTEM FUNCTION:
The patron inserts the entry card into the card reader. This will cause the gate arm to rise,
permitting the vehicle to drive through. When the vehicle leaves loop #2, the gate arm will return
to the down position. When the vehicle approaches from the free side, loop #2 will be activated,
which will raise the gate arm, permitting the vehicle to drive through. As the vehicle leaves loop
#1, the gate will automatically return to the down position
Suggested control board switch setting: 1, 3, 6, 8 = ON
Auxiliary Board in controller is required for this configuration in units manufactured prior to May
2008.
INCOMING POWER: 115 VAC 60 Hz 20 Amps
NOTE: THE LOOP IS CENTERED IN THE LANE
MAKE SURE THERE IS AT LEAST 16 INCHES OF CLEARANCE BETWEEN THE GATE ARM
AND ANY RIGID OBJECTS
