REVERSE OPERATION
In standard installations, the parking gate access door faces away from the lane. If you encounter
an obstacle that prevents access to the door, or if the gate needs to be reversed for a master /
slave application, follow these instructions for gate cabinet reversal.
NOTE: REMOVE GATE ARM AND DISCONNECT MAIN POWER BEFORE ATTEMPTING ANY
ADJUSTMENTS OR MODIFICATIONS.
Remove the motor by removing (4) 5/16” hex nuts.
Remove terminal cover on the back of the motor and swap terminal 1 with terminal 2
(white and green/red wires).
Re-install the motor.
Manually turn the pulley until the gate arm flange turns 180˚.
Rotate limit switch cams and adjust accordingly.
Make all final adjustments and tests before installing the gate arm.

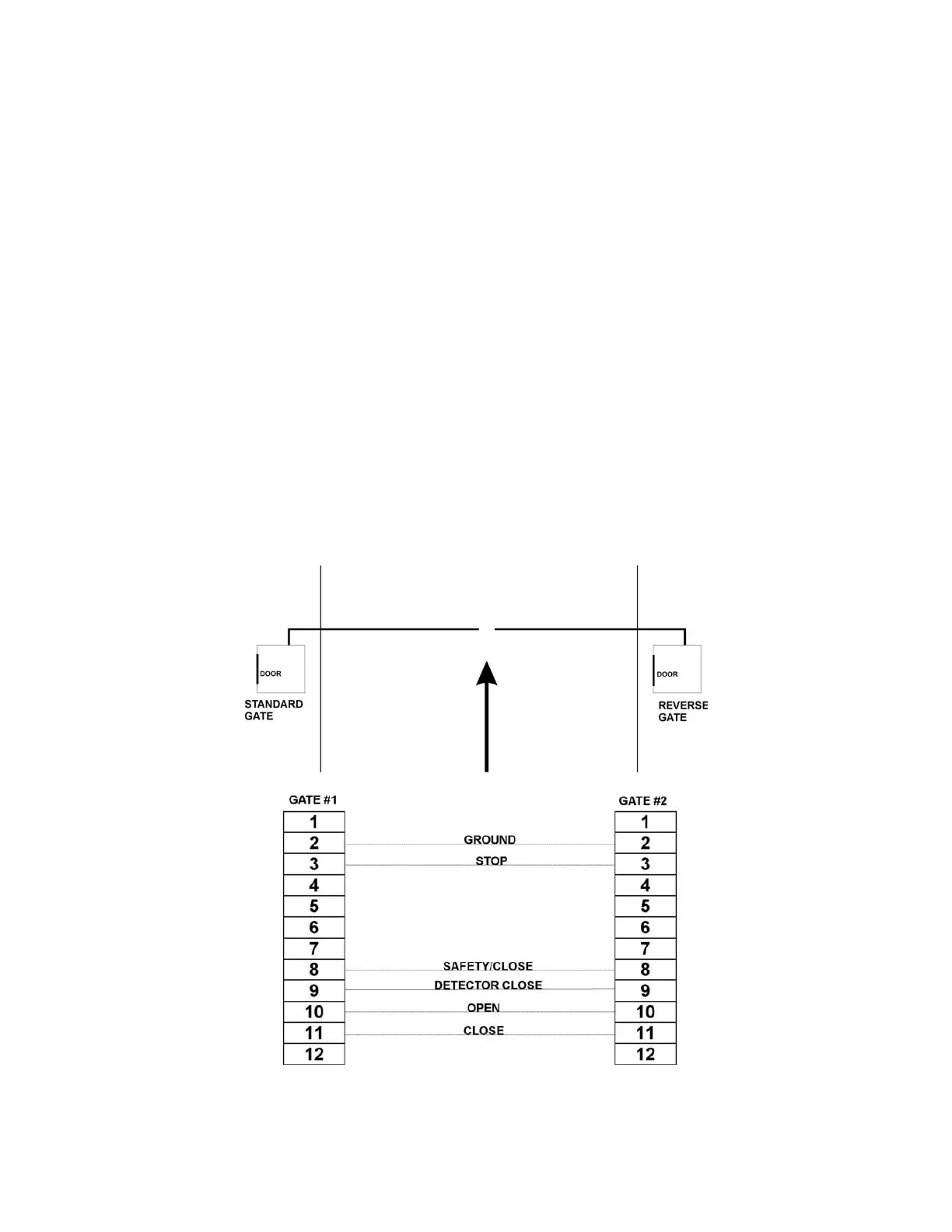

MASTER / SLAVE INSTALLATION
For locations with very wide lanes, two gates can be installed in a master/slave configuration.
Gates are installed on opposite sides of the driveway to operate simultaneously. Use the wiring
diagram below to connect the gates together for simultaneous operation. If timer to close is
required, order model M.S. master/slave pack. (M.S. Pack not required on units manufactured
after May 2008.)
