EPS eSoft Pro - Installation Schematic and Components; 10 L Cabinet Softener Layout; 30 L Cabinet Softener Layout

Schematic

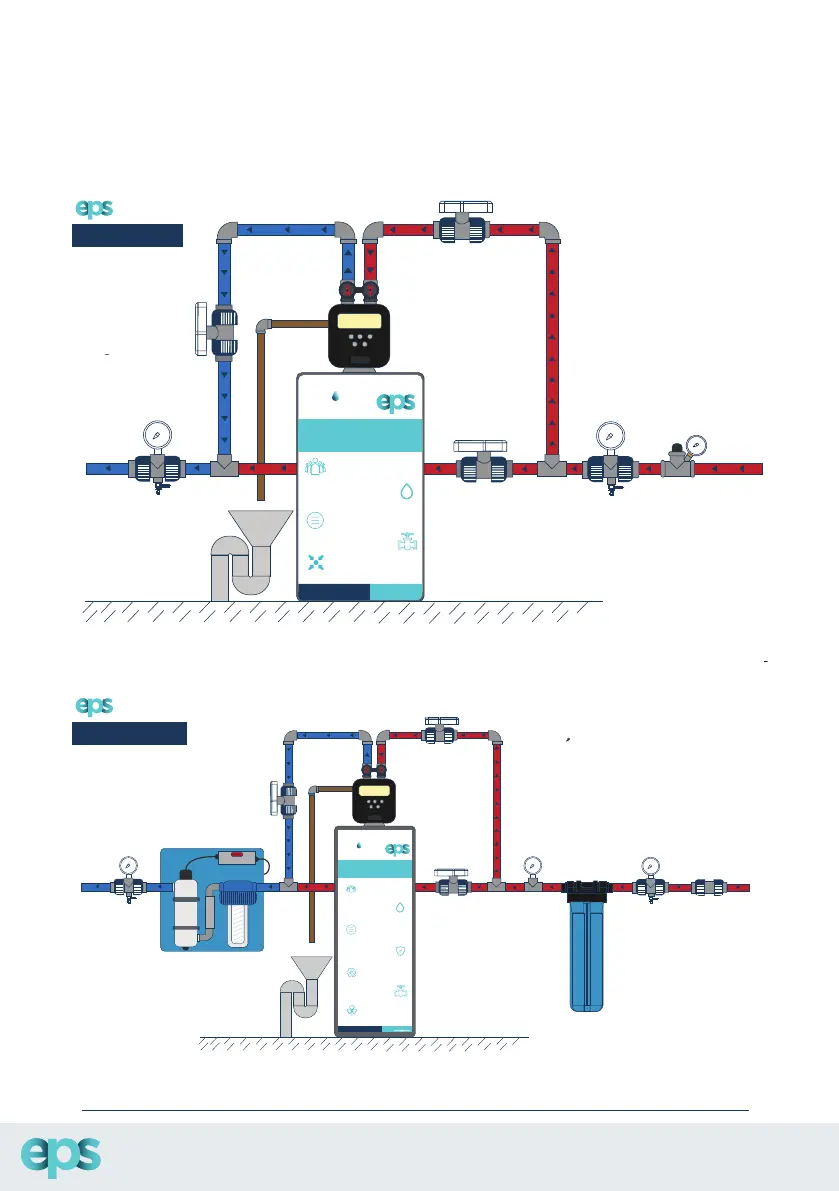

This schematic outlines the best way to check the correct layout and installation of your eSoft water
cabinet.
2
1
Treated
Water
Raw
Water
5
6
3
4
7
Compact Design
Certified Valve
Up to 4 people
Volumetric
Water Softener
Intelligent
Controls
10L Cabinet
Water Softener
by
e
S ft
PRO
1. Pressure Reducing Valve
Raw water sample point /
Inlet pressure
Bypass
Backwash water pipe minimum
¾”
Drain with air gap
Treated water sample point /
Outlet pressure
2.
3.
4.
5.
6.
Recommended extra bypass
7.
assembly for servicing
Pre Filter & eSoft PRO 10L
By EPS
Assembly: Installation:
C
M
Y
CM
MY
CY
CMY
K
