2.2 Product Features

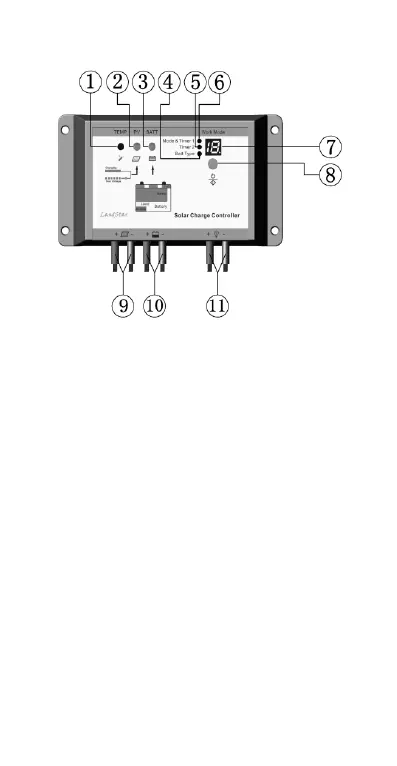

Figure 2-1 Land Star characteristics
1 –Temperature Sensor
Measure ambient temperature and make temperature compensation for
charging and discharging.
2 – Charging status LED indicator
An LED indicator that shows charging status and also indicates when battery
voltage is higher than over voltage disconnec
t v
oltage.
3 – Battery status LED indicator
An LED indicator that shows battery status
4 – Battery type setting indicator
The indicator will be on when select battery type.
5 – Timer 2 setting indicator
The indicator will be on when set timer 2.
6 – Timer 1 setting indicator
The indicator will be on when set timer 1.
7 –LED digital display
Display the load work mode and status
8 –Setting button (in manual mode used for load ON/OFF)
Set load work mode and select battery type.
