Epsolar MT50 - 3 Installation

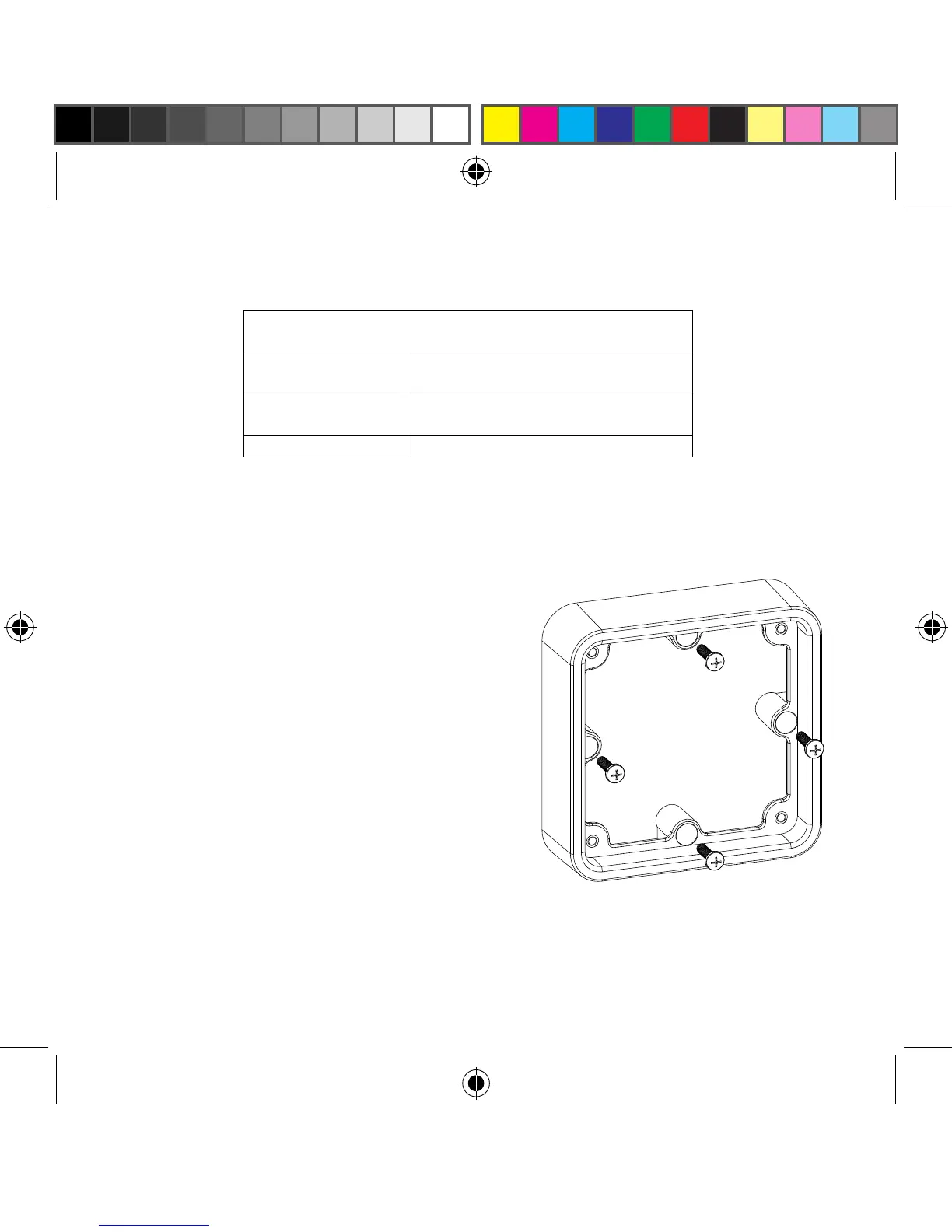

Wall installation steps
Step1: Locate and drill screw holes
based on the Frame Mounting dimension
of the base, and erect the plastic
expansion bolts;
Step 2: Use four ST4.2×32 self-tapping
screws to x the Frame;
Frame Mounting
4
Mechanical
Parameter
Parameter
Overall
dimension
114 x 114 x 32.7mm
4.49 x4.49 x 1.29inches
Mounting
dimension
88.6x 88.6mm
3.49 x 3.49inches
Terminal
Φ4.3
