Name Function
H
Computer2 input port
Audio2 port
Inputs image signals from a computer and component
video signals from other video sources.
Connects to the audio output port of equipment
connected to the Computer2 input port to input audio.
Also, when the input source is one of the following and you
want to output audio from the projector, connect the
audio source to the Audio2 port.
- USB: When playing back a slideshow from a USB storage
device connected to the USB(TypeA) port, or when
projecting from the optional Document Camera
- USB Display
- LAN
s Quick Start Guide
I
LAN port
Connects to a LAN cable and then to a network.
s p.37
J
Computer1 input port
Audio1 port
Inputs image signals from a computer and component
video signals from other video sources.
Connects to the audio output port of equipment
connected to the Computer1 input port to input audio.
s Quick Start Guide
K
Microphone (Mic)
input port
Connects to a microphone. s p.36
L
Audio Output
(AudioOut) port
Outputs the audio of the images currently being projected
or the audio input from the Microphone (Mic) input port
to an external speaker. s p.36

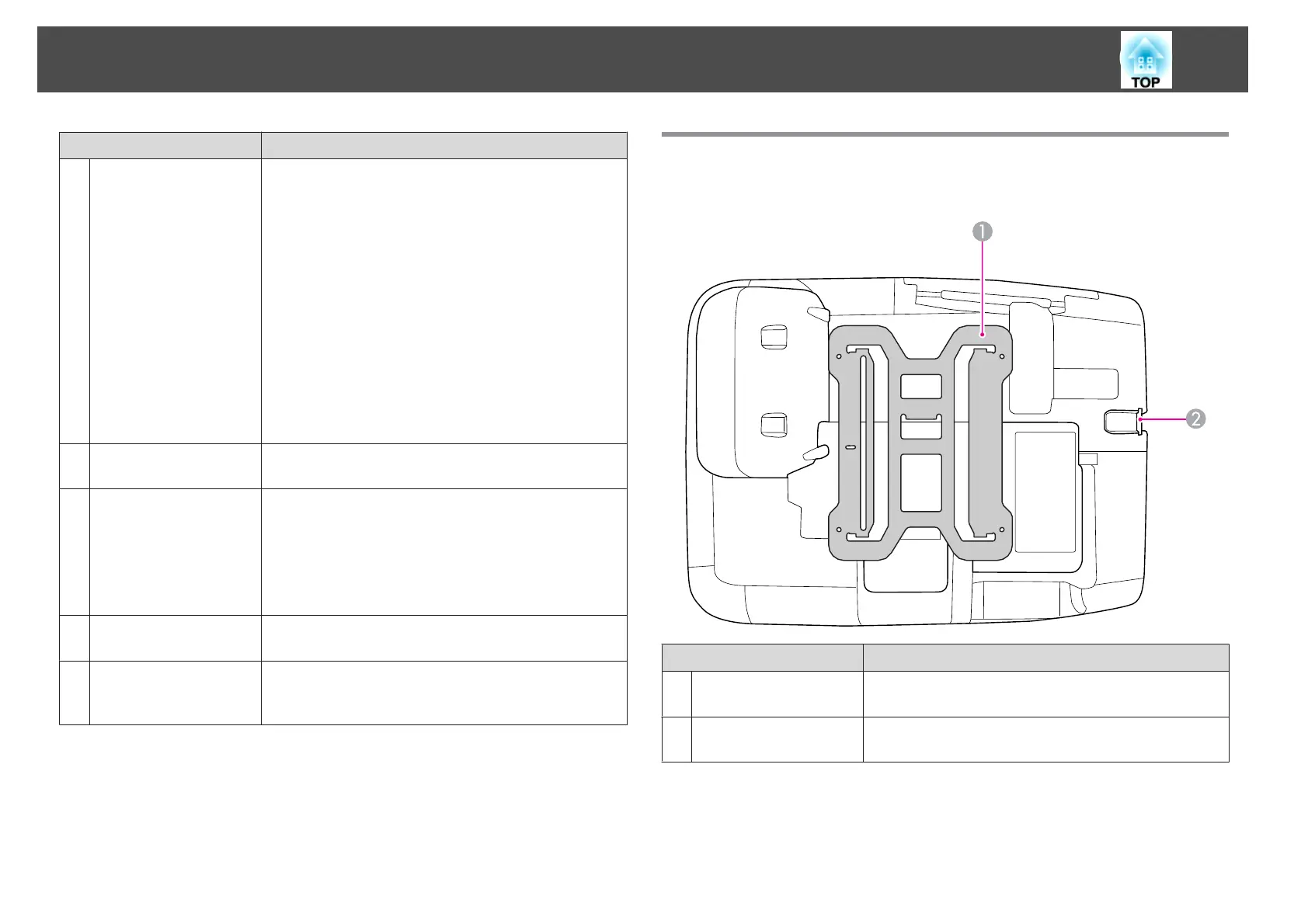

Base (with Slide Plate)
A slide plate is attached to the projector main unit at the time of shipment.
Name Function
A
Slide plate
Connect this to the setting plate when mounting the
projector on a wall. s Installation Guide
B
Security cable
installation point
Pass a commercially available wire lock through here and
lock it in place. s p.53
Part Names and Functions
14
To Next Page
