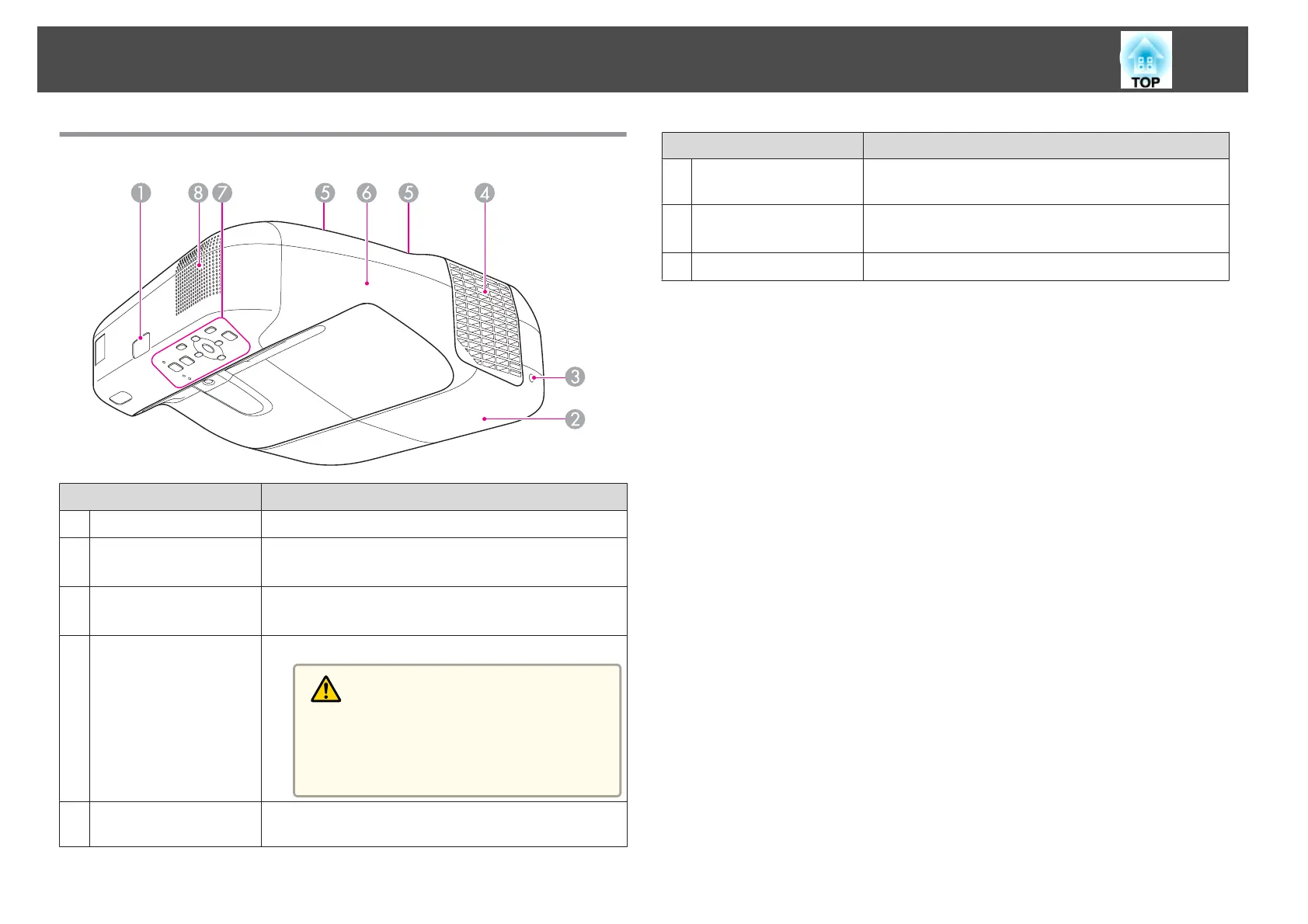

Front/Top
Name Function
A
Remote receiver
Receives signals from the remote control.
B
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.139
C
Lamp cover fixing
screw
Screw to fix the lamp cover in place.
s "Replacing the Lamp" p.139
D
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent.
E
Cable cover fixing
screws
Screws to fix the cable cover in place.
Name Function
F
Cable cover
Open by loosening both of the screws when connecting to
an input port or installing the wireless LAN unit.
G
Control panel
Operates the projector.
s "Control Panel" p.15
H
Speaker
Outputs audio.
