Epson EB-570 Installation Guide

Installation Guide
7

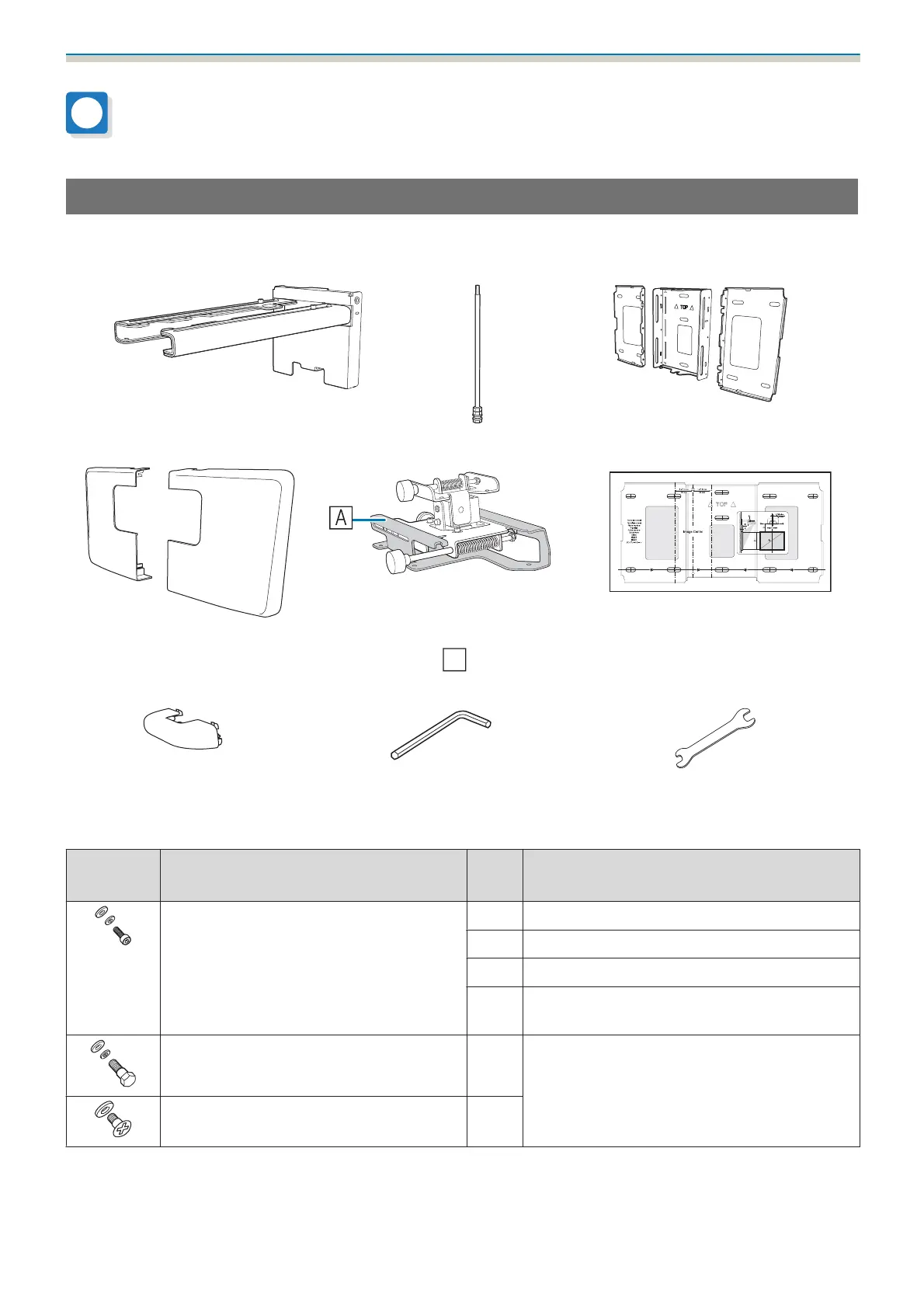

Package Contents
Setting plate
The following supplied items are necessary to mount the projector on a wall. Confirm that you have all items
before beginning.
Setting plate Hexagonal axis Wall plate
Wall plate cover 3-axis adjustment unit
*The slide plate (
ᵟ
) is secured dur‐
ing shipping.
Template sheet
(for installing the wall plate)
End cap Hexagon wrench (for M4) Open-ended spanner
13 mm (for M8 and M6),
6 mm (for hexagonal axis)
Shape Name Quan‐
tity
Application
M4 x 12 mm hexagon socket head cap bolt
with washer/spring washer
6For wall plate assembly
4 For 3-axis adjustment unit/arm installation
4 For slide plate/projector installation
2 For slide plate/3-axis adjustment unit installa‐
tion (attached during shipping)
M6 x 20 mm hexagon shoulder head bolt
with washer/spring washer
1 For setting plate/wall plate installation
M6 x 20 mm cross recessed head shoulder
screws with plastic washers
3
•
Use the bolts or screws supplied with this product to install it as directed in this guide. Do not substitute these bolts
with any other types.
•
You need to use commercially available M10 x 60 mm anchors (at least 3) to attach the wall plate to the wall.
•
Gather the tools and parts you need before you begin installation.

Epson EB-570 Specifications

General

Matrix size	0.55 \
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	56 - 93 \
Projection distance (tele)	0 - 0.6 m
Projection distance (wide)	0 - 0.4 m
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-3 - 3 °
Projector brightness (economic mode)	1500 ANSI lumens
Focus	Manual
Throw ratio	0.3:1
Digital zoom	1.35 x
Focal length range	0 - 3.71 mm
Lamp power	215 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Video processing	10 bit
Analog signal format system	-
Supported graphics resolutions	1024 x 768 (XGA)
Microphone in	Yes
Audio (L/R) in	0
Composite video in	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	35 dB
Country of origin	Philippines
2D/3D frequency image	50 - 85 Hz
Noise level (economic mode)	28 dB
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
RMS rated power	16 W
Placement	Desktop
Product type	Ultra short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.33 W
Power consumption (typical)	318 W
Power consumption (PowerSave)	230 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	USB
Bundled software	EasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection
Pallet width	800 mm
Pallet height	2040 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	375 mm
Width	367 mm
Height	155 mm
Weight	5300 g
Package depth	810 mm
Package width	520 mm
Package height	320 mm
Package weight	18520 g
