Epson EB-570 Installation Guide

Installation Guide
8
Specifications
Setting plate
Item Specification Remark Reference
Page
Setting plate weight Approx. 8.1 kg Setting plate (3.0 kg), 3-axis adjustment unit
(1.2 kg), slide plate (0.8 kg), wall plate (2.7 kg),
wall plate cover and end cap (0.4 kg)
Maximum load capacity 7 kg
Forward/backward slide ad‐
justment range
0 to 360 mm Arm slide adjustment range: 0 to 273 mm
Adjustment for 3-axis adjustment unit instal‐
lation position: 87 mm
See the fig‐
ure below
Vertical slide adjustment range ±38 mm See the fig‐
ure below
Horizontal roll adjustment
range
±3° Fine adjustments possible with adjustment
dial
s p.37
Horizontal rotation adjustment
range
±8° Fine adjustments possible with adjustment
dial
s p.37
Vertical tilt adjustment range ±3° Fine adjustments possible with adjustment
dial
s p.37
Horizontal slide adjustment
range
±45 mm See the fig‐
ure below
Wall plate

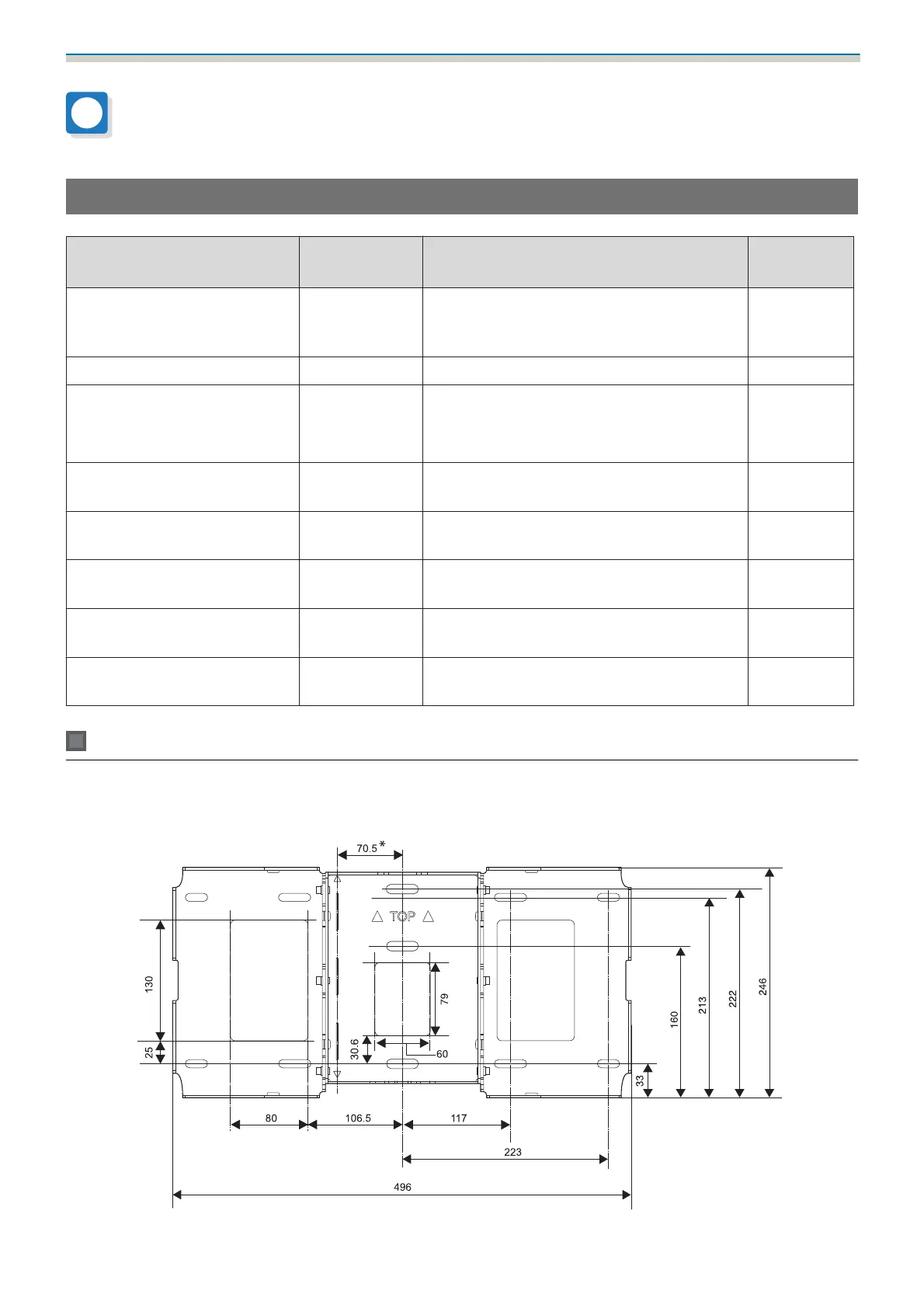

The following figure shows three wall plates connected to form one plate (separate when shipped).
[Unit: mm]
*
Offset value for the position of the center of the projected image and the center of the wall plate

Epson EB-570 Specifications

General

Matrix size	0.55 \
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	56 - 93 \
Projection distance (tele)	0 - 0.6 m
Projection distance (wide)	0 - 0.4 m
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-3 - 3 °
Projector brightness (economic mode)	1500 ANSI lumens
Focus	Manual
Throw ratio	0.3:1
Digital zoom	1.35 x
Focal length range	0 - 3.71 mm
Lamp power	215 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Video processing	10 bit
Analog signal format system	-
Supported graphics resolutions	1024 x 768 (XGA)
Microphone in	Yes
Audio (L/R) in	0
Composite video in	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	35 dB
Country of origin	Philippines
2D/3D frequency image	50 - 85 Hz
Noise level (economic mode)	28 dB
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
RMS rated power	16 W
Placement	Desktop
Product type	Ultra short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.33 W
Power consumption (typical)	318 W
Power consumption (PowerSave)	230 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	USB
Bundled software	EasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection
Pallet width	800 mm
Pallet height	2040 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	375 mm
Width	367 mm
Height	155 mm
Weight	5300 g
Package depth	810 mm
Package width	520 mm
Package height	320 mm
Package weight	18520 g
