Epson EB-685W Installation Guide

Installation Guide
12
Projection Distance Table

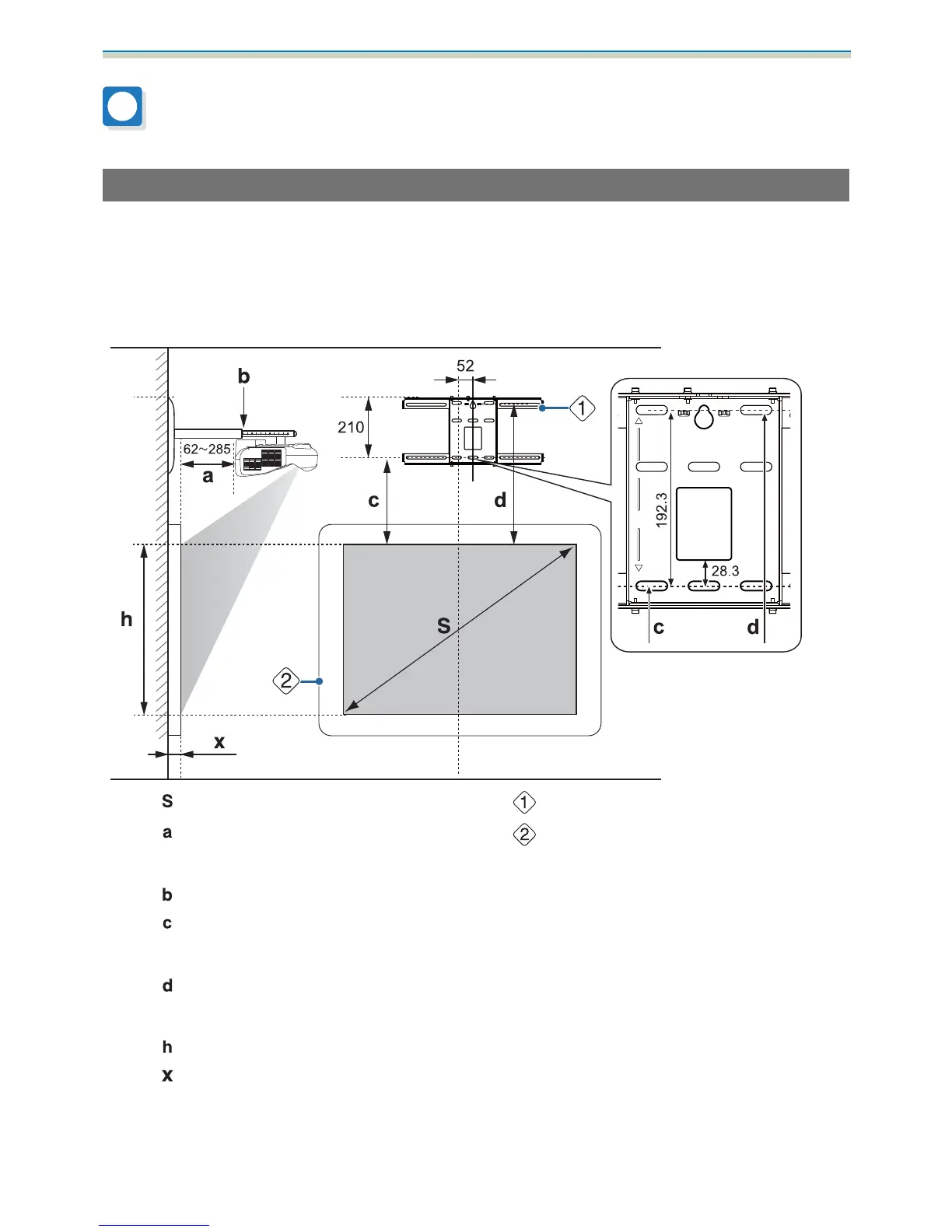

Figures of Installation Dimensions
To find the appropriate projection distance, see the following figures when installing. The values are only
rough estimates.
The recommended range for the projection distance (a) is 62 to 285 mm.
The offset value for the position of the center of the projected image and the center of the wall plate is 52 mm.
[Unit: mm]
:
Projected image size
:
Wall plate
:
Minimum projection distance (Wide: maxi-
mum zoom)
to maximum (Tele: minimum zoom)
:
Screen
:
Numbers on the arm slide scale
:
Distance from the top of the projected image
to the bottom wall plate installation screw
hole
:
Distance from the top of the projected image
to the wall plate temporary securing screw
hole
:
Height of projected image
:
Distance from surface of screen to wall (100
mm or less)
Aspect ratio for standard projected image (EB-685W/EB-675W)

Epson EB-685W Specifications

General

Projection Technology	3LCD
Native Resolution	WXGA (1280 x 800)
Brightness	3500 lumens
Contrast Ratio	14, 000:1
Lamp Life	Up to 10, 000 hours (ECO mode)
Keystone Correction	Manual vertical: ± 3°, Manual horizontal ± 3°
Connectivity	HDMI, USB, VGA
Zoom	Digital Zoom
Speakers	16W Mono
