Epson EB-685W Installation Guide

Installation Guide
31
Install the wall plate on the wall
a
Determine the projection position based on the projected image size
See the projection distance table to check the following values.
•
Projected image size (S)
•
Distance from the top of the projected image to the bottom wall plate installation screw hole (c)
•
Distance from the top of the projected image to the wall plate temporary securing screw hole (d)
s "Projection Distance Table" p.12
c

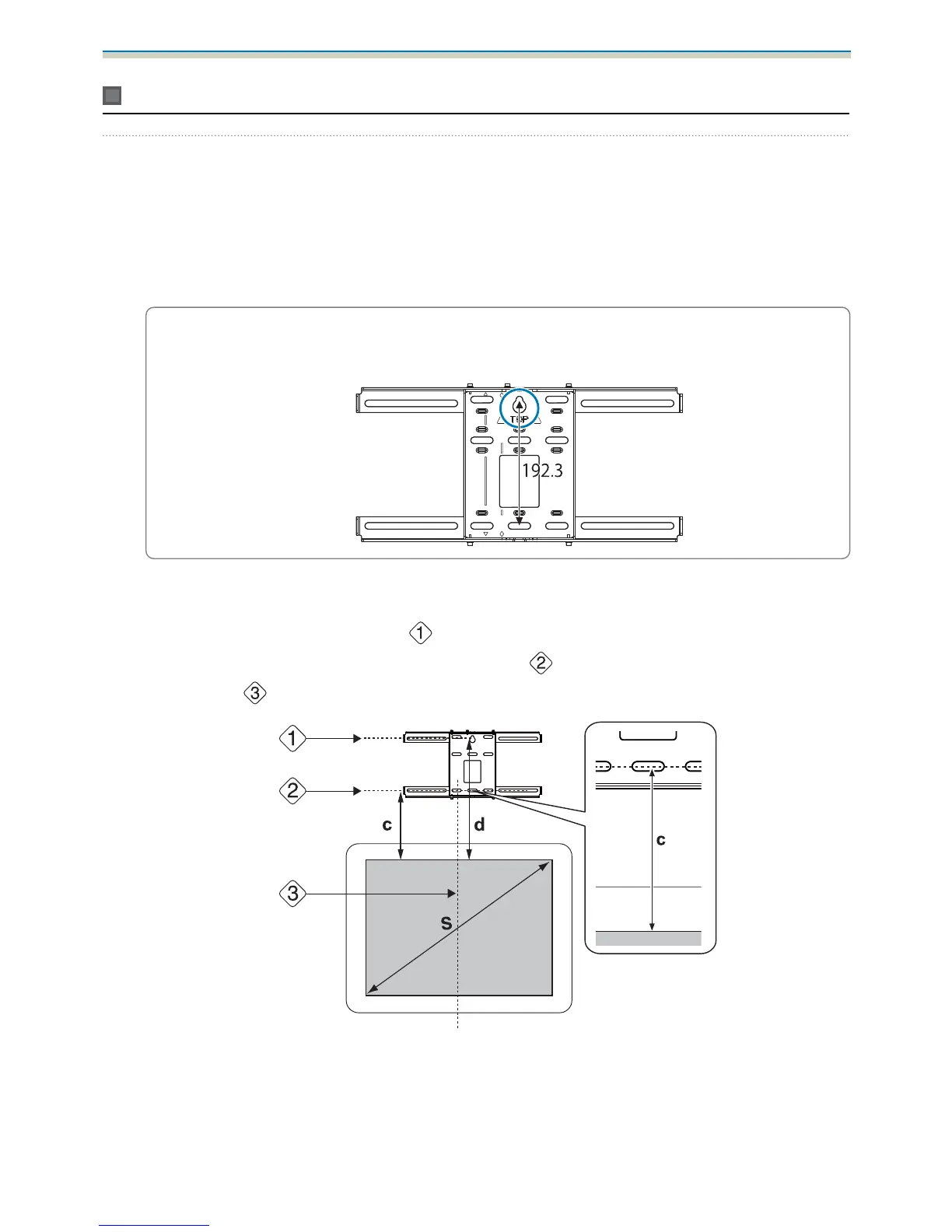

Use the screw hole in the following figure as the temporary screw hole for the wall plate. The
distance from the bottom wall plate installation screw hole to the temporary screw hole is
192.3 mm.
We recommend marking the following positions. These will be the basis for determining the mounting
position of the wall plate.
•
Position of the temporary screw hole ( )
•
Position of the bottom wall plate installation screw hole ( )
•
Center line ( ) of the projected image

Epson EB-685W Specifications

General

Projection Technology	3LCD
Native Resolution	WXGA (1280 x 800)
Brightness	3500 lumens
Contrast Ratio	14, 000:1
Lamp Life	Up to 10, 000 hours (ECO mode)
Keystone Correction	Manual vertical: ± 3°, Manual horizontal ± 3°
Connectivity	HDMI, USB, VGA
Zoom	Digital Zoom
Speakers	16W Mono
