Epson EB-685W Installation Guide

Installation Guide
36
c

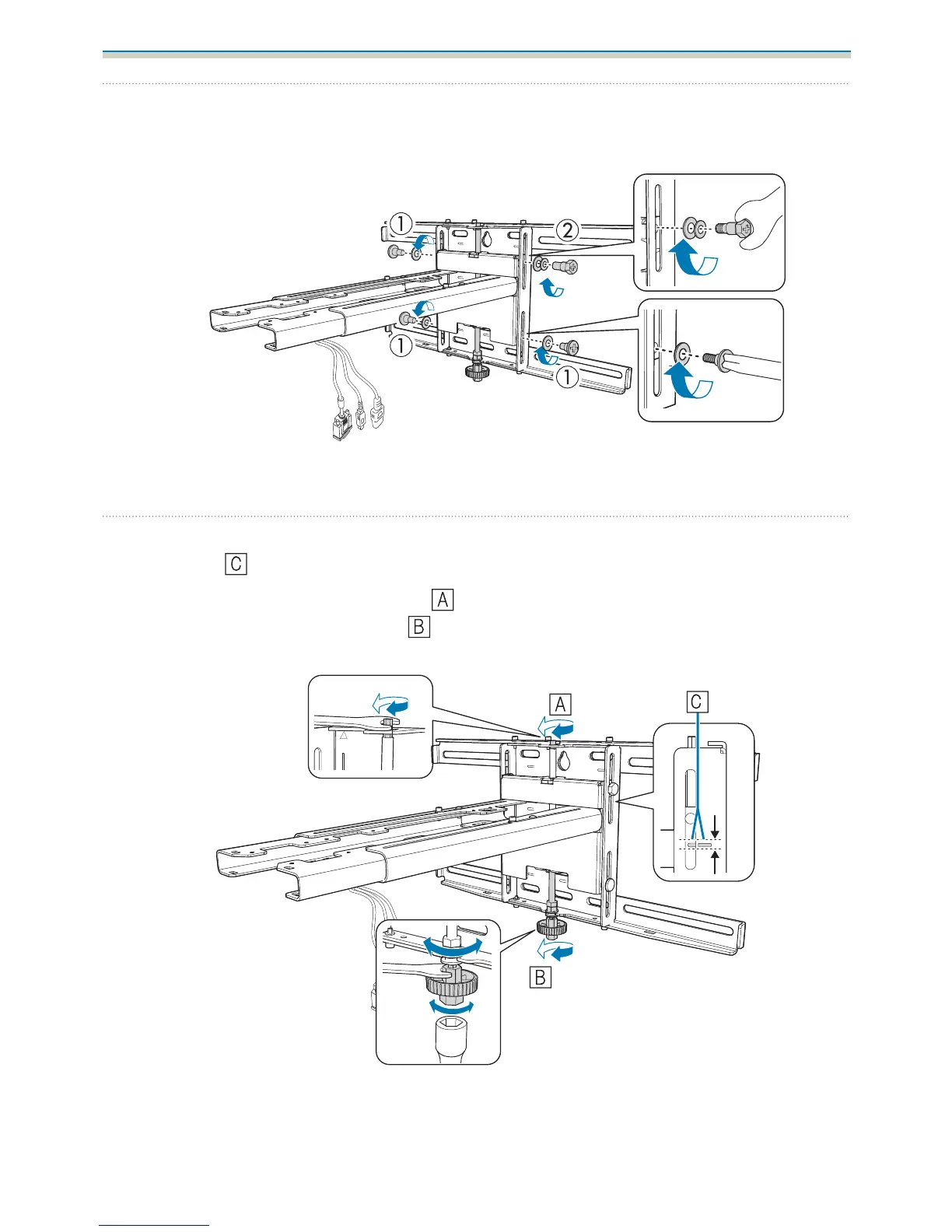

Secure the setting plate and the wall plate
Secure the supplied M6 screws (x3) with a commercially available No.3 cross-head screwdriver, and
then lightly tighten the supplied M6 bolt (x1) with the spanner.
d
Adjust the vertical slide with the open-ended spanner, and align it with the standard
position (
)
•
Tightening the hexagonal axis at the top ( ) raises the setting plate, and loosening the axis lowers it.
•
Tightening the M8 bolt at the bottom ( ) lowers the setting plate, and loosening the bolt raises it. (You can
also use a 17 mm socket wrench.)

Epson EB-685W Specifications

General

Projection Technology	3LCD
Native Resolution	WXGA (1280 x 800)
Brightness	3500 lumens
Contrast Ratio	14, 000:1
Lamp Life	Up to 10, 000 hours (ECO mode)
Keystone Correction	Manual vertical: ± 3°, Manual horizontal ± 3°
Connectivity	HDMI, USB, VGA
Zoom	Digital Zoom
Speakers	16W Mono
