Epson EB-685WI User Manual

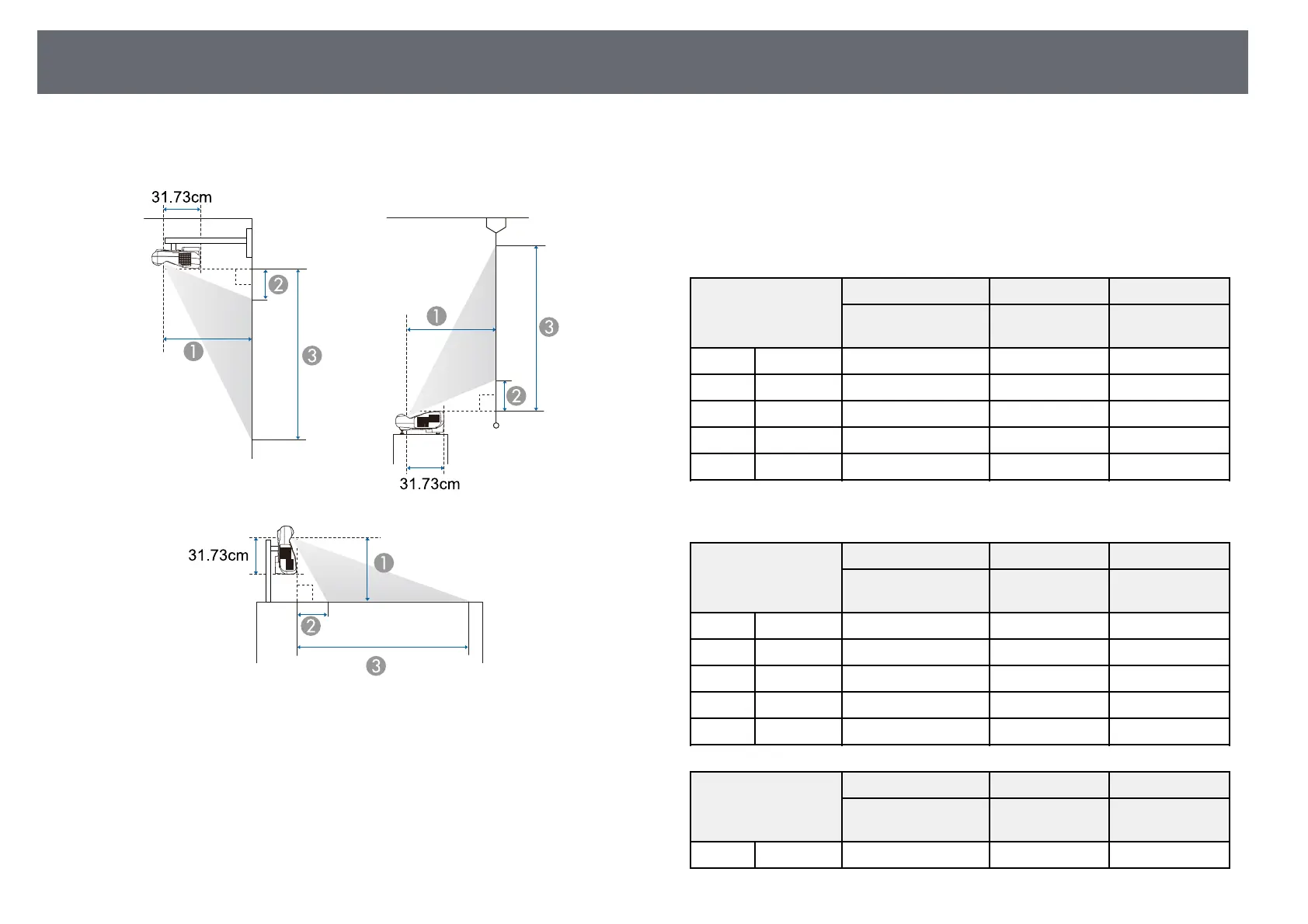

Screen Size and Projection Distance
237
Check the table here to determine how far to place the projector from the
screen based on the size of the projected image.
A
Projection distance (cm)
B
Distance from the projector to the top of the screen (when mounting on a wall
or ceiling, or installing vertically) (cm)
Distance from the projector to the bottom of the screen (when placing on a
surface such as a desk) (cm)
C
Distance from the projector to the bottom of the screen (when mounting on a
wall or ceiling, or installing vertically) (cm)
Distance from the projector to the top of the screen (when placing on a surface
such as a desk) (cm)
WXGA (EB-695Wi/EB-685Wi/EB-680Wi/EB-675Wi)
16:10 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
60" 129 × 81 35.4 - 48.4 8.7 89.5
70" 151 × 94 41.6 - 56.7 11.5 105.8
80" 172 × 108 47.7 - 60.1 14.3 122.0
90" 194 × 121 53.9 - 60.1 17.1 138.3
100" 215 × 135 60.1 19.9 154.6
WXGA (EB-685W/EB-675W)
16:10 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
60" 129 × 81 35.4 - 48.4 8.7 89.5
70" 151 × 94 41.6 - 56.7 11.5 105.8
80" 172 × 108 47.7 - 60.1 14.3 122.0
90" 194 × 121 53.9 - 60.1 17.1 138.3
100" 215 × 135 60.1 19.9 154.6
4:3 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
53" 108 × 81 35.4 - 48.4 8.7 89.5

Epson EB-685WI Specifications

General

Projection Technology	3LCD
Resolution	WXGA (1280 x 800)
Contrast Ratio	14, 000:1
Lamp Life	10, 000 hours (ECO mode)
Lamp Life (Normal)	5, 000 hours
Throw Ratio	0.28 - 0.37:1
Interactive	Yes
Speakers	16 W
Brightness	3500 ANSI Lumens
Keystone Correction	Vertical: ±3 degrees, Horizontal: ±3 degrees
Connectivity	HDMI, USB, VGA
Screen Size	60 inches to 100 inches
