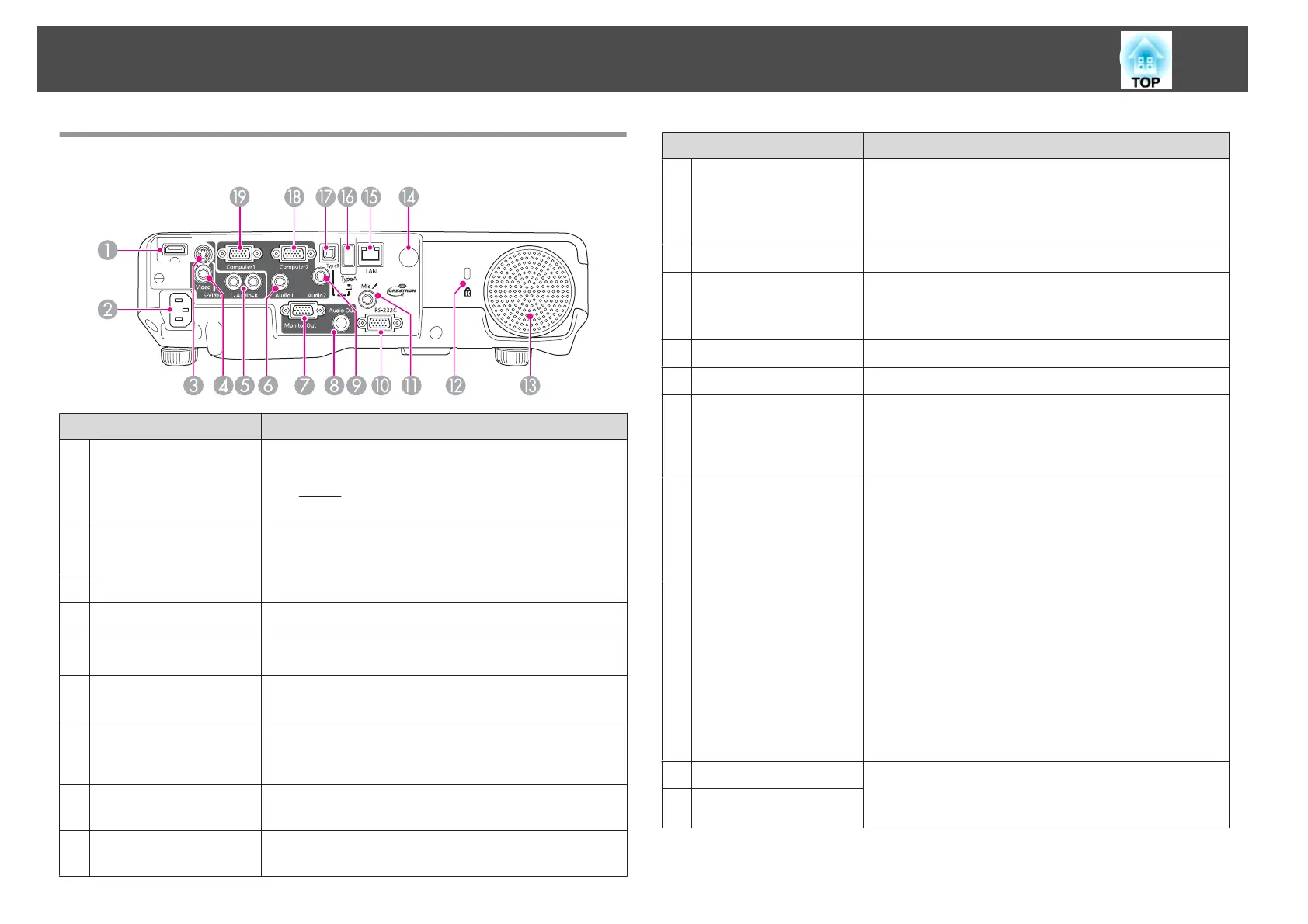

Epson EB-915W User Manual

Rear
Name Function
A
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Equipment" p.22
B
Power inlet
Connects the power cable to the projector.
s "From Installation to Projection" p.30
C
S-Video port
For S-video signals from video sources.
D
Video port
Inputs composite video signals from video sources.
E
Audio-L/R port
Inputs audio from equipment connected to the S-Video
port or the Video port.
F
Audio1 port
Inputs audio from equipment connected to the
Computer1 port.
G
Monitor Out port
Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
H
Audio Out port
Outputs audio from the currently projected image or the
Mic port to an external speaker.
I
Audio2 port
Inputs audio from equipment connected to the
Computer2 port.
Name Function
J
RS-232C port
When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.67
K
Mic port
Inputs audio from the microphone.
L
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.62
M
Speaker
Plays back audio.
N
Remote receiver
Receives signals from the remote control.
O
LAN port
(EB-925/EB-915W/
EB-905/EB-96W/EB-95
only)
Connects a LAN cable to connect to a network.
P
USB(TypeA) port
• Connects a USB memory device or a digital camera, and
projects images as a Slideshow.
s
"Projecting Without a Computer (Slideshow)"
p.46
• Connects the optional Document Camera.
Q
USB(TypeB) port
• Connects the projector to a computer via a
commercially available USB cable, and projects the
images on the computer.
s "Projecting with USB Display" p.32
• Connects the projector to a computer via the
commercially available USB cable to use the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.54
R
Computer2 port
Inputs image signals from a computer and component
video signals from other video sources.
S
Computer1 port
Part Names and Functions
11

Epson EB-915W Specifications

General

Projection distance	1.79 - 2.92 m
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	29 - 280 \
Projector native resolution	WXGA (1280x800)
Interface	USB
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	263 x 345 x 93 mm
Connectivity technology	Wired
Lamp type	UHE
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	6000 h
Focus	Manual
Focal length range	18.2 - 29.2 mm
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	16 W
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	2
Wi-Fi	-
Noise level	37 dB
Country of origin	China
Product type	Standard throw projector
Power consumption (standby)	0.39 W
Power consumption (typical)	337 W
Pallet width	800 mm
Pallet height	2190 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	72 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	6 pc(s)

Weight and Dimensions

Weight	3400 g
Package depth	486 mm
Package width	358 mm
Package height	170 mm
Package weight	5060 g
