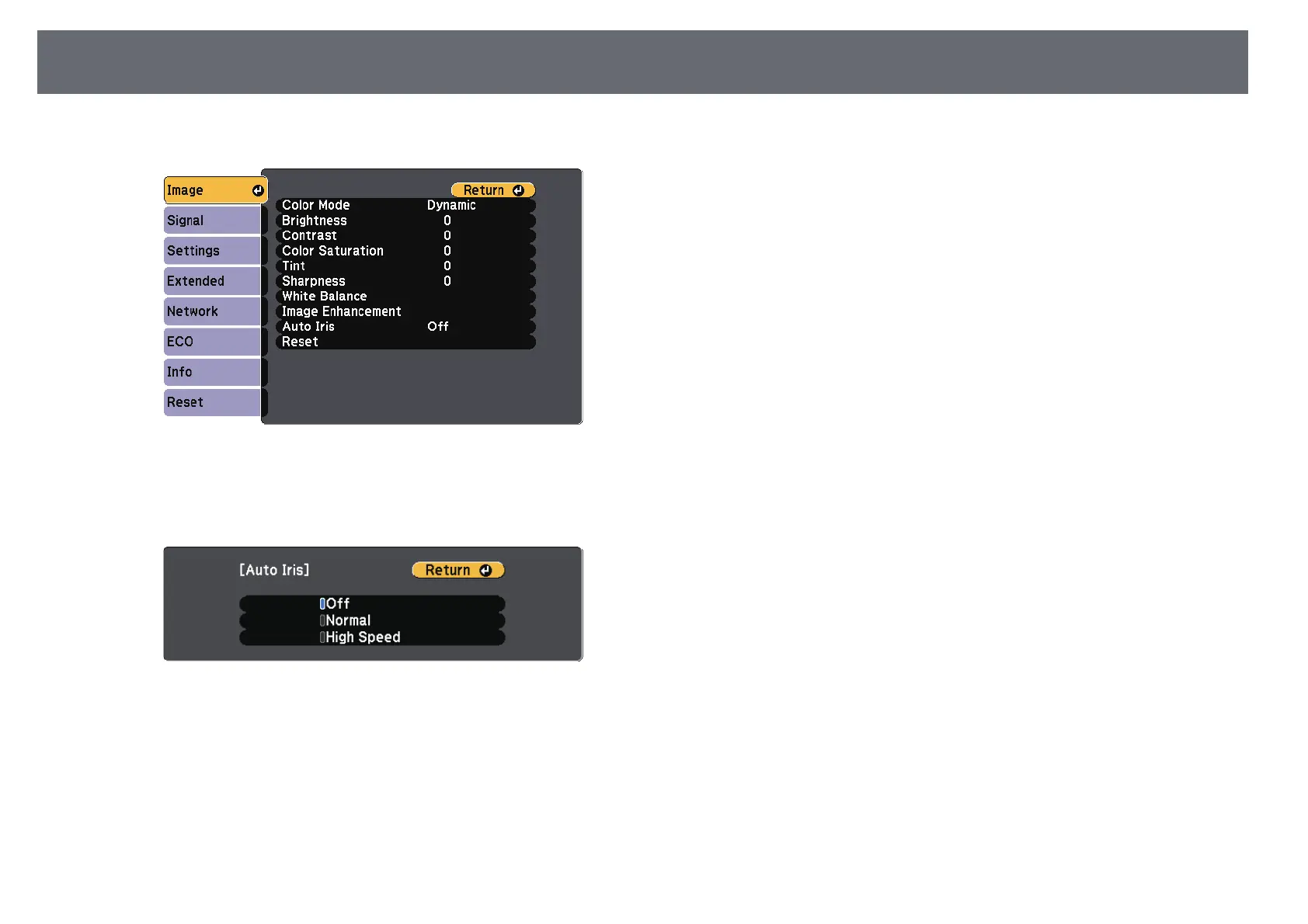

Adjusting
Quality
(Color
Mode)
62
c
Select
the
menu
and
press
[Enter].
d
Select
Auto
Iris
and
press
[Enter].
e
Choose
one
of
the
following
options
and
press
[Enter]:
•
Normal
for
standard
brightness
adjustment.
•
High
Speed
to
adjust
brightness
as
soon
as
the
scene
changes.
f
Press
[Menu]
or
[Esc]
to
exit
the
menus.
61
