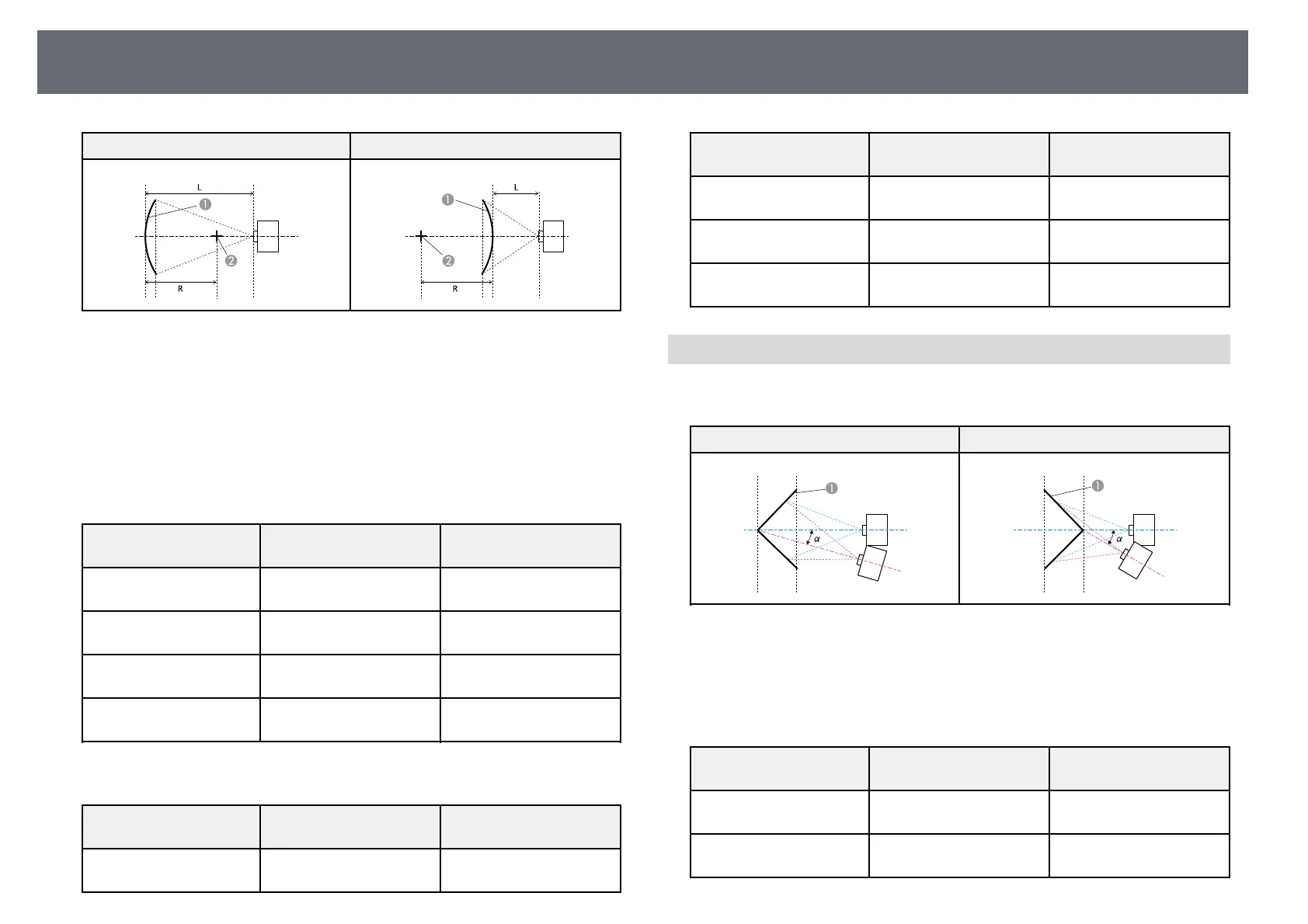

Details of Updated Optional Accessories (Version 2.00)
12
Concave surface Convex surface
A
Screen
B
Center point of the circle created by the arc of the curved surface
L Projection distance
R Radius of the circle created by the arc of the curved surface
EB‑‑G7905U/EB‑‑G7900U/EB‑‑G7500U/EB‑‑G7400U/EB‑‑G7200W/EB‑‑G7000
W
Vertical lens shift: Home
position (R/L)
Vertical lens shift: Top
(R/L)
Horizontally curved
surface (concave)
0.21 0.22
Horizontally curved
surface (convex)
0.33 0.35
Vertically curved surface
(concave)
0.15 0.17
Vertically curved surface
(convex)
0.18 0.22
EB‑‑G7805/EB‑‑G7800/EB‑‑G7100
Vertical lens shift: Home
position (R/L)
Vertical lens shift: Top
(R/L)
Horizontally curved
surface (concave)
0.20 0.20
Vertical lens shift: Home
position (R/L)
Vertical lens shift: Top
(R/L)
Horizontally curved
surface (convex)
0.31 0.31
Vertically curved surface
(concave)
0.16 0.19
Vertically curved surface
(convex)
0.21 0.26
ELPLM15 Corner Wall Correction Range
The following table shows the maximum angle (α) within which the projector
can move during corner wall correction.
Concave surface Convex surface
A
Screen
α Angle of possible projector motion
EB‑‑G7905U/EB‑‑G7900U/EB‑‑G7500U/EB‑‑G7400U/EB‑‑G7200W/EB‑‑7000W
Vertical lens shift: Home
position
Vertical lens shift: Top
Horizontal corner
(concave)
31° 29°
Horizontal corner
(convex)
19° 18°
