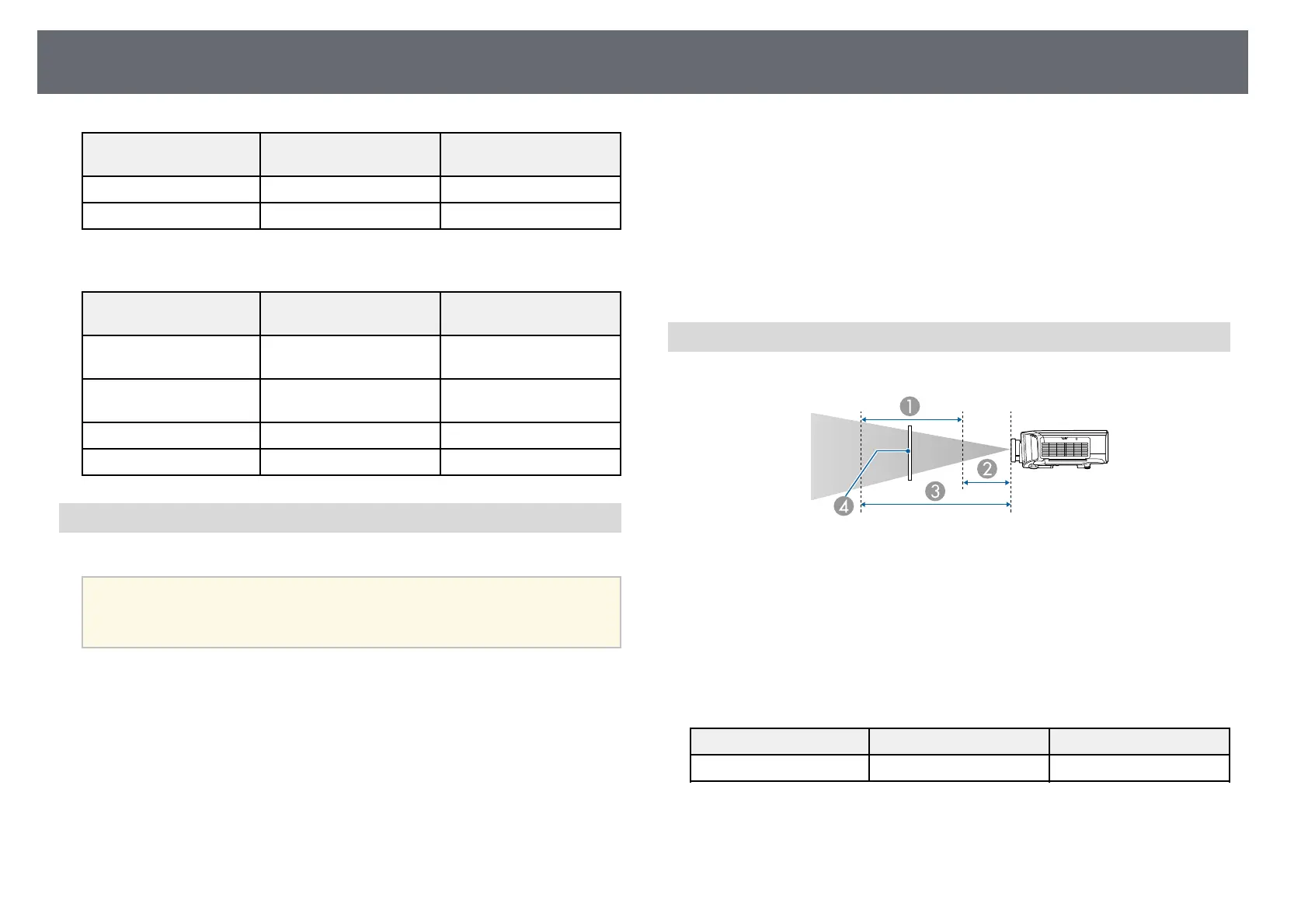

Details of Updated Optional Accessories (Version 2.00)
16
Vertical lens shift: Home
position
Vertical lens shift: Top
Vertical corner (concave) 29° 14°
Vertical corner (convex) 20°
EBL1405U/EBL1300U/EBL1200U/EBL1105U/EBL1100U/EBL1000U
Vertical lens shift: Home
position
Vertical lens shift: Top
Horizontal corner
(concave)
30° 29°
Horizontal corner
(convex)
18° 18°
Vertical corner (concave) 26° 14°
Vertical corner (convex) 22° 12°
ELPLM15 Projection Distance
You can calculate the projection distance using the following formulas.
a
You can also use the projection distance calculator to automatically
calculate various distances for you.
https://epson.com/
EBL1505U/EBL1500U
Screen aspect ratio: 16:10 or 16:9
Minimum distance (Wide) (cm) = Screen width (cm) × 1.57
Maximum distance (Tele) (cm) = Screen width (cm) × 2.56
Screen aspect ratio: 4:3
Minimum distance (Wide) (cm) = Screen width (cm) × 1.89
Maximum distance (Tele) (cm) = Screen width (cm) × 3.07
EBL1405U/EBL1300U/EBL1200U/EBL1105U/EBL1100U/EBL1000U
Screen aspect ratio: 16:10 or 16:9
Minimum distance (Wide) (cm) = Screen width (cm) × 2.16
Maximum distance (Tele) (cm) = Screen width (cm) × 3.48
Screen aspect ratio: 4:3
Minimum distance (Wide) (cm) = Screen width (cm) × 2.59
Maximum distance (Tele) (cm) = Screen width (cm) × 4.18
ELPLM15 Polarizer (ELPPL01) Installation Distance
The following table shows the installation range of the polarizer (ELPPL01).
A
Installation range of the polarizer
B
Shortest distance from the projection lens to the polarizer
C
Longest distance from the projection lens to the polarizer
D
Polarizer (ELPPL01)
EBL1505U/EBL1500U
Projector Resolution
B C
WUXGA 140 150
