41

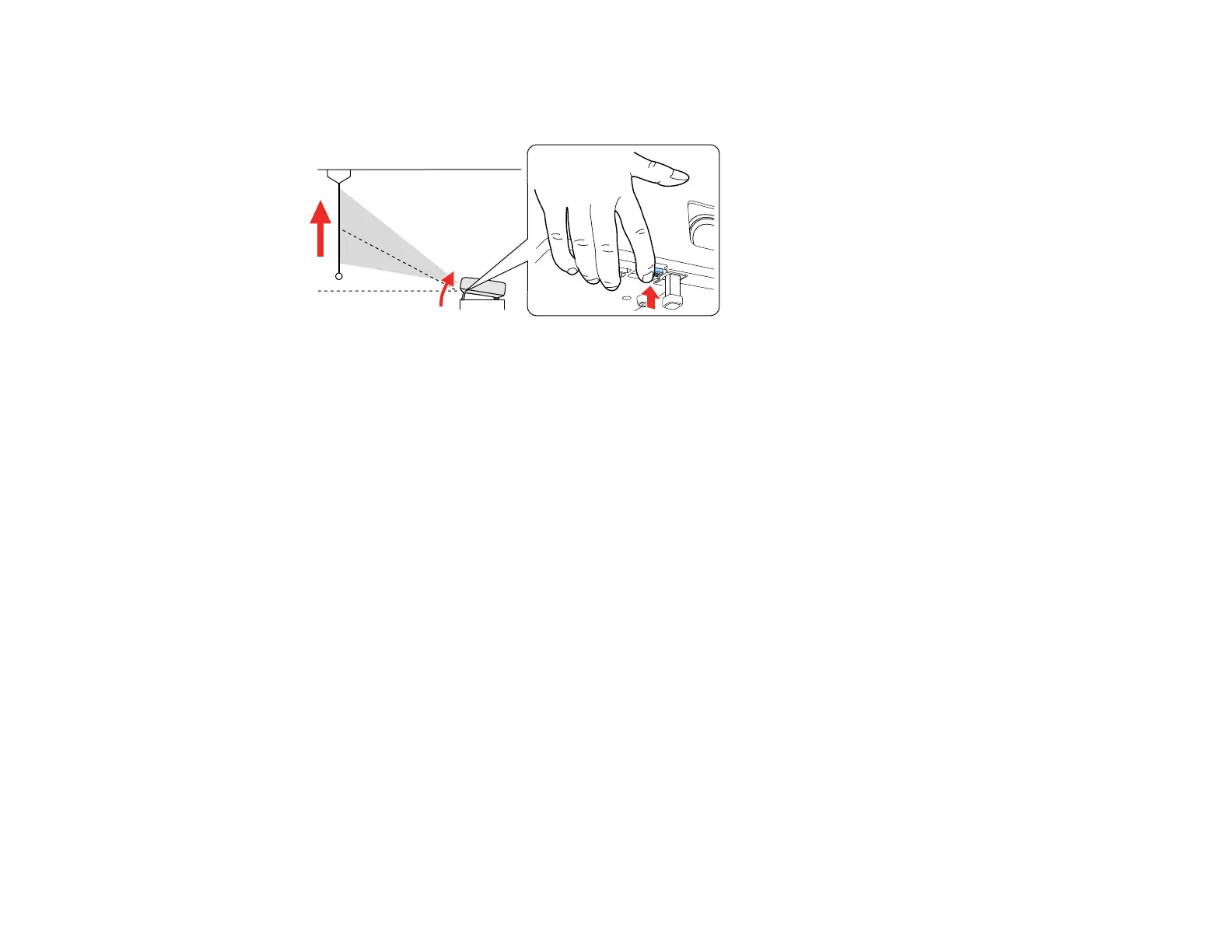

1. Turn on the projector and display an image.
2. Press and hold the foot release lever to extend or retract the front adjustable foot.
Note: You can adjust the position up to 9°.
3. Release the lever to lock the foot when the image is at the position you want.
If the projected image is unevenly rectangular, you need to adjust the image shape.
Parent topic: Using Basic Projector Features
Related references
Projector Parts - Base
Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.
When you turn on automatic keystone correction in your projector's Settings menu, your projector
automatically corrects vertical keystone effects when you reposition the projector.
Correcting Image Shape with H/V Keystone
Correcting Image Shape with Quick Corner
Parent topic: Using Basic Projector Features
Correcting Image Shape with H/V Keystone
You can use the projector remote control or control panel buttons to correct the shape of an image that is
unevenly rectangular on the sides.
