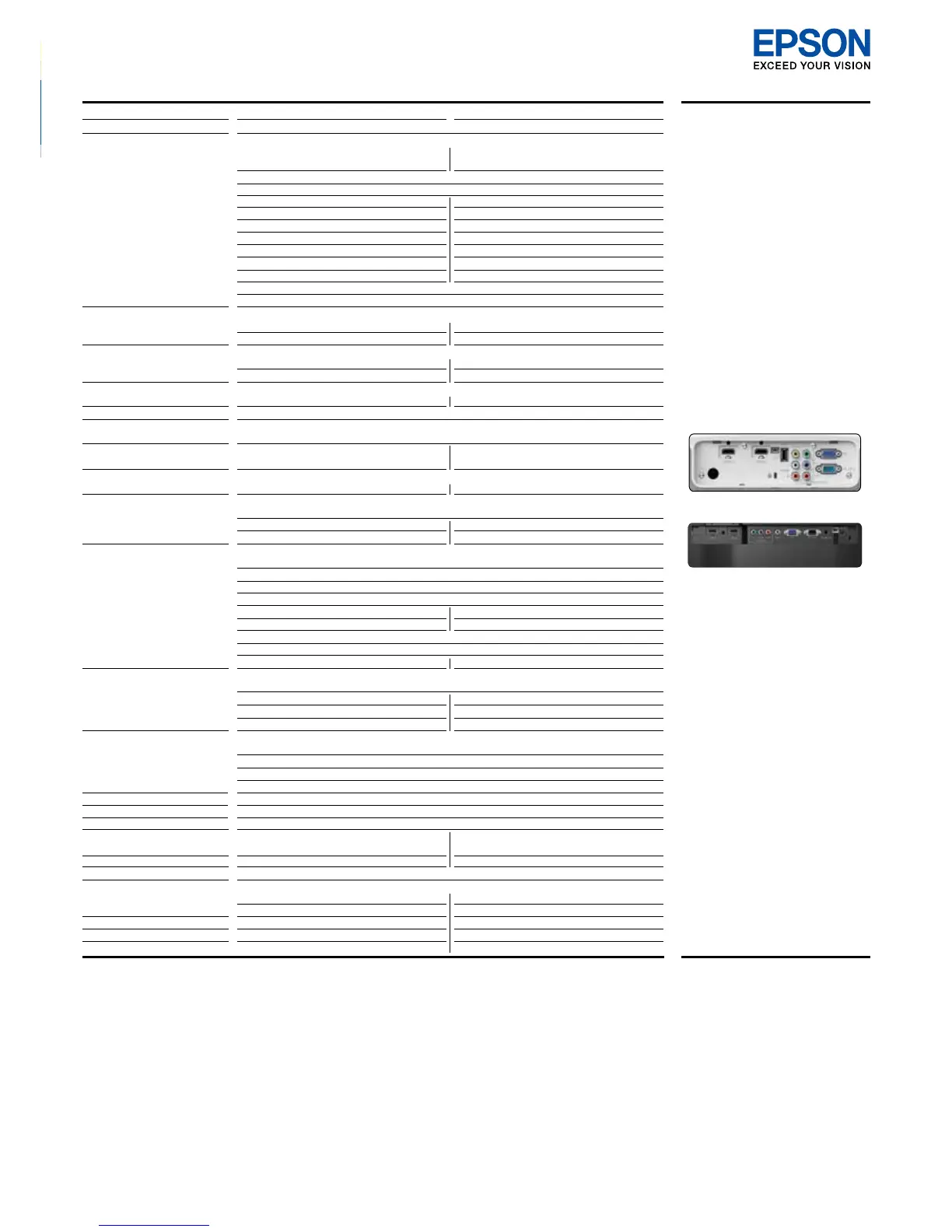

SPECIFICATIONS
EH-TW6100/TW8200
© 2013 Epson Singapore Pte Ltd. All Rights Reserved.
Reproduction in part or in whole, without the written
permission from Epson, is strictly prohibited. EPSON and
EXCEEDYOURVISIONareregisteredtrademarksof
Seiko Epson Corporation. All other products names and
other company names used herein are for identification
purposes only and are the trademarks or registered
trademarks of their respective owners. Epson disclaims
any and all rights in those marks. Print samples shown
are simulations only. Specifications and product
availability are subject to change without notice and
may vary between countries. Please check with local
Epson offices for more information.
Supplied Accessories
Power Cable : 3m, 3 Wire (Black)
Remote Control : Compact Type
Battery : Alkaline AA Battery x 2
User’sManualSet
Optional Accessories
3D Glasses (RF Type) : ELPGS03
3D Glasses Charger : ELPAC01
Spare Lamp : LPLP68 (EH-TW6100)
ELPLP69 (EH-TW8200)
Air Filter : ELPAF38 (EH-TW6100)
ELPAF39 (EH-TW8200)
Cable Cover : ELPCC04W (White)
(EH-TW8200)
Ceiling Mount : ELPMB22 (White)
EH-TW6100
EH-TW8200
MODEL NUMBER EH-TW6100 EH-TW8200
Projection Technology RGB liquid crystal shutter projection system (3LCD)
Specification of Main Parts
LCD Size 0.61" wide panel with MLA 0.74" wide panel with MLA
(D9, C
2
Fine, 12 bit) (D9, C
2
Fine, 12 bit, OD)
Native Resolution 1080p (1920 x 1080)
ProjectionLens Type OpticalZoom(Manual)/Focus(Manual)
   F-Number 1.51-1.99 2.3 - 3.6
   FocalLength 18.2mm-29.2mm 22.5mm-47.2mm
Zoom Ratio 1 - 1.6 1 - 2.1
Throw Ratio 1.32 -2.15(Wide-Tele) 1.34-2.87(Wide-Tele)
Lens Shift Mode N.A. Manual
   Vertical(Up/Down) N.A. ±96.3% (H Center, Manual)
  Horizontal(Left/Right) N.A. ±47.1% (V Center, Manual)
Lamp  Type 230WUHE
   Life(Normal/Eco)*
1
 4,000hours/5,000hours
Screen Size (Projected Distance)
Zoom Wide 30" to 300" [0.87 to 8.9m] 30" to 300" [0.87 to 9.03m]
ZoomTele   30"to300"[1.42to14.5m] 30"to300"[1.88to19.15m]
Brightness*
2
White Light Output (Normal) 2,300lm 2,400lm
Colour Light Output (Normal) 2,300lm 2,400lm
Contrast Ratio
Auto Iris: On 40,000:1 600,000:1
Video Quality Interlace-Progressiveconversion,3DY/Cseparation,Noisereduction
Supported Video Signal 480i/576i/480p/576p/720p/1080i/1080p
    NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM
Colour Mode Auto, Dynamic, Living room, Natural, Dynamic, Living room, Natural, Cinema, 3D Dynamic,
Cinema, 3D Dynamic, 3D Cinema 3D Cinema
Internal Speaker(s)
Sound Output 10W x 2 N.A.
Keystone Correction
Vertical ±30°
Horizontal ±30° (Slider Bar) N.A.
Auto Keystone Correction Yes N.A.
Connectivity
AnalogInput  D-sub15pin 1(Blue)
Video Input  Component RCAx3(Red/Green/Blue)
Composite RCA x 1 (Yellow)
Digital Input HDMI 2 (HDCP supported) DeepColour, CEC, 3D
AudioInput  RCA(White/Red) 1 N.A.
Others  USBTypeA 1(USBMemory) N.A.
   USBTypeB 1mini-USB(Forserviceonly)
ControlI/O  RS-232C D-sub9pinx1
   Trigger-Out(12V) N.A. 3.5mmmini-jackx1
Adjustment Functions
SixAxisColourAdjustment Hue/Saturation/BrightnessforeachofRGBCMYareadjustable
Frame Interpolation N.A. High/Normal/Low/Off(2Dand3DModes)
Super Resolution 0/1/2/3/4/5(2Dmodeonly) 0/1/2/3/4/5(2Dand3Dmodes)
AspectMode   Auto/Normal/Full/Zoom/Wide Auto/Normal/Full/Zoom
3D Features
3DDisplay   On/Off 
2D-3DConversion Off/Weak/Medium/Strong
3D Format Auto/SidebySide/Top&Bottom/2D
3D Depth ±10 The default value of 3D depth can be automatically set when a user enters the screen size.
Operating Temperature 5°Cto35°C<41°Fto95°F>
Operating Altitude 0mto2,286m<0ftto7500ft>
Direct Power On/Off Yes/N.A.
Start-Up Period 23 seconds 20 seconds
Warm-up period: 30 seconds Warm-up period: 30 seconds
Cool Down Period 5seconds 16seconds
Power Supply Voltage 100 - 240 V AC ±10%,50/60Hz
Power Consumption (220-240V)
 LampOn(Normal/Eco) 358W/274W 334W/270W
 Standby(HDMILinkOn/Off) 0.35W/0.35W 0.39W/0.39W
Dimension Excluding Feet (W x H x D) 420mmx137.3mmx365mm 466mmx140mmx395mm
Weight 6.0kg 8.4kg
Fan Noise 24dB 22dB
Information correct as at October 2013

Epson EH-TW6100 Specifications


color light output	2, 300 lumen
white light output	2, 300 lumen
resolution	1920 x 1080
contrast ratio	40, 000:1

Optical

projection ratio	1.32 - 2.15:1
projection size	30 inches - 300 inches
projection distance wide	0.9 m - 8.9 m
projection distance tele	1.4 m - 14.5 m

Power

energy use	358 W
energy use (economy)	274 W
energy use (standby)	0.35 W

Connectivity

interfaces	RS-232C, VGA in, HDMI 1.4, Composite in, USB 2.0 Type A, USB 2.0 Type B, Component in

Weight and Dimensions

product dimensions	420 x 365 x 137 mm
product weight	6 kg
carton weight	8.74 kg
