Introduction
8

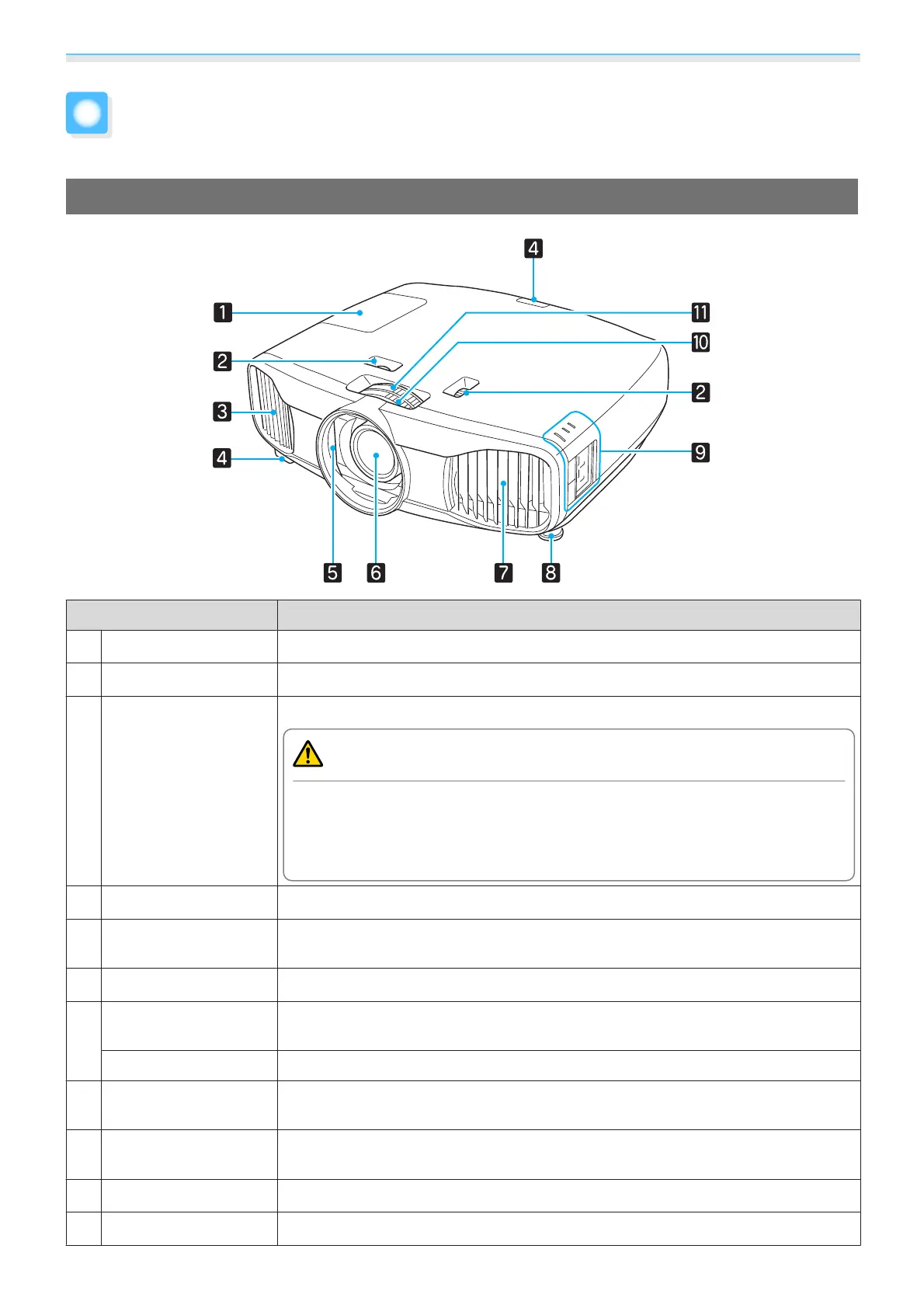

Part Names and Functions
Front/Top
Name Function
a
Lamp cover
Open when replacing the projector's lamp. s p.93
b
Lens shift dial
Adjusts the position of the projected image. s p.28
c
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.
d
Remote receiver
Receives signals from the remote control. s p.24
e
Lens shutter
Closes automatically when the projector is turned off to protect the lens from
being scratched or soiled.
s p.25
f
Projector's lens
Images are projected from here.
g
Air filter cover
When cleaning or replacing the air filter, open this cover and remove the air filter.
s p.89, p.92
Air intake vent
Intake vent for air used to cool the projector internally.
h
Front adjustable foot
When setup on a surface such as a table, extend the foot to adjust the horizontal
tilt.
s p.28
i
Control panel
Control panel on the projector. Open the control panel cover to perform opera‐
tions.
s p.9
j
Focus ring
Adjusts the image focus. s p.27
k
Zoom ring
Adjusts the image size. s p.28
To Next Page
