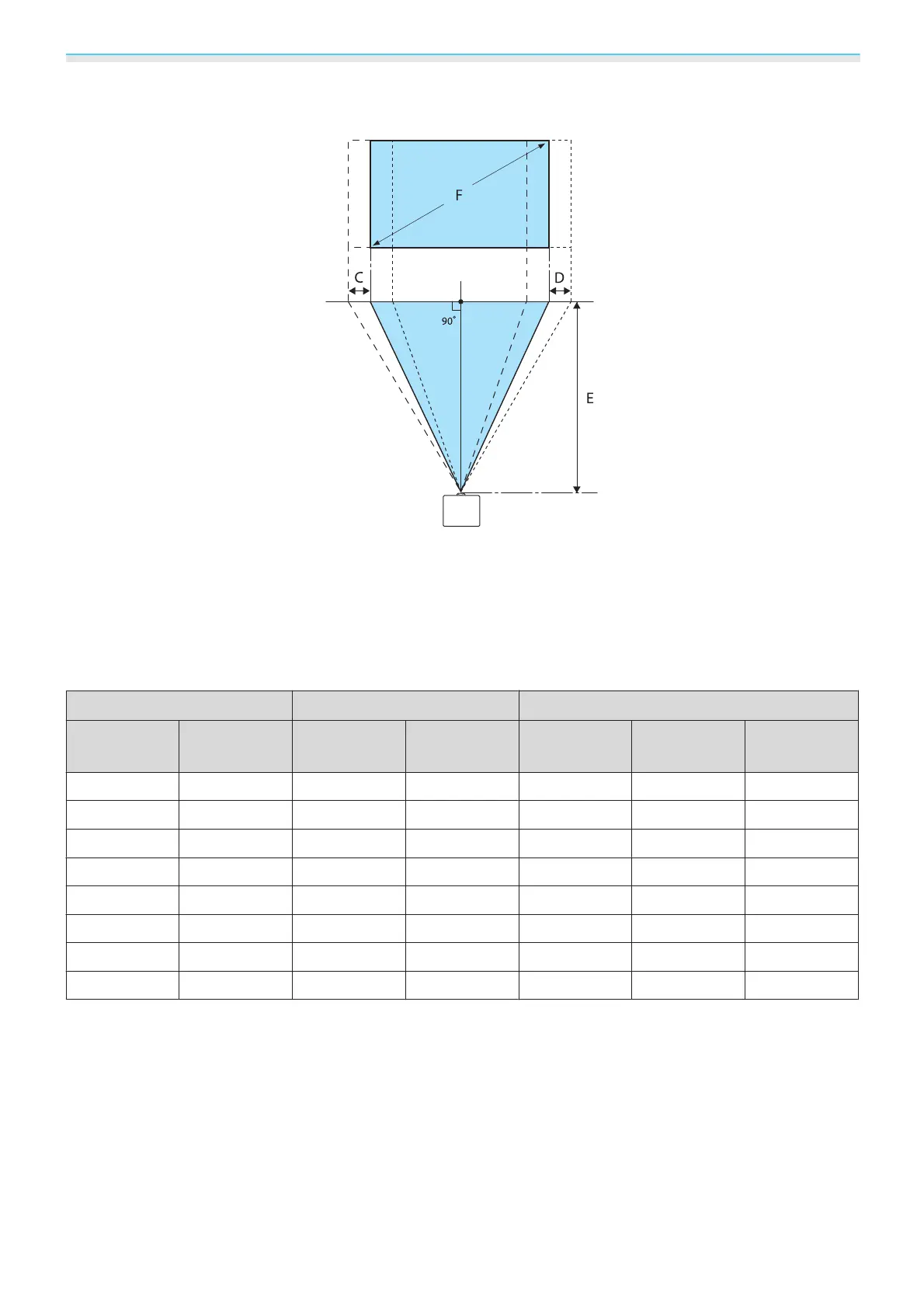

When adjusting the projection position horizontally in lens shift
C : Lens center movement distance when the projector is moved (when lens shift is set to maximum left)
D : Lens center movement distance when the projector is moved (when lens shift is set to maximum right)
E : Projection distance from the projector to the screen
F : Size of the projected image
Unit: cm
16:9 Screen Size Projection Distance (E) Lens Shift Maximum Values
*
F W x H Minimum
(Wide)
Maximum
(Tele)
Distance
(A)
Distance
(B)
Distance
(C, D)
50" 111 x 62 148 313 29 91 52
60" 133 x 75 178 376 35 109 63
80" 177 x 100 239 503 46 146 83
100" 221 x 125 300 630 58 182 104
150" 332 x 187 452 947 86 273 156
200" 443 x 249 604 1264 115 364 209
250" 553 x 311 756 1582 144 455 261
300" 664 x 374 908 1899 173 547 313
*
Vertical and horizontal lens shift cannot both be set to their maximum values. s p.30
Installation example (with 16:9 screen size and 100")
Side view

Epson EH-TW7300 Specifications

General

Matrix size	0.74 \
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	3 - 6.3 m
Projection technology	3LCD
Supported aspect ratios	4:3, 16:10
Contrast ratio (typical)	160000:1
Screen size compatibility	50 - 300 \
Projection distance (wide)	3 - 6 m
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	± 30 °
Full HD	Yes
Color modes (2D)	Bright cinema, Cinema, Dynamic, Natural
Color modes (3D)	Cinema, Dynamic
Video processing	10 bit
Supported 3D formats	Side by side, Top and bottom
Analog signal format system	-
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1152 x 864 (XGA+), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Focus	Auto
Focal length range	22.5 - 46.7 mm
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Noise level	20 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Serial interface type	RS-232
USB 2.0 ports quantity	2
S-Video inputs quantity	0
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	355 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Ethernet LAN data rates	10, 100 Mbit/s
Pallet width	800 mm
Pallet height	4630 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	450 mm
Width	520 mm
Height	170 mm
Weight	11000 g
Package depth	660 mm
Package width	515 mm
Package height	260 mm
Package weight	14384 g
