Epson EX7200 User Manual

38 Setting Up the Projector
Connecting an S-Video Source
1. Connect the S-Video cable to the S-Video connector on your
device and the
S-Video port on the projector.
2. If you want to play sound through the projector, see page 41 for
instructions on connecting an audio cable.
When you’ve finished making connections, see page 45 for
instructions on turning on the projector and Chapter 2 for
instructions on displaying and adjusting the image.
note
If the S-Video cable was not
p
rovided with your video
device, you can purchase one
f
rom Epson; see page 18.

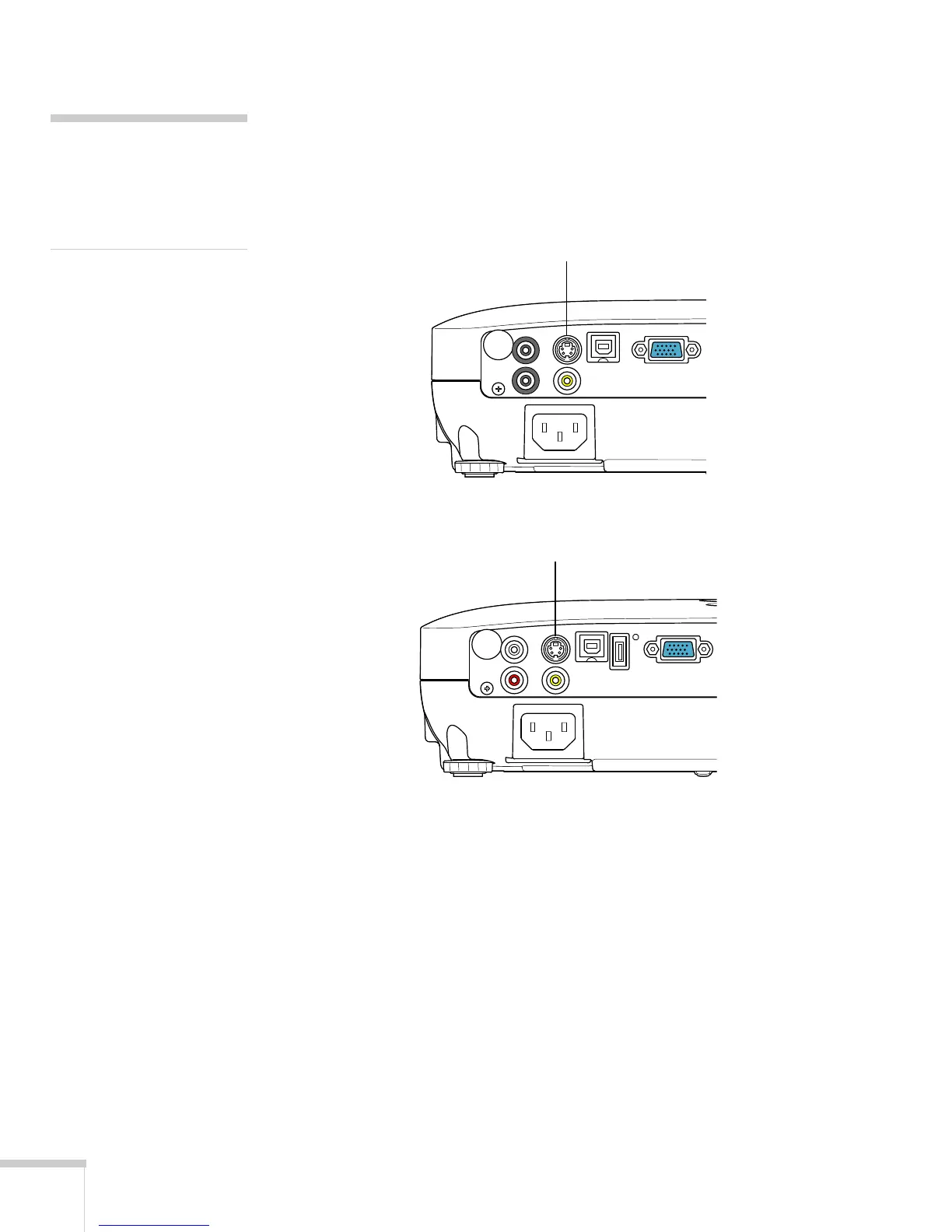

VS200/EX3200
S-Video port
EX5200/EX7200
S-Video port

Epson EX7200 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	16:10
Projection distance	0.84 - 8.13 m
Projection technology	3LCD
Supported aspect ratios	4:3
Contrast ratio (typical)	2000:1
Screen size compatibility	33 - 320 \
Projector native resolution	WXGA (1280x800)
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.58 - 1.72
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	-
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1440 x 900, 1024 x 768 (XGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA)
RMS rated power	1 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	280 W
Noise level	37 dB
Noise level (economic mode)	29 dB
Cables included	AC, VGA

Weight and Dimensions

Depth	228.6 mm
Width	294.6 mm
Height	76.2 mm
Weight	2300 g
