6 Computer (VGA) port

7 HDMI port

8 Speaker

9 Remote receiver

10 Video port

11 Wireless LAN module cover screw

Parent topic: Projector Part Locations

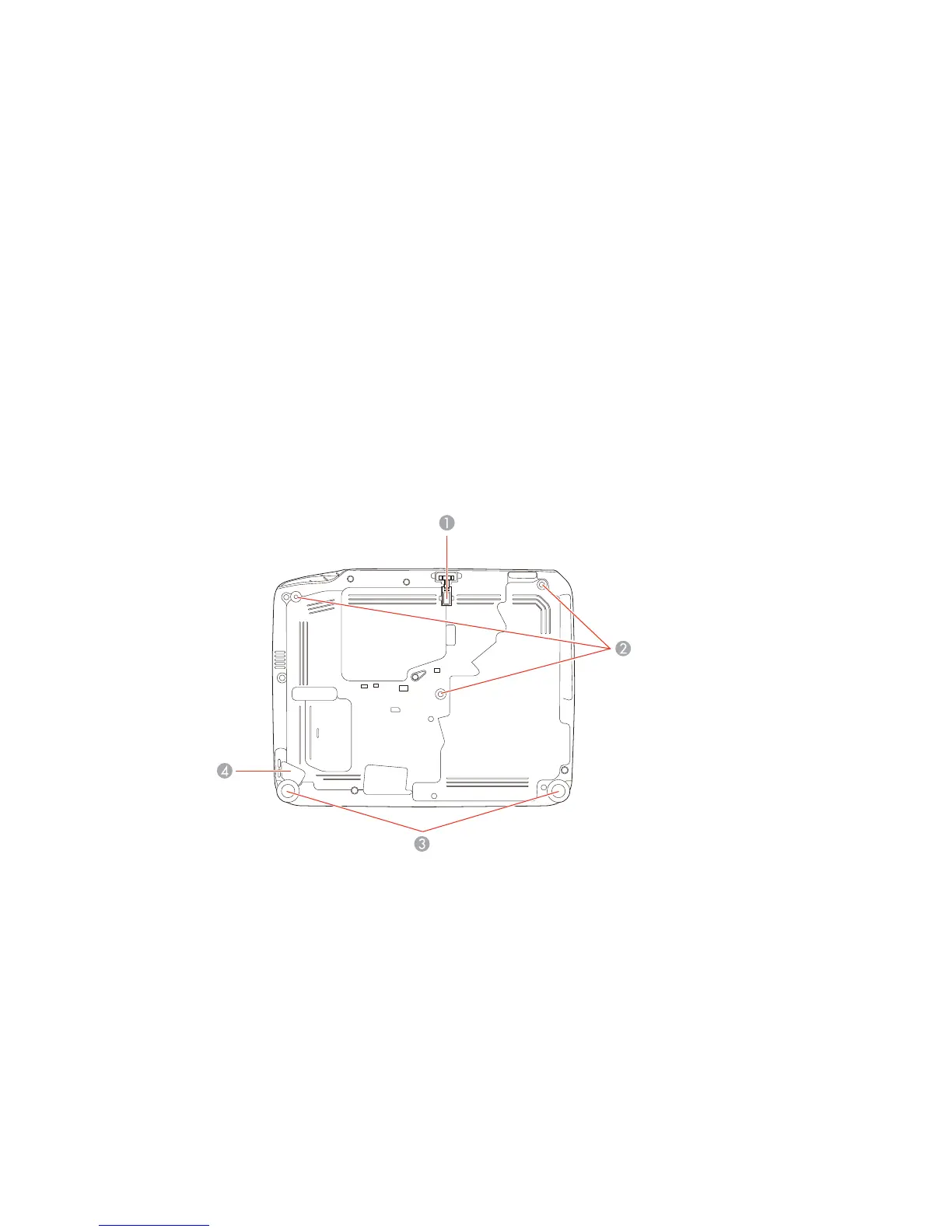

Projector Parts - Base
