Disassembly/Reassembly Overview 21
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
 Ink Supply Tank Assy

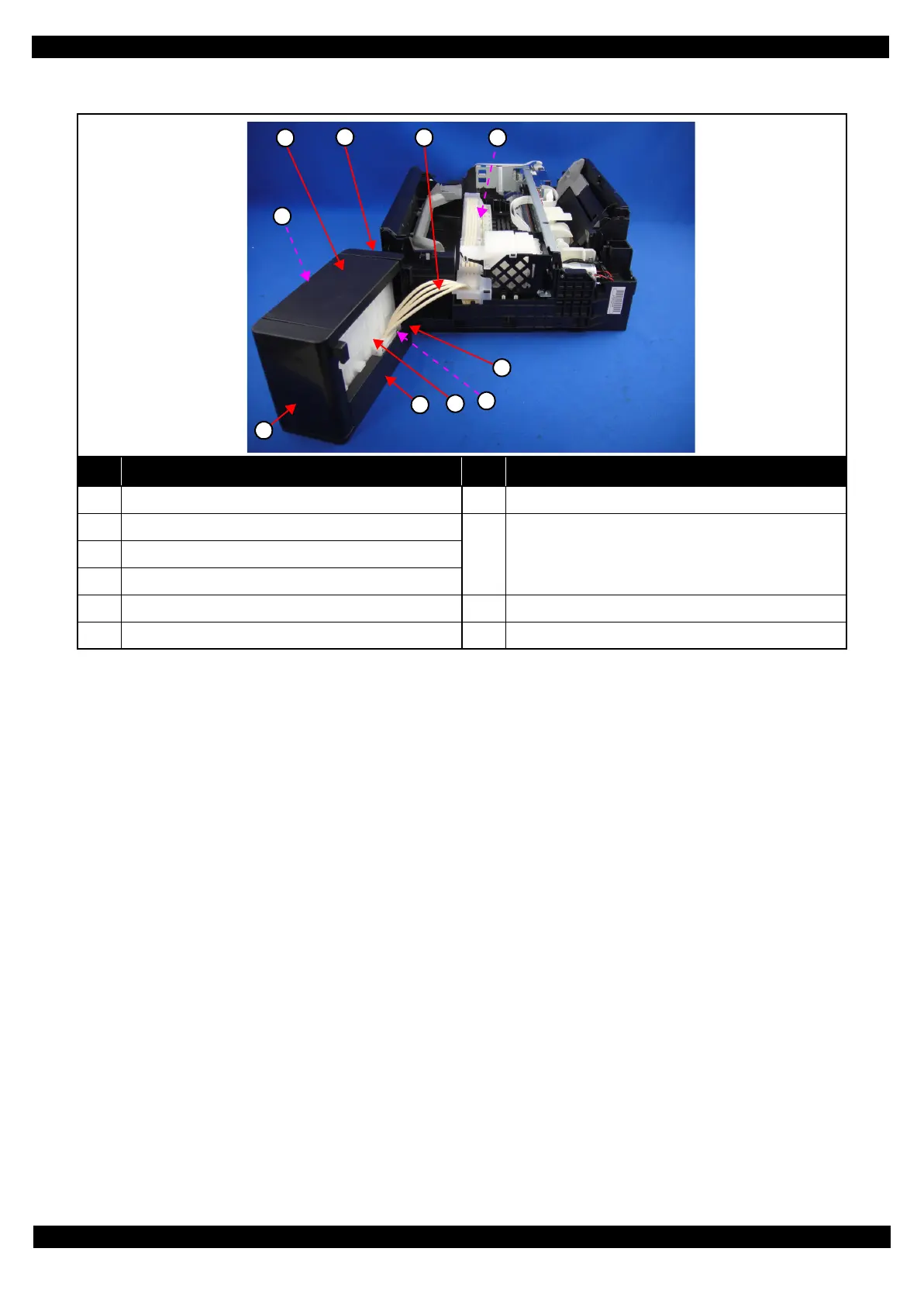

Figure 2-7. Ink Supply Tank Assy
No. Name No. Name
1 Cover Joint (p36) 7 Guide Tube Tank (p36)
2 Top Cover (p36)
8
Ink Supply Tank
Ink Supply Tank (Cyan) (p36)/Ink Supply Tank
(Magenta) (p36)/Ink Supply Tank (Yellow) (p36)/Ink
Supply Tank (Black) (p36)
3 Right Cover (p36)
4 Ink Supply Tank Tube Assy (p36)
5 Ink Supply Tube Assy (p37) 9 Bottom Cover (p36)
6 Cover Tube Tank (p36) 10 Left Cover (p36)
7
6
4
2
3
8
9
10
1
5

Epson L222 Specifications

General

Print Technology	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Minimum Ink Droplet Size	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Copy Function	Yes
Ink Tank System	Yes
Ink Bottle Capacity (Black)	70 ml
Output Paper Capacity	30 sheets
Connectivity	USB 2.0
Weight	4.4 kg
Scanner Type	Flatbed colour image scanner
Ink Bottle Capacity (Color)	70 ml (Cyan, Magenta, Yellow)
Paper Sizes Supported	A4, A5, A6, B5, Letter, Legal
Paper Capacity	100 sheets (A4 plain paper)
Operating System Compatibility	Windows XP / Vista / 7 / 8 / 8.1, Mac OS X
Input Paper Capacity	100 sheets (A4 plain paper)
