Epson L222 User Manual

Confidential
Appendix Connector Diagram 73
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
5.1 Connector Diagram
Cable connections of this printer are shown below.

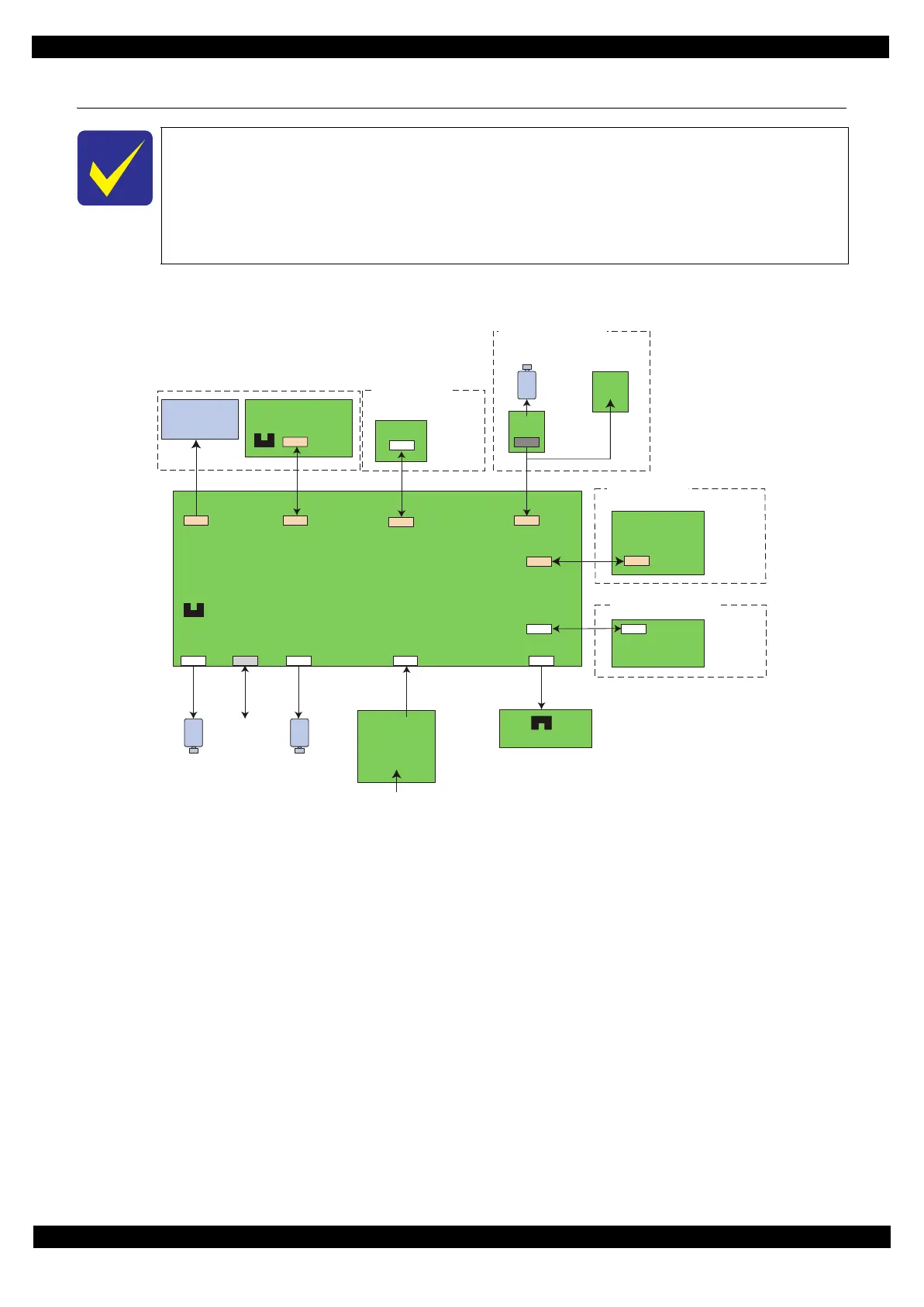

Figure 5-1. Connector Diagram
In this chapter, the product names are called as follows:
 L365/L366 Series:L365/L366
 L360/L362 Series:L360/L362/L363
 L310/L312 Series:L310/L312/L313
 L220/L222 Series:L210/L211
 L130/L132 Series:L110/L111
CN501 CN7CN13CN12
CN61 CN11
CN102
Printhead
CIS
PE Sensor
CR Motor
SCN Motor
PF Motor
USB
CN3
CN2
CN4
PF Encoder
CR Encoder
WiFi Board
AC in
PS Board
Main Board
Scanner Unit
CN1
CN1
Panel Board
CN1
CR Unit
Panel Unit
Paper Sensor Unit
CN1
CN1
Wireless Module

Epson L222 Specifications

General

Print Technology	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Minimum Ink Droplet Size	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Copy Function	Yes
Ink Tank System	Yes
Ink Bottle Capacity (Black)	70 ml
Output Paper Capacity	30 sheets
Connectivity	USB 2.0
Weight	4.4 kg
Scanner Type	Flatbed colour image scanner
Ink Bottle Capacity (Color)	70 ml (Cyan, Magenta, Yellow)
Paper Sizes Supported	A4, A5, A6, B5, Letter, Legal
Paper Capacity	100 sheets (A4 plain paper)
Operating System Compatibility	Windows XP / Vista / 7 / 8 / 8.1, Mac OS X
Input Paper Capacity	100 sheets (A4 plain paper)
