Disassembly/Reassembly Overview 26
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
2.1.5.2 Factors which Affect the Safety of Service Personnel such as Ink Leakage during
Operation
Ink may spill when removing the following parts from L365/L366,L360/L362,L310/L312,L220/L222,L130/
L132 Series.
This section describes the parts that may cause ink spill and the means to minimize the ink spill when removing
the parts.
THE PARTS THAT MAY CAUSE INK SPILL WHEN REMOVING
Note : These parts are indicated with the icon in disassembly/reassembly flowchart. (See "2.2 Disassembly/Reassembly Procedures
(p31)".)

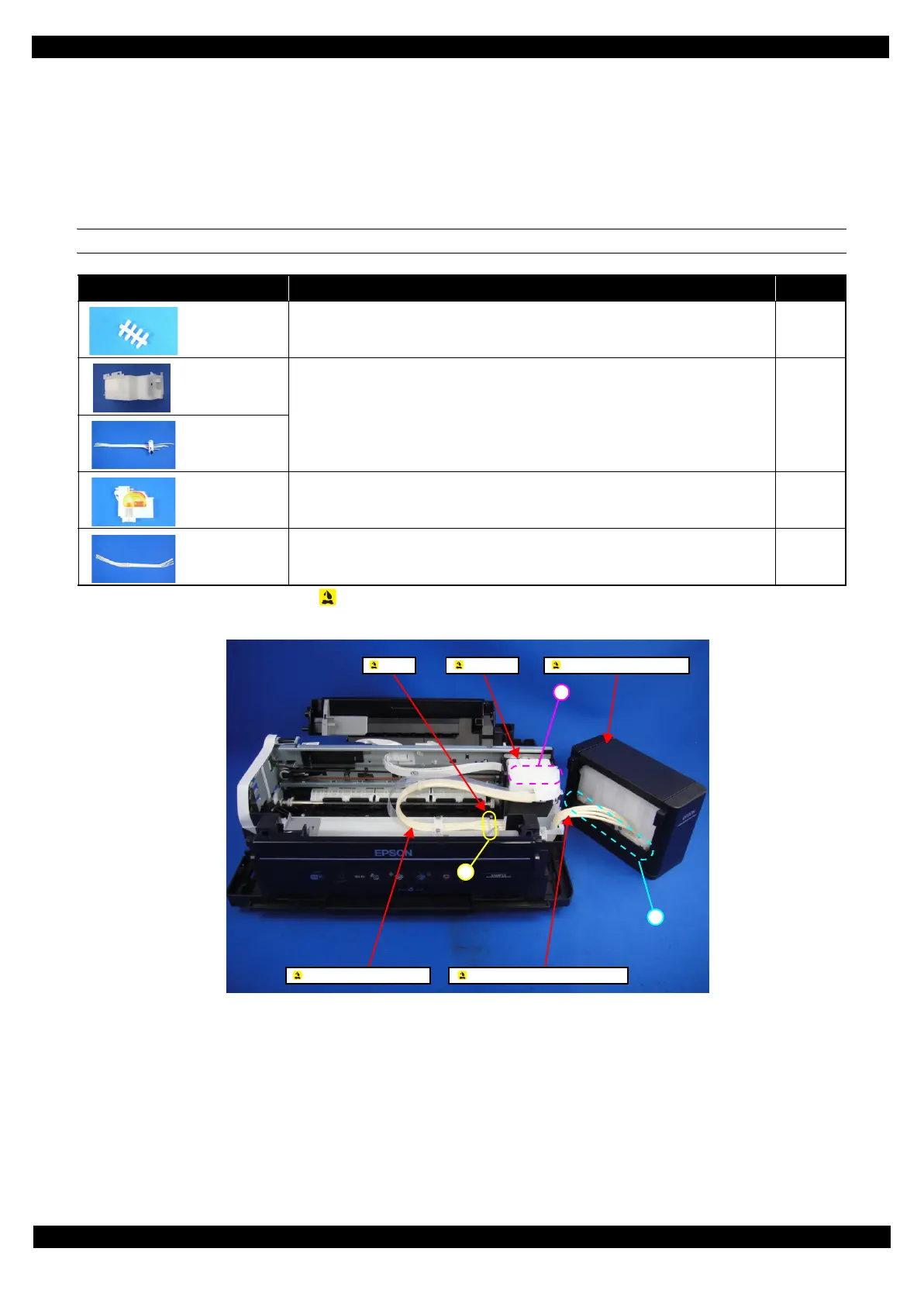

Figure 2-9. Location
Parts When ink may spill Location
Joint Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint A
Ink Supply
Tank
• Removing the tubes of the Ink Supply Tank Tube Assy from the Joint
• Removing the tubes of the Ink Supply Tank Tube Assy from the Ink Supply Tank
A, B
Ink Supply
Tank Tube Assy
Adapter Removing the Ink Supply Tube Assy from the Adapter C
Ink Supply
Tube Assy
• Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint
• Removing the Ink Supply Tube Assy from the Adapter
A, C
A
C
B
Joint Ink Supply Tank Assy
Ink Supply Tank Tube Assy Ink Supply Tube Assy
Adapter

Epson L222 Specifications

General

Print Technology	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Minimum Ink Droplet Size	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Copy Function	Yes
Ink Tank System	Yes
Ink Bottle Capacity (Black)	70 ml
Output Paper Capacity	30 sheets
Connectivity	USB 2.0
Weight	4.4 kg
Scanner Type	Flatbed colour image scanner
Ink Bottle Capacity (Color)	70 ml (Cyan, Magenta, Yellow)
Paper Sizes Supported	A4, A5, A6, B5, Letter, Legal
Paper Capacity	100 sheets (A4 plain paper)
Operating System Compatibility	Windows XP / Vista / 7 / 8 / 8.1, Mac OS X
Input Paper Capacity	100 sheets (A4 plain paper)
