Appendix Protection for Transportation 78
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
5.3.3 Securing the Ink Supply Tank Assy/Top Cover
 Purpose
To prevent damage on the Ink Supply Tank Assy/Top Cover from shock during transportation.
 Risks if it is not performed
Damage on the Ink Supply Tank Assy/Top Cover.
 Preparation

Ink Supply Tank Assy
Prepare a piece of strong tape (length: 160 mm, width: 22 mm, fold one end 5 mm).
 Top Cover
Prepare two pieces of strong tape (length: 65 mm, width: 22 mm, fold one end 5 mm).
 Method

Ink Supply Tank Assy
Attach strong tape along the shapes of the Tank Assy as shown in Fig.5-5 to Secure the Frame Base and Ink Supply
Tank Assy with strong tape .
 Top Cover
Attach strong tape along the shapes of the Tank Assy as shown in Fig.5-5 to Secure the Ink Supply Tank Assy and
Top Cover with strong tape (x2).

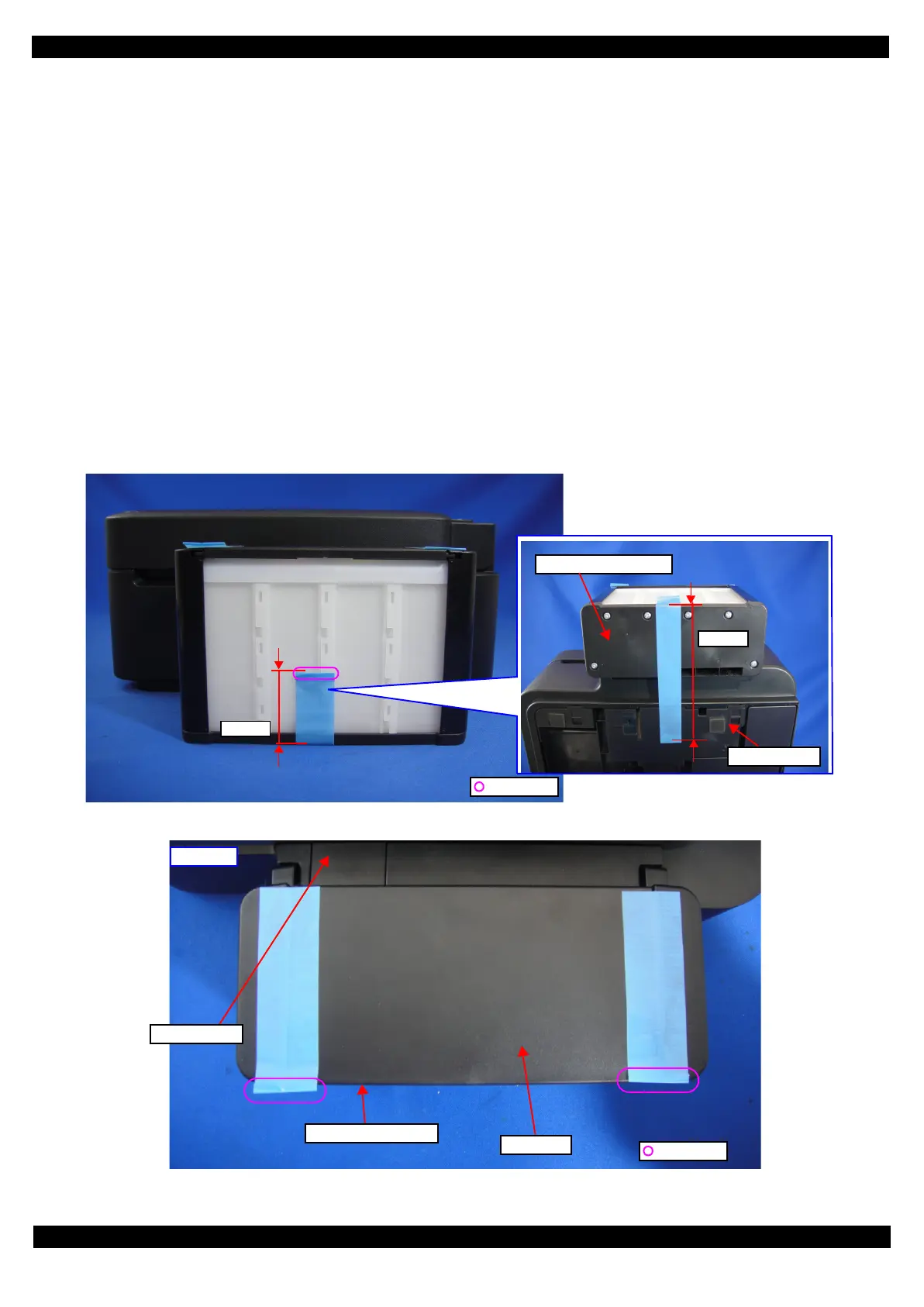

Figure 5-5. Securing the Ink Supply Tank Assy
Figure 5-6. Securing the Top Cover
140mm
Frame Base
Ink Supply Tank Assy
20mm
Folded ends
Right side
Top Cover
Housing Righr
Ink Supply Tank Assy
Folded ends

Epson L366 Specifications

General

Printer Type	Inkjet
Print Resolution	5760 x 1440 dpi
Printing Technology	On-demand inkjet (Piezoelectric)
Minimum Ink Droplet Volume	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed
Scanner Resolution	600 x 1200 dpi
Ink Technology	Dye Ink
Ink Bottle Capacity (Black)	70 ml
Connectivity	USB 2.0
Weight	4.4 kg
Ink Bottle Capacity (Color)	70 ml
Paper Size	A4, A5, A6, B5, C6, DL
Paper Handling Input	100 sheets
Operating System Support	Windows, Mac
Dimensions	472‎ x 300 x 145 mm (Width x Depth x Height)
