Disassembly/Reassembly Overview 18
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A

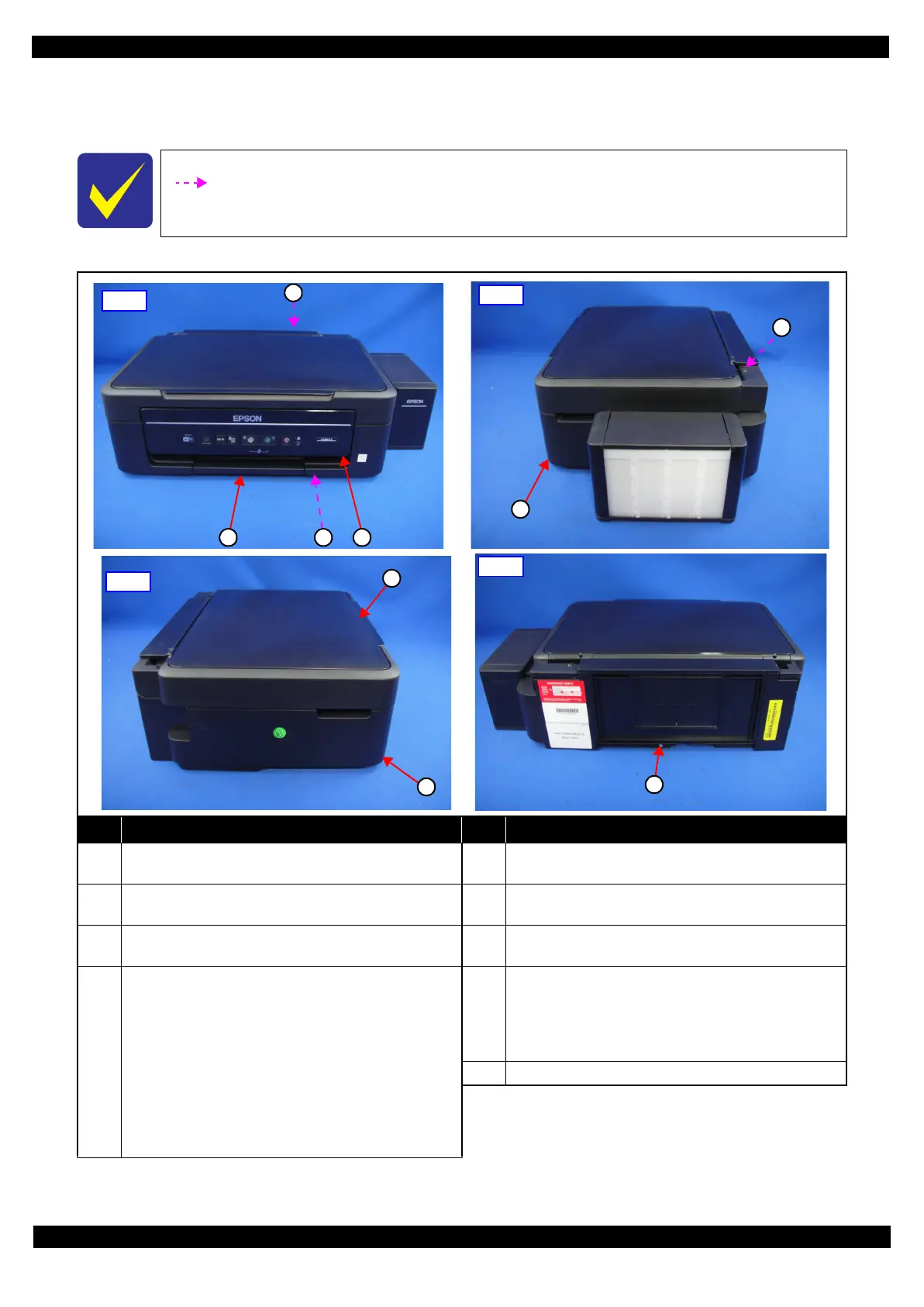

2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
 Exterior parts
Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1
Housing Rear (p33) (L365/L366,L360/L362,L220/L222
Series only)
5
Hinge (p37) (L365/L366,L360/L362,L220/L222 Series
only)
2 Tray Front Assy (p33) 6
Housing Right (p37) (L365/L366,L360/L362,L220/L222
Series only)
3
Frame Base Assy (p35)
7
Housing Left (p33) (L365/L366,L360/L362,L220/L222
Series only)
4
Panel Unit
• L365/L366 Series (p 35)
Panel Board Assy (p38) / Panel Buttons (p38) /
Panel Housing Upper Assy (p38) / Panel Housing
Lower Assy (p38)
• L360/L362,L220/L222 Series (p 35)
Panel Board Assy (p38) / Panel Buttons (p38) /
Panel Housing Upper Assy (p38) / Panel Housing
Lower Assy (p38)
8
Scanner Unit (p33) (L365/L366,L360/L362,L220/L222
Series only)
Scanner Housing Upper (p37) / Scanner Carriage Unit
(p37) / Scanner Housing Lower (p37) / CIS Module
Unit (p37) / Scanner Motor (p37)
9 Paper Support Assy (p33)
1
2 3 4
Front
5
6
Right
9
Rear
8
7
Left

Epson L366 Specifications

General

Printer Type	Inkjet
Print Resolution	5760 x 1440 dpi
Printing Technology	On-demand inkjet (Piezoelectric)
Minimum Ink Droplet Volume	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed
Scanner Resolution	600 x 1200 dpi
Ink Technology	Dye Ink
Ink Bottle Capacity (Black)	70 ml
Connectivity	USB 2.0
Weight	4.4 kg
Ink Bottle Capacity (Color)	70 ml
Paper Size	A4, A5, A6, B5, C6, DL
Paper Handling Input	100 sheets
Operating System Support	Windows, Mac
Dimensions	472‎ x 300 x 145 mm (Width x Depth x Height)
