Disassembly/Reassembly Overview 19
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
 Printer mechanism

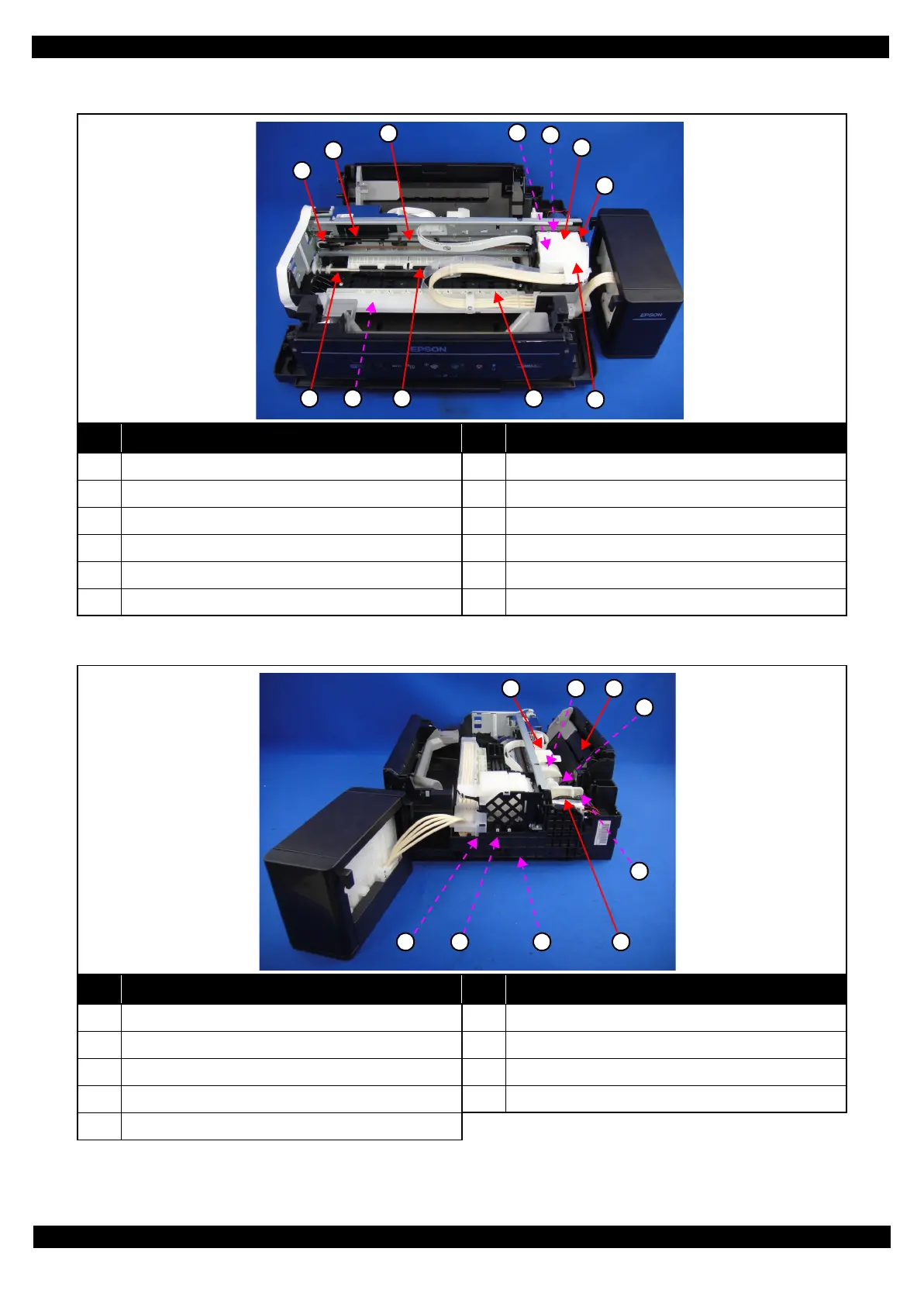

Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p35) 7 CR Unit (p39)
2 CR Scale (p35) 8 PF Roller Unit (p39)
3 CR Timing Belt (p39) 9 Star Wheel Holder Assy (p37)
4 Printhead (p33) 10 Paper Guide Upper Assy (p39)
5 CR Encoder Sensor (p39) 11 Paper Guide Front Unit (p33)
6 Adapter (p37) 12 Adapter Cover (p37)
No. Name No. Name
1 LD Roller Cover (p35) 6 Cap Lever (p37)
2 LD Roller Assy (p35) 7 Cap Assy (p37)
3 Hopper (p35) 8 Porous Pad for Cap Assy (p37)
4 Retard Roller Assy (p33) 9 Pump Unit (p39)
5 Paper Back Lever (p33)
1
2
3
5
8 11
7
10
4
9
6
12
6 7 8 9
5
4
31 2

Epson L366 Specifications

General

Printer Type	Inkjet
Print Resolution	5760 x 1440 dpi
Printing Technology	On-demand inkjet (Piezoelectric)
Minimum Ink Droplet Volume	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed
Scanner Resolution	600 x 1200 dpi
Ink Technology	Dye Ink
Ink Bottle Capacity (Black)	70 ml
Connectivity	USB 2.0
Weight	4.4 kg
Ink Bottle Capacity (Color)	70 ml
Paper Size	A4, A5, A6, B5, C6, DL
Paper Handling Input	100 sheets
Operating System Support	Windows, Mac
Dimensions	472‎ x 300 x 145 mm (Width x Depth x Height)
