Epson L366 User Manual

Confidential
Disassembly/Reassembly Overview 20
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A

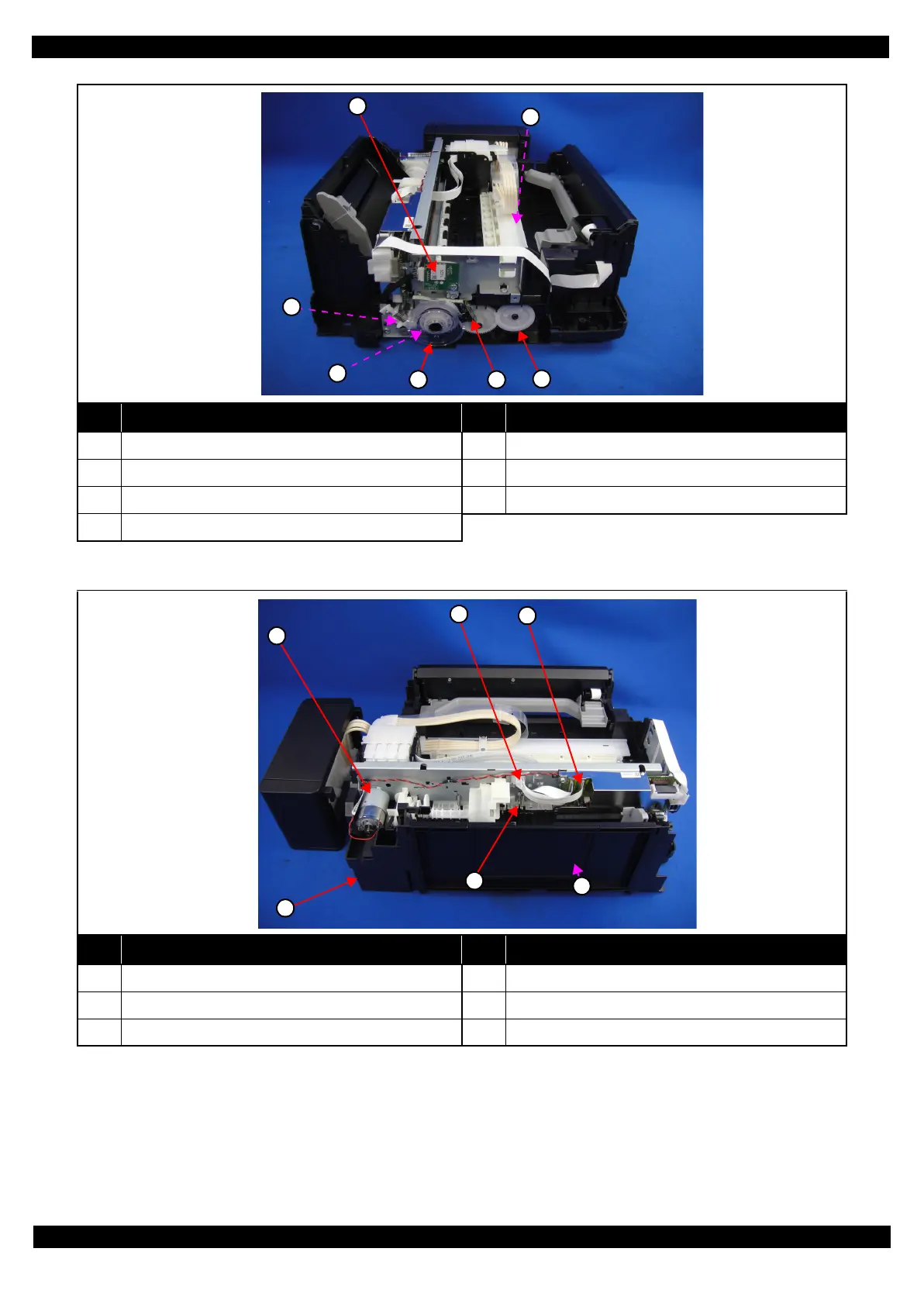

Figure 2-5. Printer Mechanism: Left
Figure 2-6. Printer Mechanism: Rear
No. Name No. Name
1 Wireless LAN Module (p33) (L365/L366 Series only) 5 PF Scale (p36)
2 EJ Roller (p37) 6 PF Encoder Sensor (p36)
3 PF Motor Assy (p39) 7 EJ Roller Gear (p33)
4 PF Timing Belt (p36)
No. Name No. Name
1 CR Motor (p35) 4 Waste Ink Pad Assy (p33)
2 Head FFC (p39) 5 PE Sensor Lever (p35)
3 Main Board (p35) 6 PS Unit (p33)
3
1
2
7
4
5 6
1
2
4
5
6
3

Epson L366 Specifications

General

Printer Type	Inkjet
Print Resolution	5760 x 1440 dpi
Printing Technology	On-demand inkjet (Piezoelectric)
Minimum Ink Droplet Volume	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed
Scanner Resolution	600 x 1200 dpi
Ink Technology	Dye Ink
Ink Bottle Capacity (Black)	70 ml
Connectivity	USB 2.0
Weight	4.4 kg
Ink Bottle Capacity (Color)	70 ml
Paper Size	A4, A5, A6, B5, C6, DL
Paper Handling Input	100 sheets
Operating System Support	Windows, Mac
Dimensions	472‎ x 300 x 145 mm (Width x Depth x Height)
