Epson L366 User Manual

L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
Confidential
Disassembly/Reassembly 39

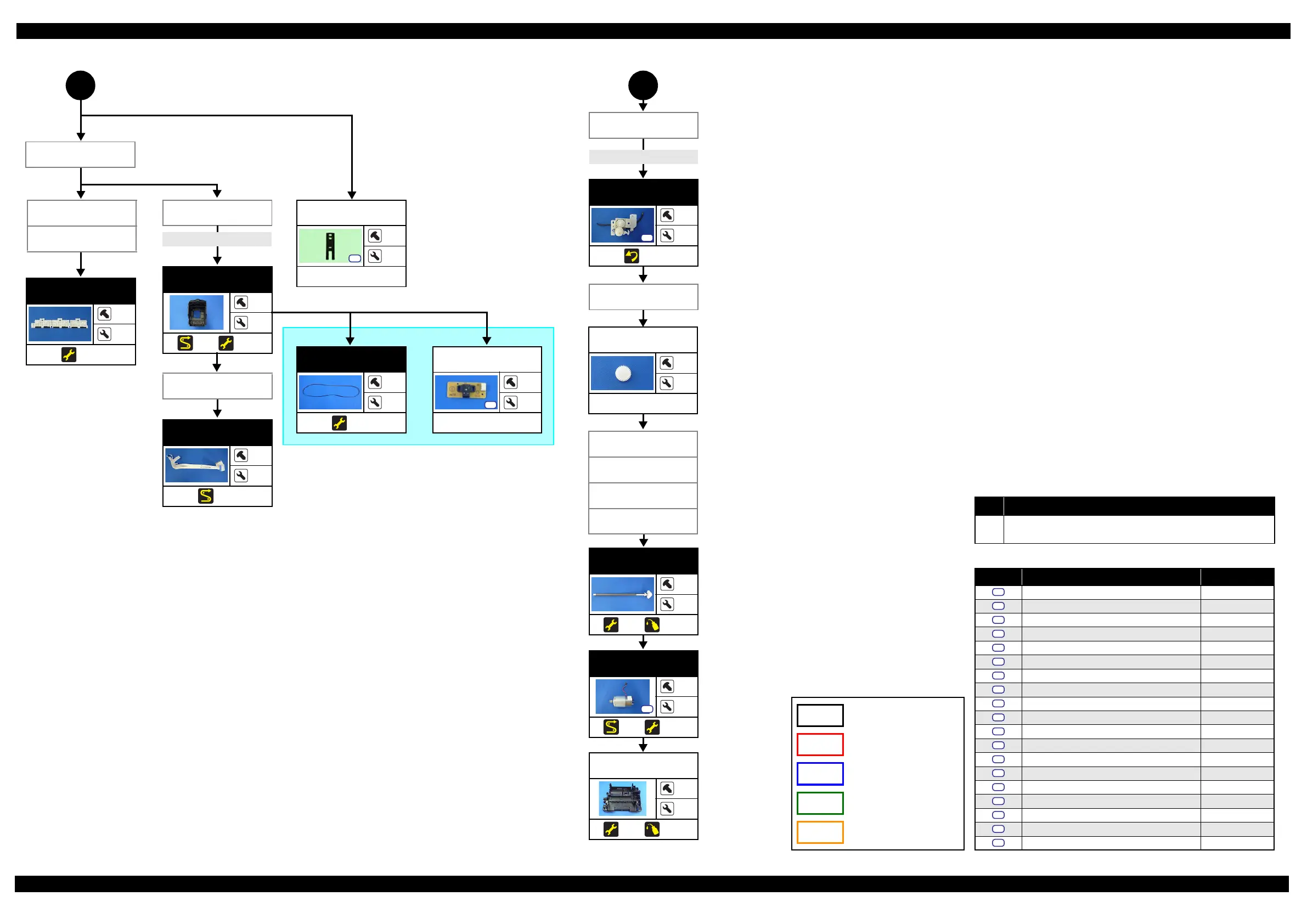

Flowchart 2-7. Disassembly Flowchart (7)
7 8
(p 35) (p 35)
Paper Guide
Upper Assy
---
6
(p 53)
Spur Gear 16.5
---
---
---
Main Board
(p35)
PE Sensor Lever
(p35)
Shield Plate
(p35)
CR Motor (p35)
CR Unit
---
---
(p 51) (p 53)
Head FFC
---
---
(p 51)
CR Timing Belt
---
1
(p 53)
CR Encoder
Sensor
1
1
---
S9
Pump Unit
1
1
(p 45)
S4
PF Roller Unit
---
---
(p 53) (p 65)
Frame Base
---
---
(p 53) (p 65)
PF Motor Assy
1
---
(p 52) (p 53)
S4
FFC/cable list
No. FFC/Cable
8
 Disconnect the CR Encoder FFC.
 Pull out the Head FFC from the hole of the CR Unit.
 FFC/Cable* 8
 Pump Tube
Cap Assy (p37)
Paper Guide
Front Unit (p33)
EJ Roller Gear
(p33)
PF Driven Pul-
ley Assy (p36)
PF Timing Belt
(p36)
Antistatic Cloth
1
---
---
S6
FFC Holder
(p33)
PF Grounding
Spring (p36)
L365/L366 Series specific parts/
unit
L365/L366,L360/L362,L220/
L222 Series specific parts/unit
L310/L312,L130/L132 Series
specific parts/unit
L210/L222,L130/L132 Series
specific parts/unit
Common parts/unit
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 3 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 4
± 0.5 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.P SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.P.F.B-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.P.S-TITE (P2) SCREW 3x6 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 5
± 0.5 kgf·cm
C.P SCREW 2.6x3 F/ZN-3C 4 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x4 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN 2 ± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN 25
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN 4 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN 6
± 1 kgf·cm
C.B.P-TITE SCREW 2.6x5 F/ZN 3 ± 0.5 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN 3
± 0.5 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19

Epson L366 Specifications

General

Printer Type	Inkjet
Print Resolution	5760 x 1440 dpi
Printing Technology	On-demand inkjet (Piezoelectric)
Minimum Ink Droplet Volume	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed
Scanner Resolution	600 x 1200 dpi
Ink Technology	Dye Ink
Ink Bottle Capacity (Black)	70 ml
Connectivity	USB 2.0
Weight	4.4 kg
Ink Bottle Capacity (Color)	70 ml
Paper Size	A4, A5, A6, B5, C6, DL
Paper Handling Input	100 sheets
Operating System Support	Windows, Mac
Dimensions	472‎ x 300 x 145 mm (Width x Depth x Height)
