Epson M105 Service Manual

Confidential
Disassembly/Reassembly Overview 21
M200 / M205 / M100 / M105 Series Revision A
 Printer mechanism

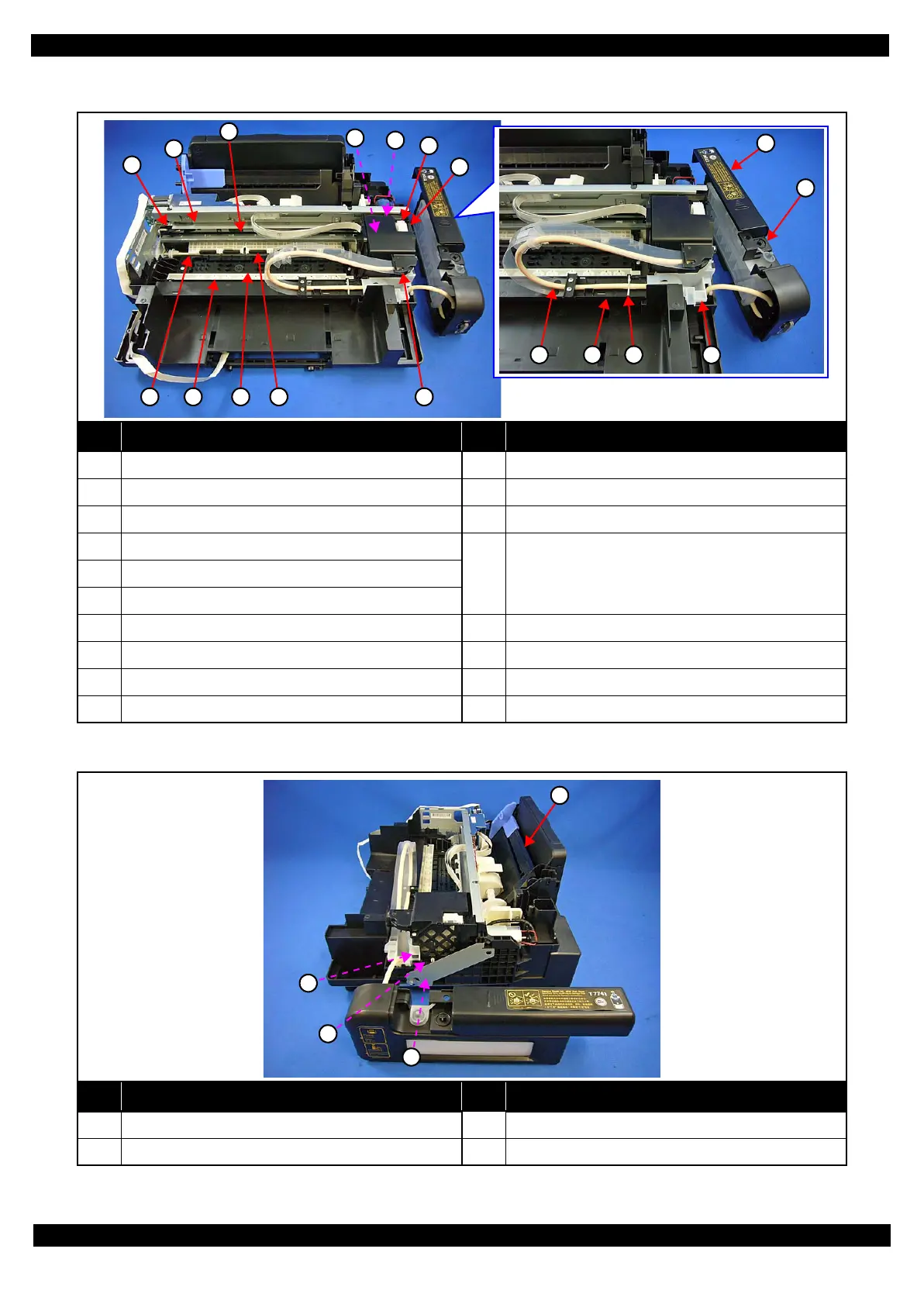

Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p41) 11 Paper Guide Upper Assy (p44)
2 CR Scale (p41) 12 Adapter Cover (p35)
3 CR Timing Belt (p44) 13 Ink Supply Tank Cover (p34)
4 Printhead (p34)
14
Ink Supply Tank Assy (p35)
Cap (p35) / Valve Lever (p43) / Ink Supply Tank Tube
Assy (p43) / Housing Ink Supply Tank (p43) / Ink
Supply Tank (p43)
5 CR Encoder Sensor (p44)
6 Adapter (p35)
7 CR Unit (p44) 15 Ink Supply Tube Guide 1st (p35)
8 PF Roller Unit (p44) 16 Joint (p35)
9 Star Wheel Holder Assy (p36) 17 Ink Supply Tube Guide 2nd (p35)
10 Paper Guide Front Unit (p34) 18 Ink Supply Tube (p35)
No. Name No. Name
1 Hopper (p45) 3 Cap Assy (p36)
2 Cap Lever (p39) 4 Porous Pad for Cap Assy (p36)
1
2
3
5
8 9
7
10
4
11
13
14
15161718
12
6
3
4
1
2

Epson M105 Specifications

General

Print Technology	Inkjet
Print Speed Black	Up to 34 ppm
Print Resolution	1440 x 720 dpi
Connectivity	USB 2.0
Duplex Printing	Manual
Ink Type	Pigment-based
Ink Colors	Black
Functions	Print
Weight	3.4 kg
Print Speed	Up to 34 ppm
Print Speed (Color)	Up to 18 ppm
Paper Size	A4, A5, A6, B5, DL
Input Tray Capacity	100 sheets
Operating System Support	Windows, macOS
