Epson M105 Service Manual

Confidential
Disassembly/Reassembly Overview 22
M200 / M205 / M100 / M105 Series Revision A

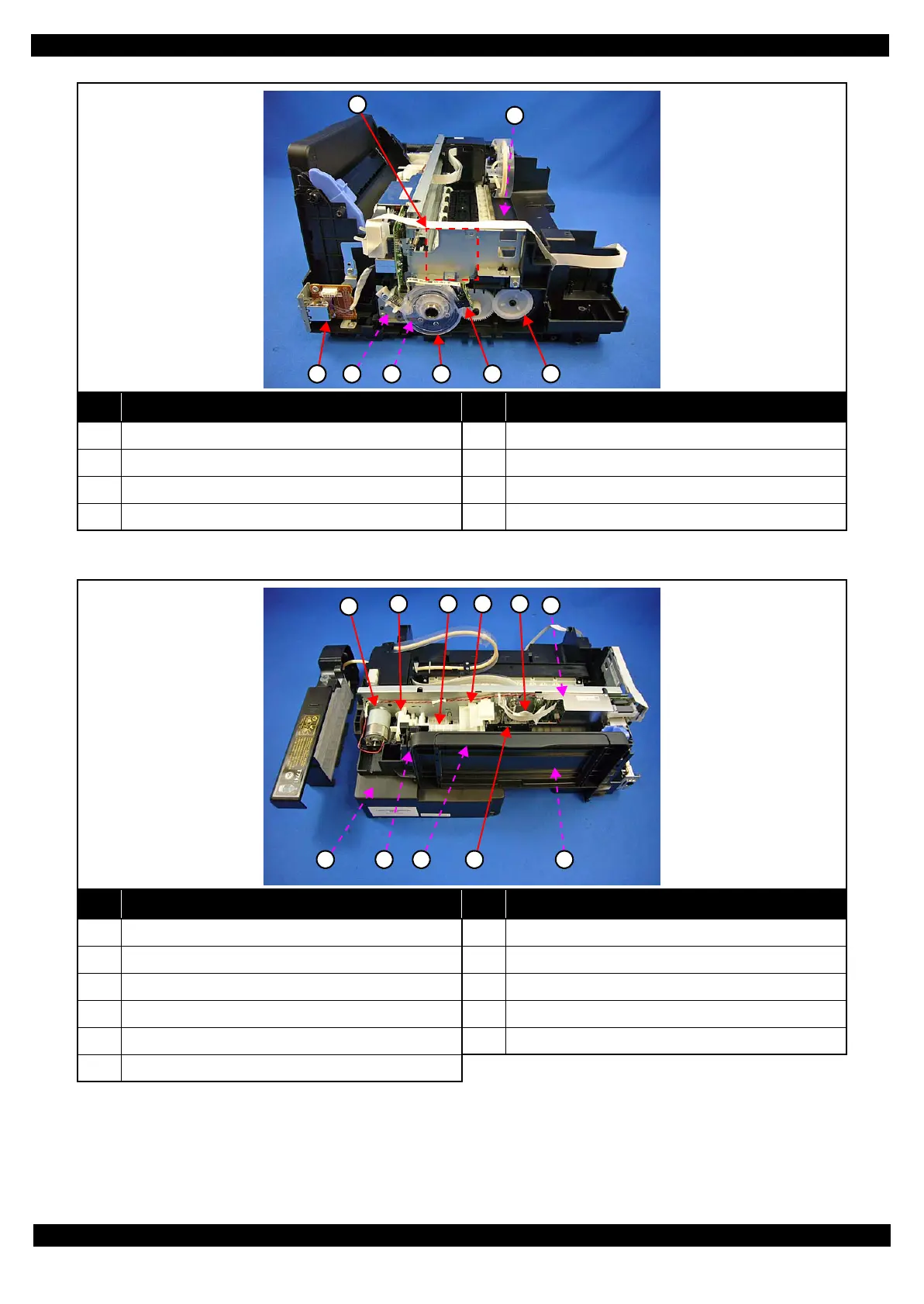

Figure 2-5. Printer Mechanism: Left
Figure 2-6. Printer Mechanism: Rear
No. Name No. Name
1 Wireless LAN Module (p40) (M205/M105 Series) 5 PF Timingbelt (p40)
2 EJ Roller (p36) 6 PF Scale (p40)
3 Ethernet Board Assy (p36) (M200/M100 Series) 7 PF Encoder Sensor (p40)
4 PF Motor Assy (p44) 8 EJ Roller Gear (p40)
No. Name No. Name
1 CR Motor (p40) 7 Waste Ink Pad Assy (p34)
2 Pump Unit (p44) 8 Paper Back Lever (p34)
3 LD Roller Assy (p40) 9 Retard Roller Assy (p34)
4 LD Roller Cover (p41) 10 PE Sensor Lever (p40)
5 Head FFC (p44) 11 PS Unit (p40)
6 Main Board (p40)
1
2
8
4 6 73 5
1
3
6
10 117
2 4 5
8 9

Epson M105 Specifications

General

Print Technology	Inkjet
Print Speed Black	Up to 34 ppm
Print Resolution	1440 x 720 dpi
Connectivity	USB 2.0
Duplex Printing	Manual
Ink Type	Pigment-based
Ink Colors	Black
Functions	Print
Weight	3.4 kg
Print Speed	Up to 34 ppm
Print Speed (Color)	Up to 18 ppm
Paper Size	A4, A5, A6, B5, DL
Input Tray Capacity	100 sheets
Operating System Support	Windows, macOS
