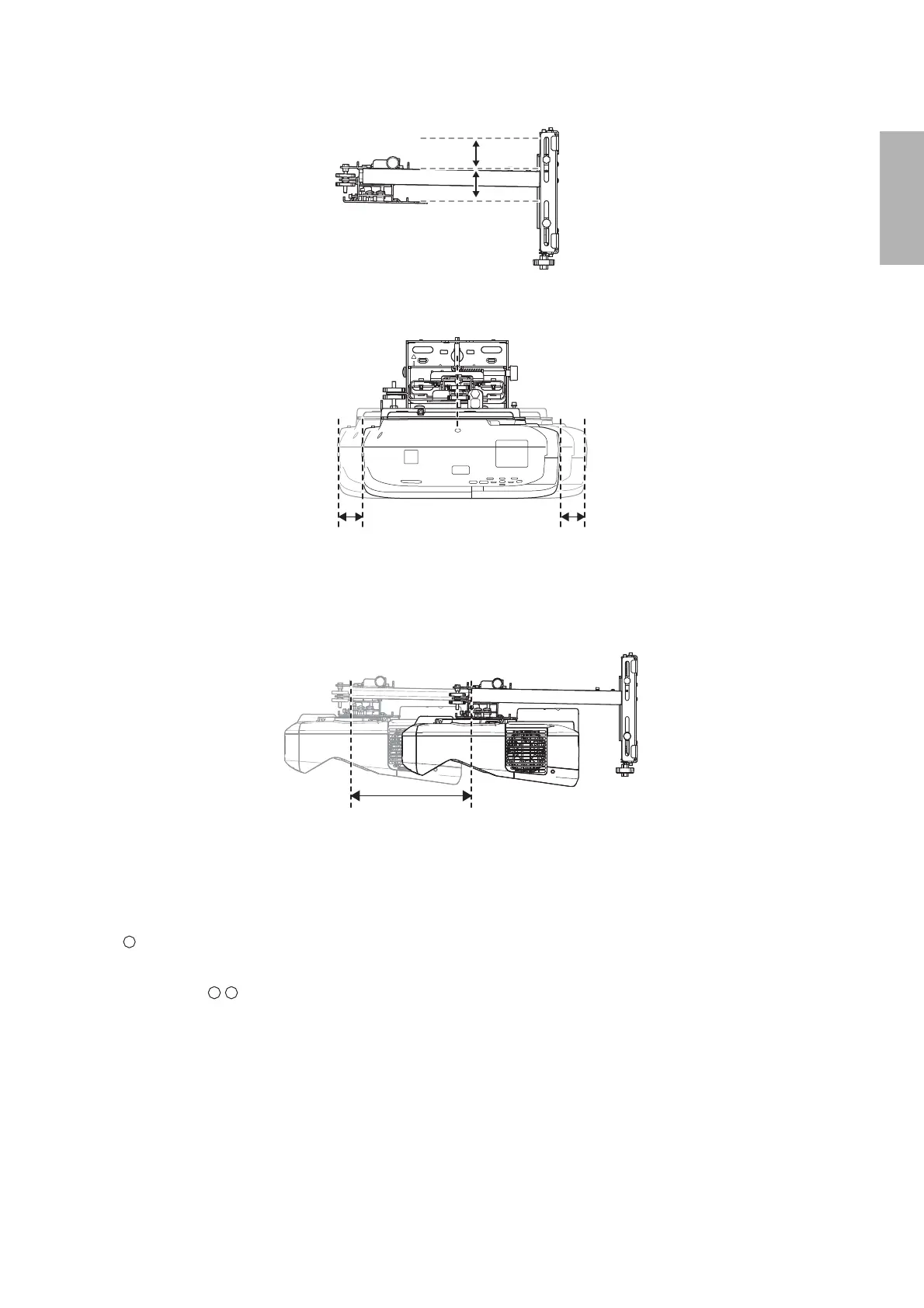

Vertical slide adjustment range
Horizontal slide adjustment range
Forward/backward slide adjustment range
Arm slide adjustment range
Adjustment from 3-axis adjustment unit installation position
By changing the installation position of the 3-axis adjustment unit to the front or back, you can adjust the
installation position of the projector.
When the screen size is less than 75 inches (85 inches for WUXGA images), install it at the position marked with
a stamp on the mount arm.
When the screen size is 75 inches or more (85 inches or more for WUXGA images), install it at the position
marked with a stamp on the mount arm.
1.5 in. (38 mm)
1.5 in. (38 mm)
1.8 in. (45 mm) 1.8 in. (45 mm)
