175

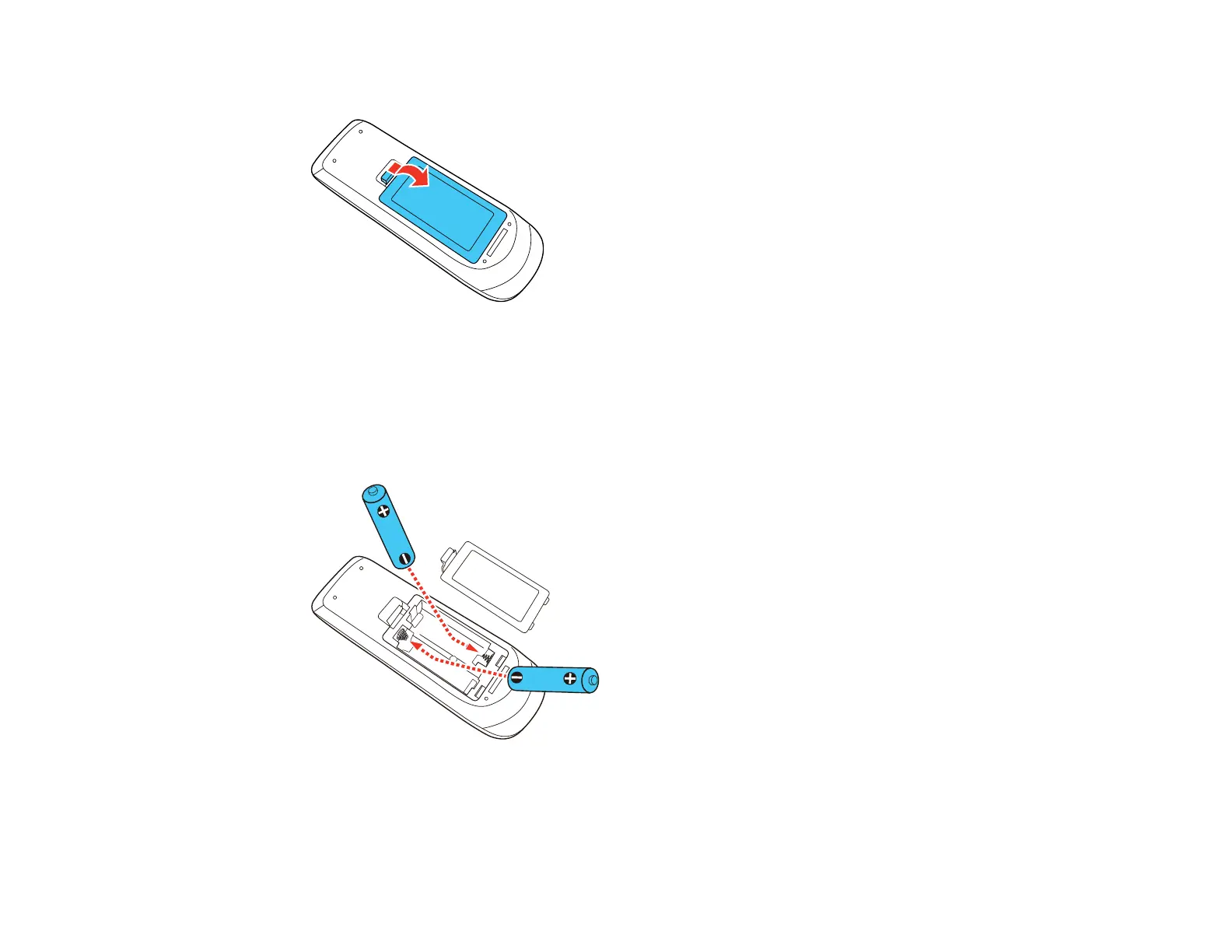

1.
Remove
the
battery
cover
as
shown.
2.
Remove
the
old
batteries.
Warning:
If
the
battery
fluid
has
leaked,
wipe
it
away
with
a
soft
cloth
and
avoid
getting
the
fluid
on
your
hands.
If
it
gets
on
your
hands,
wash
them
immediately
to
avoid
injury.
3.
Insert
the
batteries
with
the
+
and
–
ends
facing
as
shown.
174
176
Table of Contents
Table of Contents
3
Powerlite 675W/680/685W User's Guide
11
Introduction to Your Projector
12
Projector Features
12
Product Box Contents
13
Additional Components
15
Additional Projector Software and Manuals
15
Optional Equipment and Replacement Parts
16
Warranty and Registration Information
17
Notations Used in the Documentation
18
Where to Go for Additional Information
18
Projector Part Locations
18
Projector Parts - Front/Top
19
Projector Parts - Side
20
Projector Parts - Interface Panel
21
Projector Parts - Base
22
Projector Parts - Control Panel
23
Projector Parts - Remote Control
25
Setting up the Projector
28
Projector Placement
28
Projector Setup and Installation Options
28
Projection Distance
30
Removing and Attaching the Cable Cover
30
Projector Connections
32
Connecting to Computer Sources
32
Connecting to a Computer for USB Video and Audio
32
Connecting to a Computer for VGA Video
33
Connecting to a Computer for HDMI Video and Audio
34
Connecting to a Computer for USB Mouse Control
35
Connecting to a Computer for Sound
36
Connecting to Video Sources
36
Connecting to an HDMI Video Source
37
Connecting to an MHL-Compatible Device
37
Connecting to a Component Video Source
38
Connecting to a Composite Video Source
39
Connecting to a Video Source for Sound
40
Connecting to an External Computer Monitor
41
Connecting to External Speakers
41
Connecting a Microphone
42
Connecting to External USB Devices
43
USB Device Projection
43
Connecting a USB Device or Camera to the Projector
44
Selecting the Connected USB Source
45
Disconnecting a USB Device or Camera from the Projector
45
Connecting to a Document Camera
45
Installing Batteries in the Remote Control
46
Using the Projector on a Network
49
Wired Network Projection
49
Connecting to a Wired Network
49
Selecting Wired Network Settings
50
Wireless Network Projection
53
Installing the Wireless LAN Module
54
Using Quick Wireless Connection (Windows)
56
Selecting Wireless Network Settings Manually
58
Wireless LAN Menu Settings
61
Selecting Wireless Network Settings in Windows
62
Selecting Wireless Network Settings on Mac
62
Setting up Wireless Network Security
62
Connecting Directly to a Smartphone or Tablet
63
Setting up Projector Network E-Mail Alerts
65
Network Projector E-Mail Alert Messages
67
Setting up Monitoring Using SNMP
67
Controlling a Networked Projector Using a Web Browser
69
Crestron Roomview Support
72
Setting up Crestron Roomview Support
73
Controlling a Networked Projector Using Crestron Roomview
74
Using Basic Projector Features
76
Turning on the Projector
76
Turning off the Projector
78
Selecting the Language for the Projector Menus
79
Image Shape
80
Correcting Image Shape with the Keystone Buttons
80
Correcting Image Shape with Quick Corner
82
Correcting Image Shape with Arc Correction
83
Resizing the Image with the Wide and Tele Buttons
85
Adjusting the Image Position
86
Focusing the Image
87
Remote Control Operation
88
Using the Remote Control as a Wireless Mouse
90
Using the Remote Control as a Pointer
91
Selecting an Image Source
91
Projection Modes
93
Changing the Projection Mode Using the Remote Control
94
Changing the Projection Mode Using the Menus
94
Image Aspect Ratio
95
Changing the Image Aspect Ratio
96
Available Image Aspect Ratios
96
Color Mode
97
Changing the Color Mode
98
Available Color Modes
98
Turning on Auto Iris
99
Controlling the Volume with the Volume Buttons
100
Projecting a PC Free Presentation
100
Supported PC Free File Types
101
Starting a PC Free Slide Show
102
Starting a PC Free Movie Presentation
103
PC Free Display Options
105
Adjusting Projector Features
107
Projecting Two Images Simultaneously
108
Input Sources for Split Screen Projection
110
Using Multiple Projectors (Duolink)
110
Projector Identification System for Multiple Projector Control
111
Setting the Projector ID
111
Setting the Remote Control ID
112
Adjusting Color Uniformity
113
Adjusting the Lamp's Brightness
114
Matching the Image Colors
116
Adjusting RGBCMY
117
Shutting off the Picture and Sound Temporarily
119
Stopping Video Action Temporarily
119
Zooming into and out of Images
120
Projector Security Features
121
Password Security Types
121
Setting a Password
121
Selecting Password Security Types
123
Entering a Password to Use the Projector
124
Saving a User's Logo Image to Display
125
Locking the Projector's Buttons
127
Unlocking the Projector's Buttons
128
Installing a Security Cable
128
Creating a User Pattern to Display
128
Copying Menu Settings between Projectors
129
Saving Settings to a USB Flash Drive
130
Transferring Settings from a USB Flash Drive
131
Saving Settings to a Computer
132
Transferring Settings from a Computer
133
Adjusting the Menu Settings
135
Using the Projector's Menus
135
Image Quality Settings - Image Menu
137
Input Signal Settings - Signal Menu
139
Projector Feature Settings - Settings Menu
142
Projector Setup Settings - Extended Menu
146
Projector Network Settings - Network Menu
151
Projector Setup Settings - ECO Menu
153
Projector Information Display - Info Menu
155
Event ID Code List
156
Projector Reset Options - Reset Menu
157
Maintaining and Transporting the Projector
159
Projector Maintenance
159
Cleaning the Projection Window
159
Cleaning the Obstacle Sensor
160
Cleaning the Projector Case
161
Air Filter and Vent Maintenance
161
Cleaning the Air Filter and Vents
161
Replacing the Air Filter
166
Projector Lamp Maintenance
168
Replacing the Lamp
169
Resetting the Lamp Timer
173
Replacing the Remote Control Batteries
174
Transporting the Projector
176
Solving Problems
177
Projection Problem Tips
177
Projector Light Status
178
Using the Projector Help Displays
181
Solving Image or Sound Problems
181
Solutions When no Image Appears
182
Solutions When Image Is Incorrect Using the USB Display Function
183
Solutions When "No Signal" Message Appears
183
Displaying from a PC Laptop
184
Displaying from a Mac Laptop
184
Solutions When "Not Supported" Message Appears
184
Solutions When Only a Partial Image Appears
185
Solutions When the Image Is Not Rectangular
185
Solutions When the Image Contains Noise or Static
186
Solutions When the Image Is Fuzzy or Blurry
187
Solutions When the Image Brightness or Colors Are Incorrect
187
Solutions to Sound Problems
188
Solutions to Microphone Problems
189
Solving Projector or Remote Control Operation Problems
189
Solutions to Projector Power or Shut-Off Problems
189
Solutions to Problems with the Remote Control
190
Solutions to Password Problems
191
Solutions When Network Alert E-Mails Are Not Received
191
Where to Get Help
192
Technical Specifications
194
General Projector Specifications
194
Projector Lamp Specifications
196
Remote Control Specifications
197
Projector Dimension Specifications
197
Projector Electrical Specifications
197
Projector Environmental Specifications
199
Projector Safety and Approvals Specifications
200
Supported Video Display Formats
200
USB Display System Requirements
202
Notices
204
Recycling
204
Important Safety Information
204
Important Safety Instructions
205
Restriction of Use
208
List of Safety Symbols (Corresponding to IEC60950-1 A2)
208
FCC Compliance Statement
212
Open Source Software License
212
Binding Arbitration and Class Waiver
259
Trademarks
262
Copyright Notice
262
A Note Concerning Responsible Use of Copyrighted Materials
263
