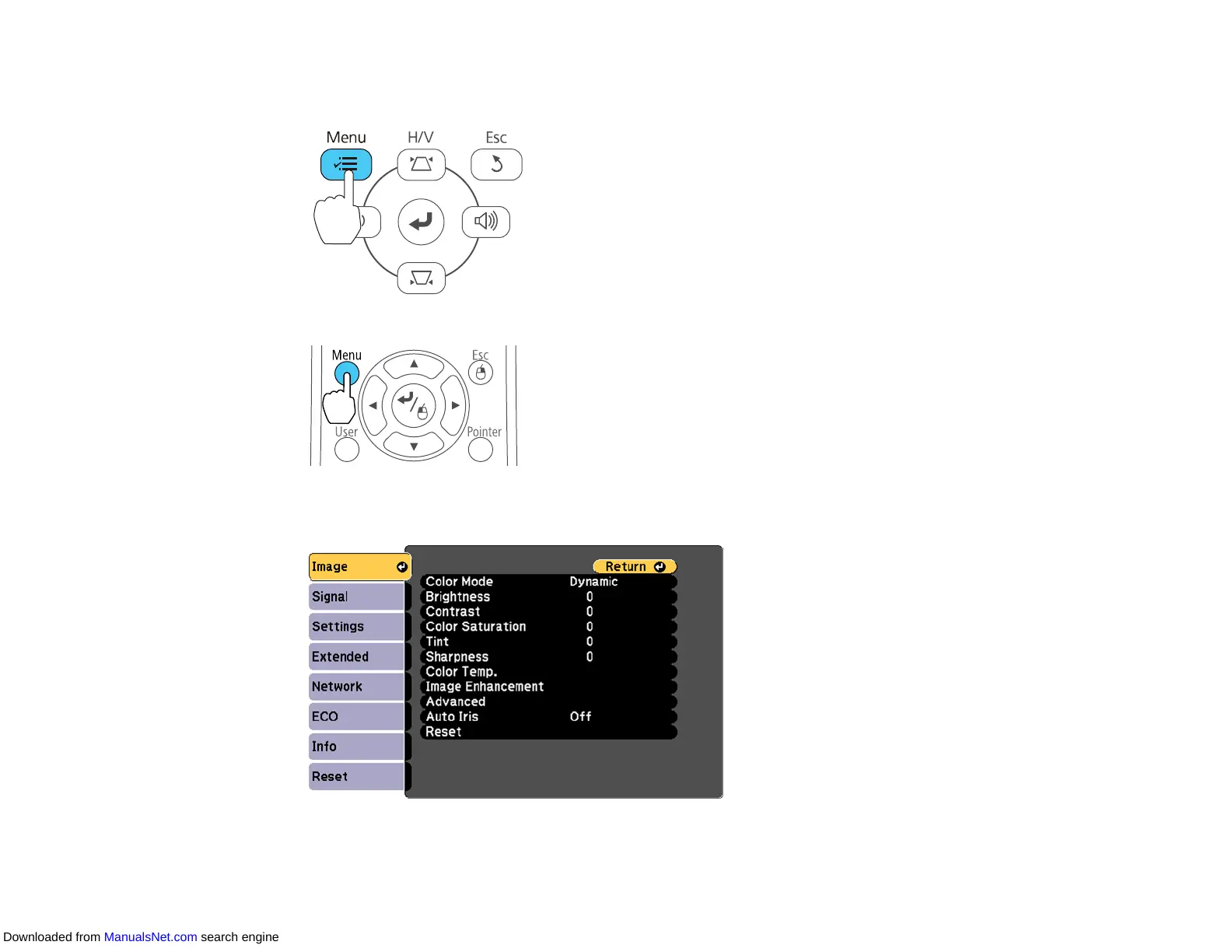

1. Press the Menu button on the control panel or remote control.

You see the menu screen displaying the Image menu settings.
