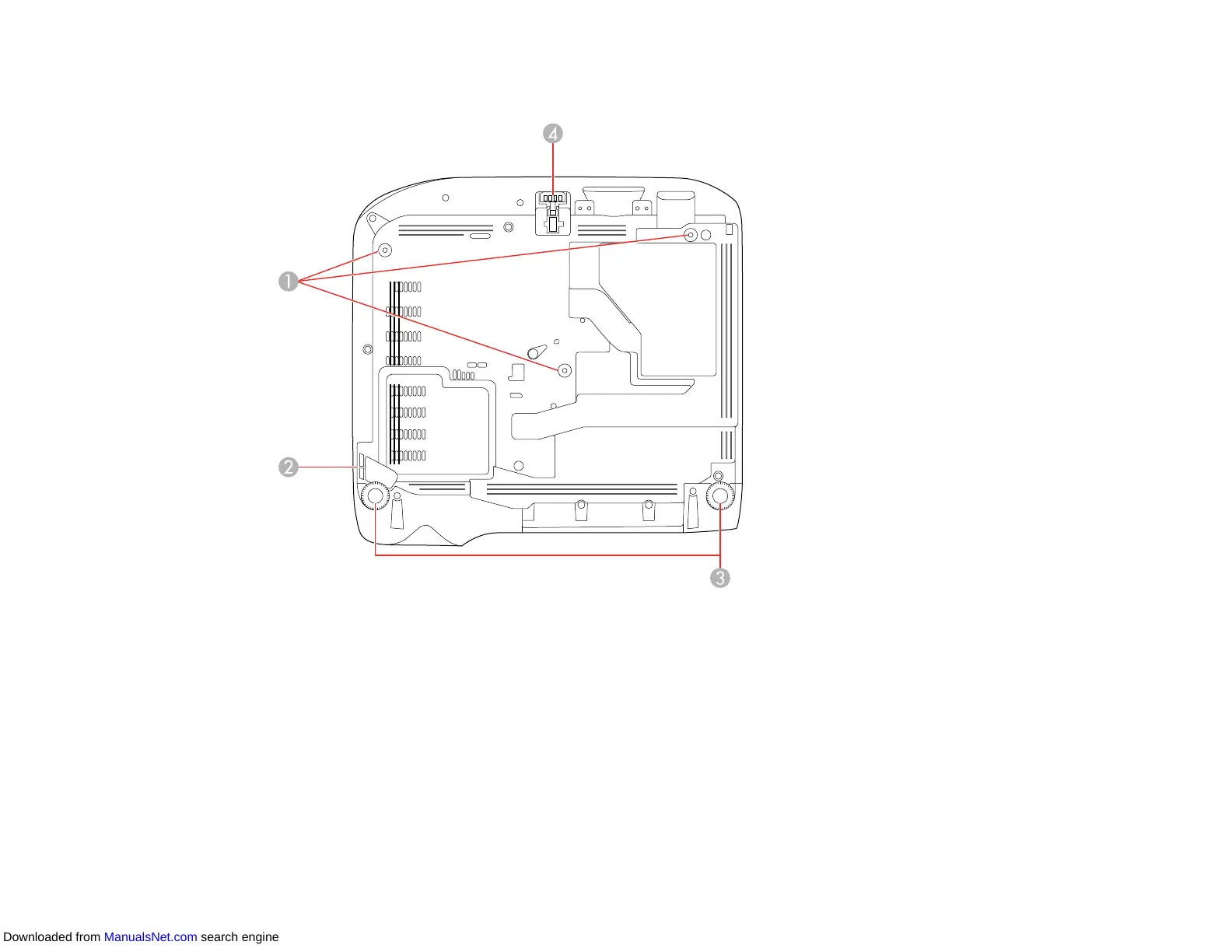

Projector Parts - Base

1 Ceiling mount holes (3)

2 Security cable attachment point

3 Rear feet

4 Front adjustable foot

Parent topic: Projector Part Locations
