Epson PowerLite S39

To Next Page

To Previous Page

169

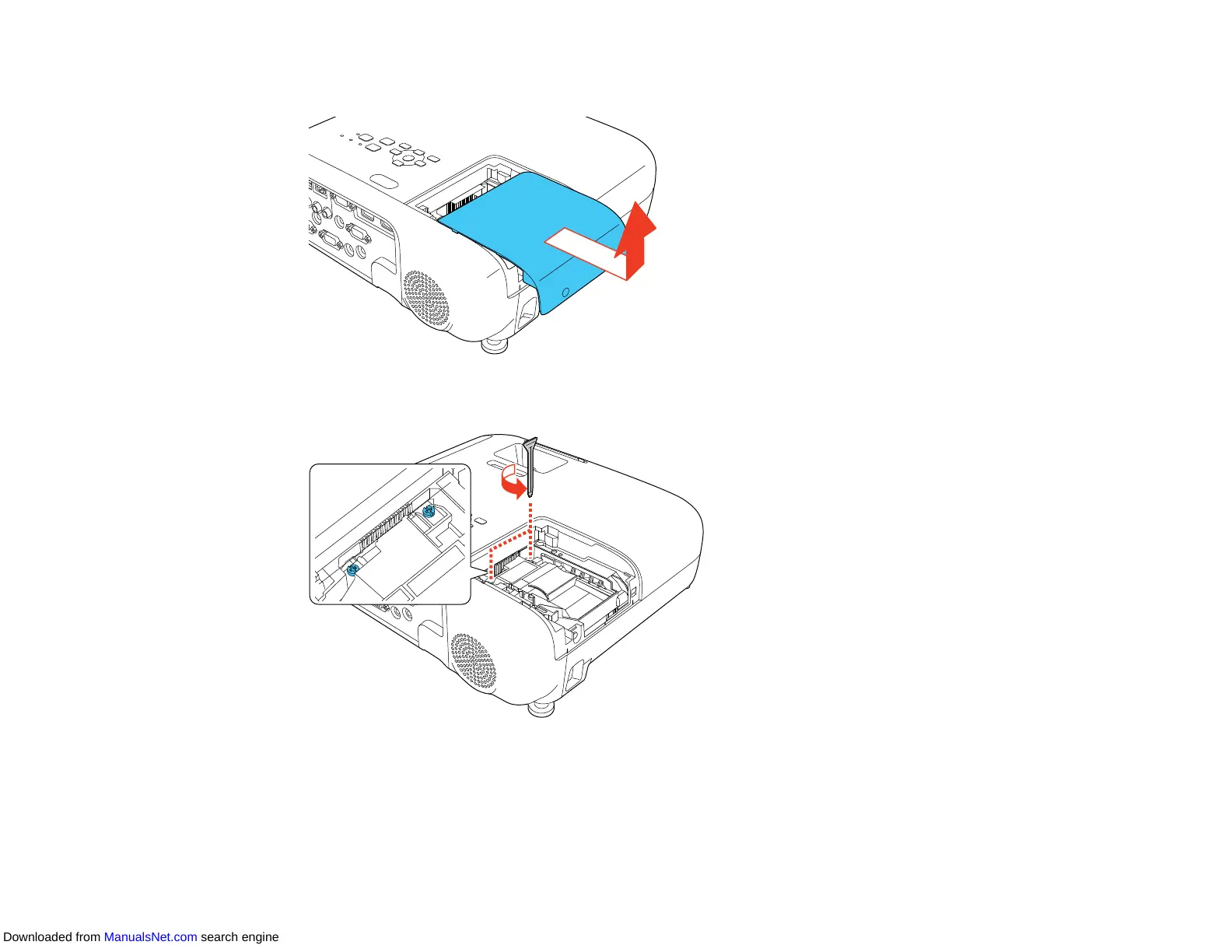

4. Slide the lamp cover out and lift it off.

5. Loosen the screws securing the lamp to the projector. The screws do not come all the way out.
