159

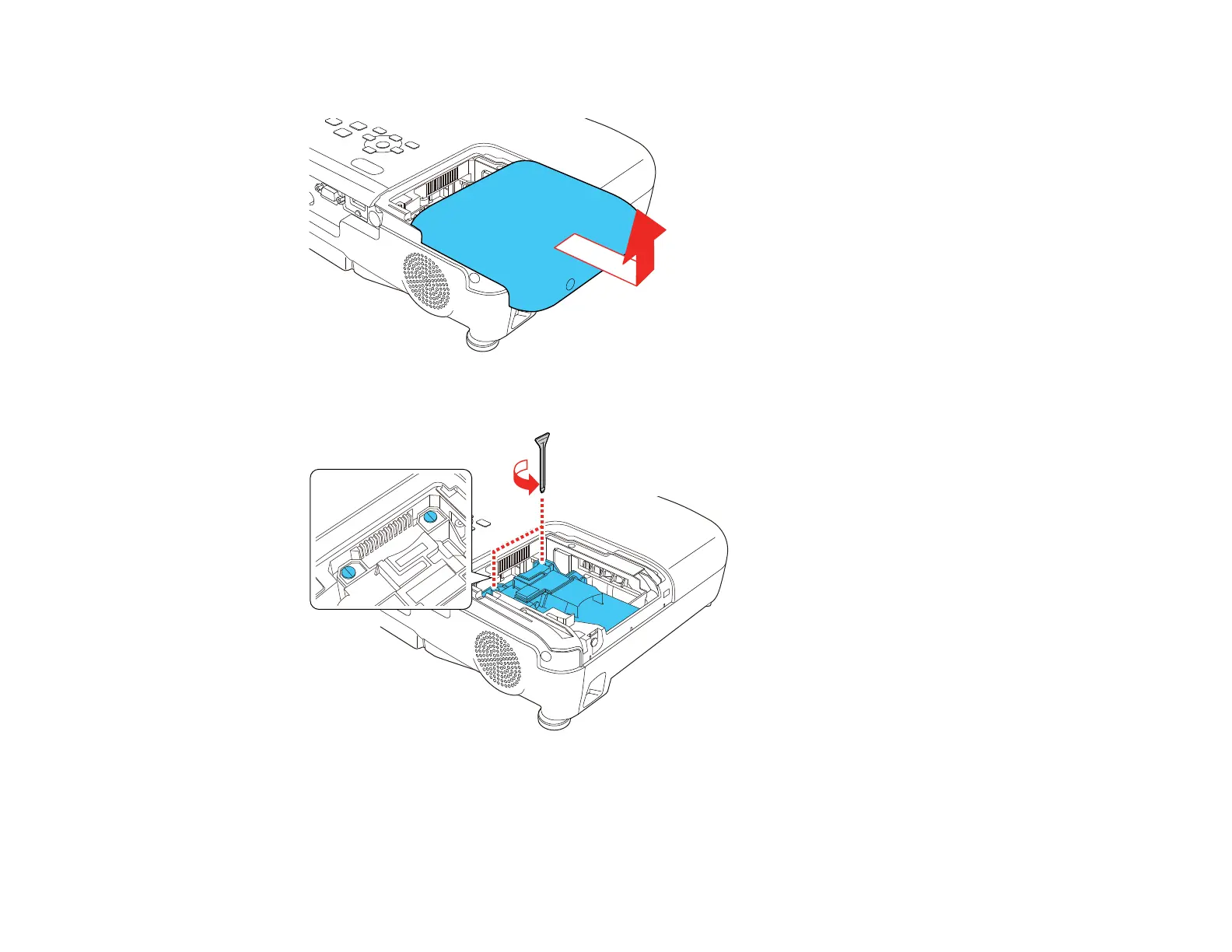

4. Slide the lamp cover out and lift it off.

5. Loosen the screws securing the lamp to the projector. The screws do not come all the way out.
