D

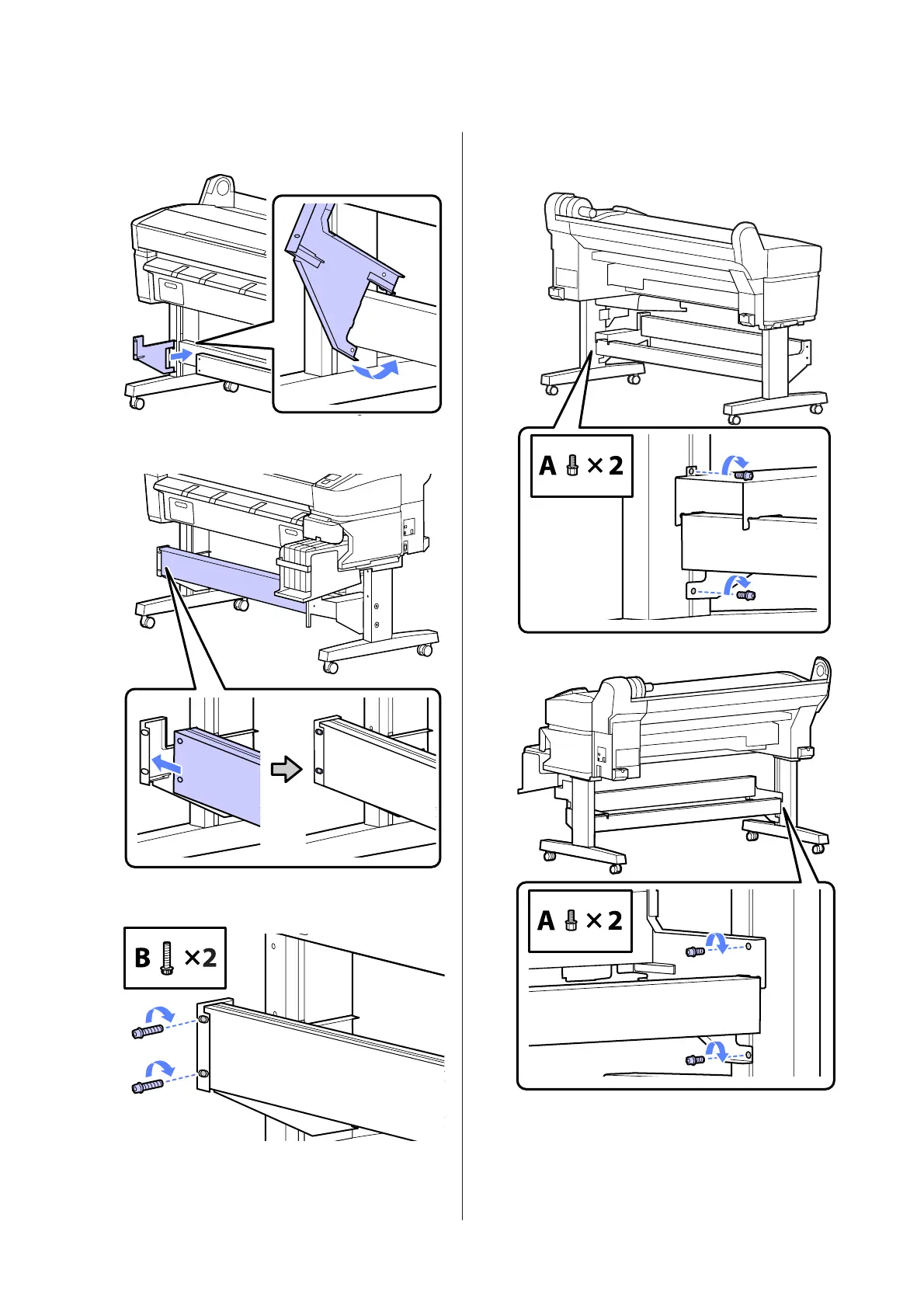

Hook Part L on the stand.
E
Align the screw holes of Part L and the stay.
F
Secure with two B screws.
G
From behind the printer, secure Part L and Part R
with two A screws each.
For the rest of the procedure, see page 10 of the Setup
Guide supplied with the auto take-up reel unit
attachment.
