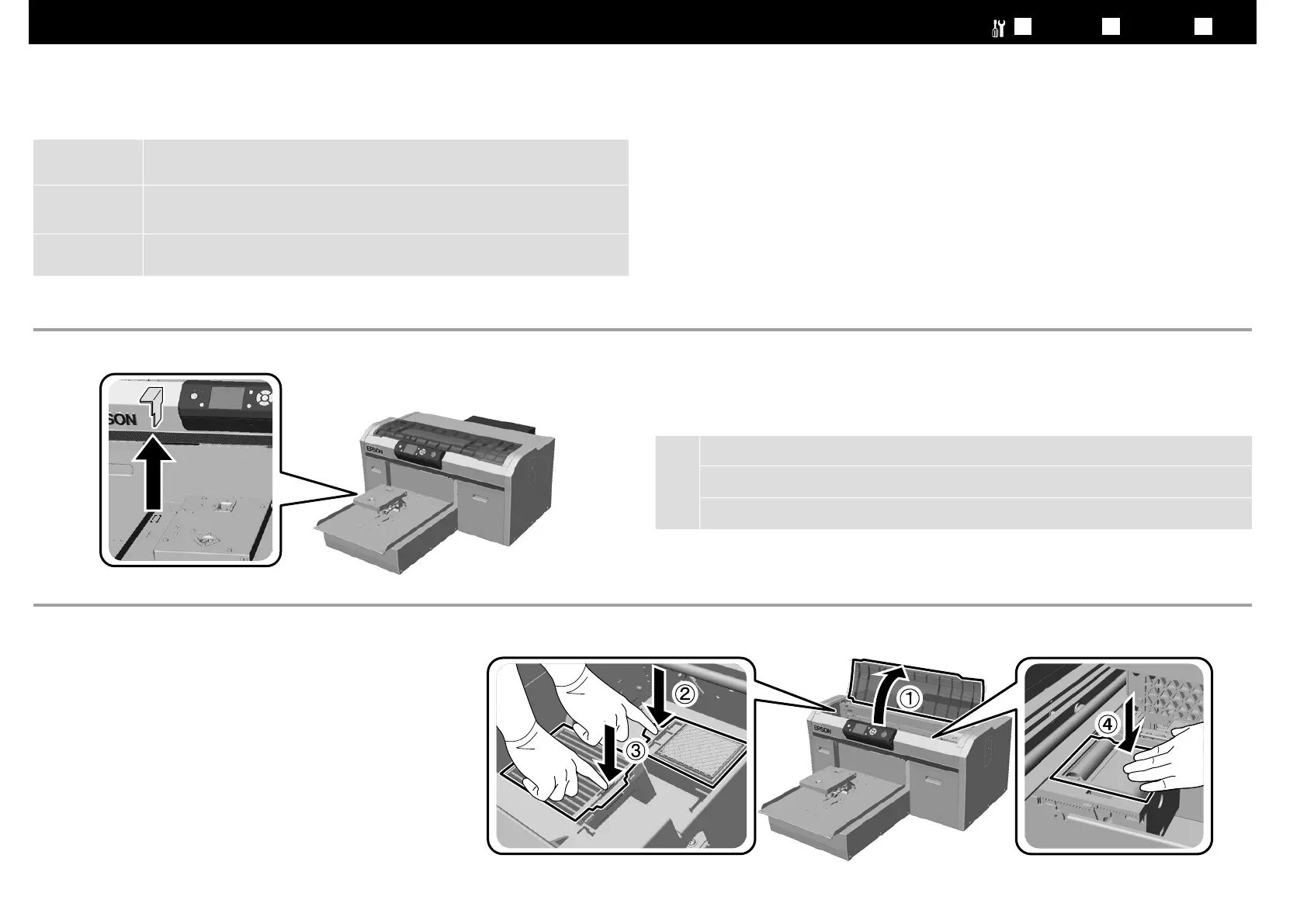

E Movable base
Moves the platen to the print position and the T-shirt loading position.
F Hooks
Use this to hang the frame removed from the platen.
U “Loading on a Platen without a Grip Pad” on page 47
G Platen installation plate
A plate that supports the platen. Insert the platen here.
H Platen gap adjustment lever
Adjusts the distance between the platen and the print head (platen gap). The height can be selected from 17 levels.
U “Adjusting the Platen Gap” on page 53
I Fixing lever
Fixes the platen gap adjustment lever in place. You can adjust the angle of the lever.
U “Adjusting the Platen Gap” on page 53
J Spacer b
Changes the platen gap adjustment range in combination with spacer a.
K Spacer a
L Cartridge cover (right)
Open when replacing or shaking ink cartridges.
U “Shaking and Replacing Ink Cartridges” on page 83
M Tweezer holder
Stores the supplied tweezers. Do not place the tweezers in here when moving or transporting the printer.
N Ink cartridges
Install ink cartridges into all slots.
O USB memory port
Connect the USB memory stick here.
P Control panel
U “Control panel” on page 14
SC-F2100 Series User's Guide
Introduction
9
