Confidential
Disassembly/Assembly Disassembly/Assembly Procedures 10
Epson Stylus NX125/T13/NX130 series Revision F
1.2 Disassembly/Assembly Procedures
This section describes procedures for disassembling the parts/units in a flowchart form. For some parts/units,
detailed procedures or precautions are provided (accordingly indicated by icons and cell's color). Refer to the
explanations in the example chart below and perform an appropriate disassembling and assembling procedure.
(See" 1.3 Details of Disassembling/Assembling by Parts/Unit (p16)".)
For routing cables, see " 1.4 Routing FFC/cables (p21)"

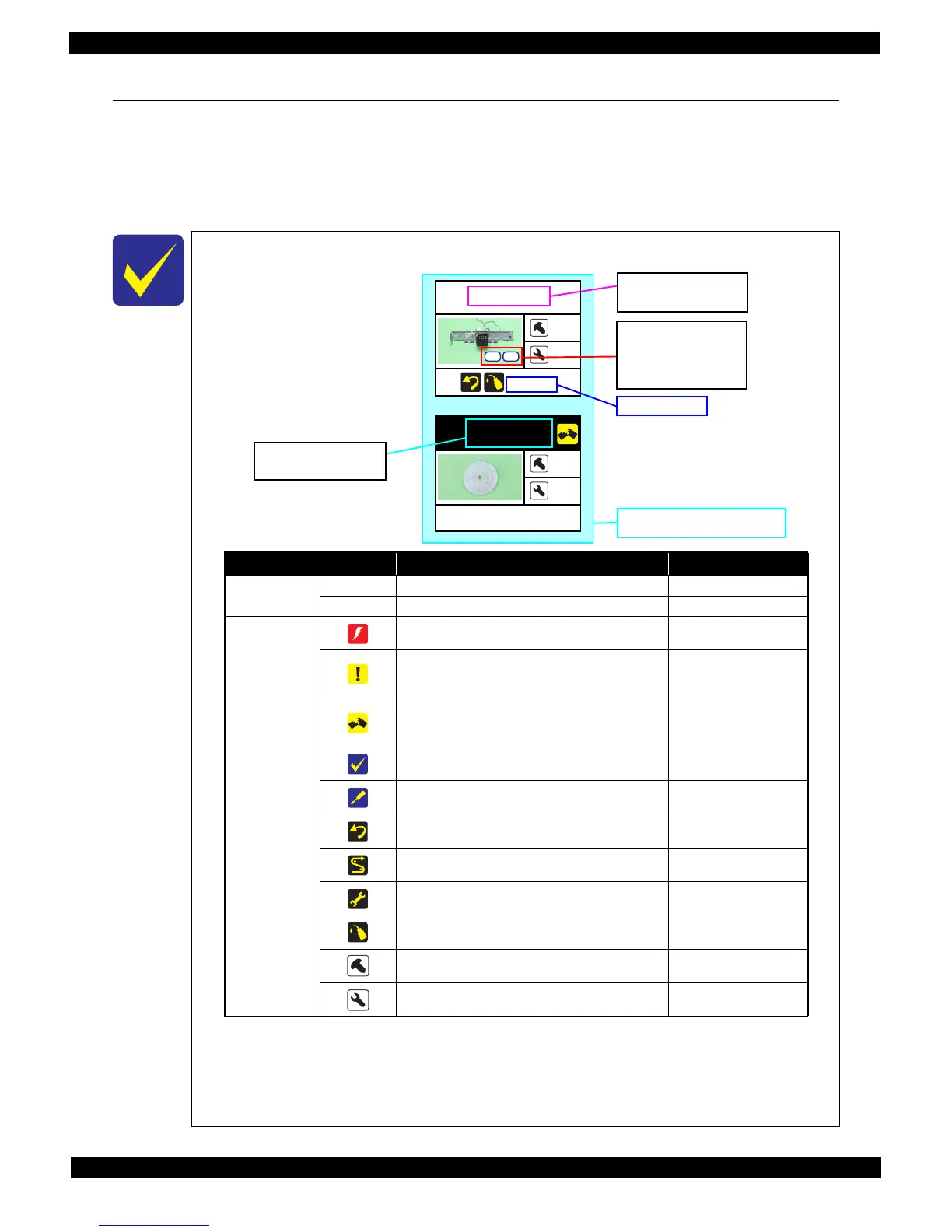

The example below shows how to see the charts on the following pages.
Main Frame
4
5
(p 17, p 29)
S1
S5
EJ Roller Gear
---
---
---
Item Description Reference
Parts/unit name
White-letter
Parts/units supplied as an ASP ---
Black-letter
Parts/units not supplied as an ASP ---
Icon
Indicates a practice or condition that could result in
injury or loss of life if not strictly observed.
Indicates the reference
page in blue-letter
Indicates a practice or condition that could result in
damage to, or destruction of equipment if not strictly
observed.
Indicates the reference
page in blue-letter
Indicates the parts that are inevitably broken in the
disassembling procedure, and should be replaced with
a new one for reassembly.
---
Indicates necessary check items in the disassembling/
assembling procedure.
Indicates the reference
page in blue-letter
Indicates supplementary explanation for disassembly
is given.
Indicates the reference
page in blue-letter
Indicates particular tasks to keep quality of the
components are required.
Indicates the reference
page in blue-letter
Indicates particular routing of cables is required.
Indicates the reference
page in blue-letter
Indicates particular adjustment(s) is/are required.
Chapter 2 " Adjustment
(p23)"
Indicates lubrication is required.
Chapter 3 " Maintenance
(p27)"
Indicates the number of screws securing the parts/
units.
---
Indicates the points secured with other than a screw
such as a hook, rib, dowel or the like.
---
Shows removal/installation as a
unit/assy. is available.
Reference page
White letters indicate a
part/unit supplied as an
ASP.
Black letters indicate a
part/unit not supplied
as an ASP.
Shows the
correspondence to the
screw types and the
specified torque in the
"Screw type/torque list".
